UL listed for fire door Heavy Duty Fireproof Auto Door Closer [700 Series]

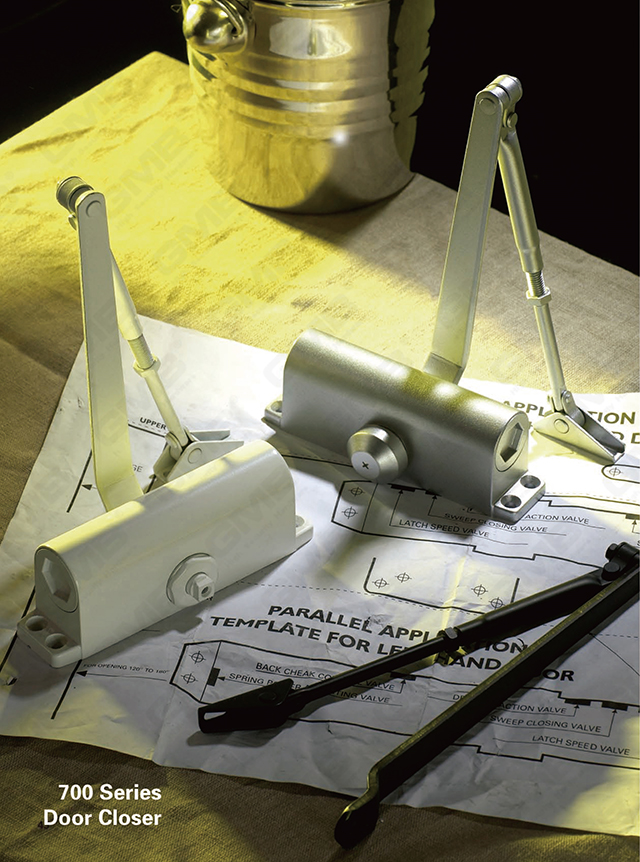

700 Series Door Closer

•      Commercial & Residential use.

•      Two Separate Valves with Adjustable Closing & Latching Speed.

•       Universal Application, Non handed (Suit for Both Right & Left Hand Door).

•       Designed for All Standard Installations.

•       Factory tested to Meet or Exceed ANSI Standard 156.4.

•      5 Years Guarantee.

•      Power Size Range con be Selected from l to 5.

•      Optional Bock -Check(703BC,704BC,705BC)Controlled by Separate Regulation Valve.

Features:

•      Dual Valve. Closing and Latching Speed Controlled by Two Separate Regulating Valves.

•      Standard Pocking for Regular and Top Jamb installation. Parallel Arm Installation Optional. (Parallel Arm Brocket upon Request When Order)

•      Heavy Duty In Silver (Alum), Antique Bronze (Dura) and Gold. Other Color upon Request.

•      UL listed for fire door.

Classification & Glossary

•       702:Size 2

•       703BC:Size 3. With adjustable Bock Check.

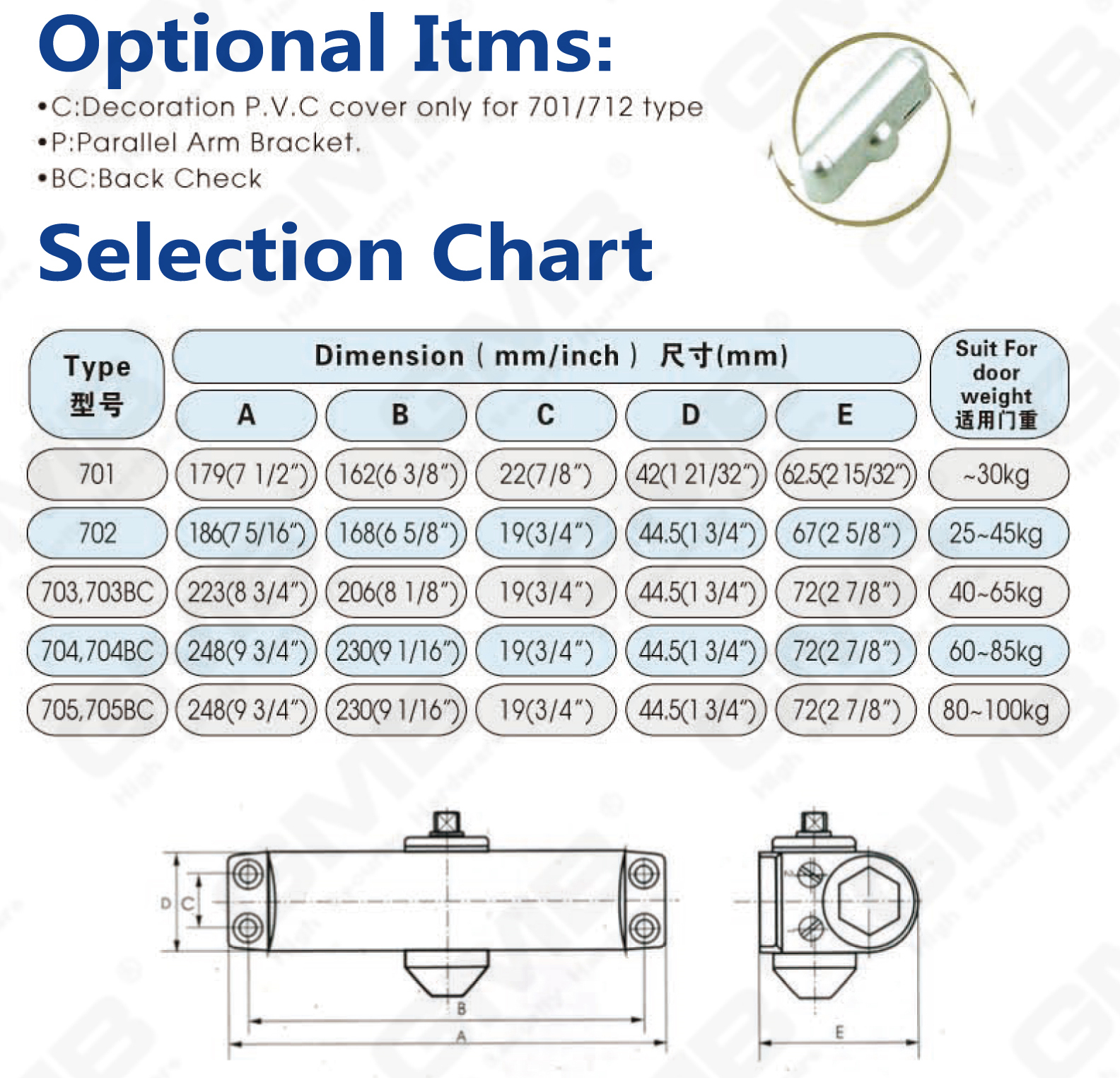

Optional items:

•      C:Decorotion P.V.C cover only for 701/712 type

•      P:Parallel Arm Bracket.

•      BC: Back Check

GMB Door Closer applicable for

Width of door: not more than 1600 mm

Weight of door: under 200 kg

Opening angle: most extension 180 °

Style of door: security door, firedoor, house door, etc

Every model could be installed by these four ways. Accessories are needed for the Parallel Arm Installation and Slide Arm Installation.

Advanced function of GMB door closer:

•      Two speed valves: Closing speed valve 180°- 15° , latching speed valve 15°-0°

•      Build-in hold function:st75°

•      Dual valve. Closing and latching speed controlled by two separate regulating valves.

•      Back check function: Provide you with a temporary stop function between 65°to 180° to help prevent damage to door and or wall in case of the door opens with exercise force.

Delay Action: Delay time easily adjusted in less than l minute between l 80°-65°for the handicapped and elderly.

Barrier Free: With lighter powered spring to provide acceptable door control and lower opening resistance for handicapped and elderly.

Remark:

1. All types hove dual valves for separate closing & latch speed.

2. Standard color: Silver(AL).Bronze(Duro).Gold. Other color upon request.

3. AII types con be applied for parallel arm installation exception built-in hold open type.

4. More products for your choose out of catalogue, and we offer OEM project for new product.

Each door closer with installation instructions & template for your reference.

5. AII the products maybe change, the company reserves right to enter changes and regrettes not to issue prior notification.
