High-Quality Heavy Duty Fireproof Auto Door Closer [100 Series]

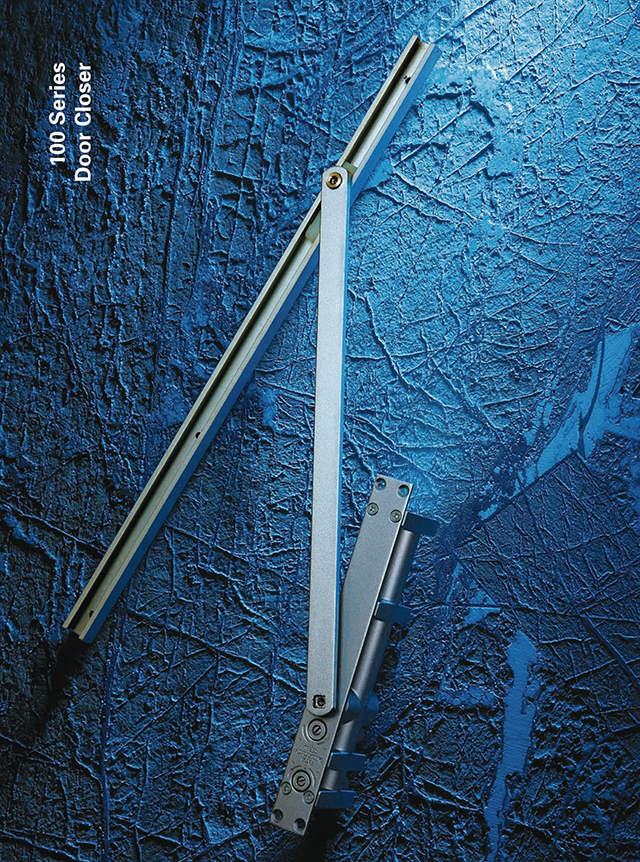

100 Series Door Closer

•        Applicable Doors with 25-45kg for 102(size 2),45-46kg for 103(size 3),The Closing Force: EN 2,EN 3

•        Dual valve, Closing and Latching S peed Controlled by Two Separate Regulating Valve

•        Specially Applied for High-level Hotel and Office.

•        Applicable for Left Hand Door and Right Hand Door

•        Finish : Silver(Alum),Branze(Duro), Gold.

Features:

•        100 series Concealed door Closer, Sometimes. User Calls lf "INVISIBLE" Door Closer.

•        None of the Components of Concealed Door Closer ore Visible When the Door is Closed.

•        100 Series Con be Hidden in almost all Doors Thicker than 40 mm or More and Offers Excellence Performance.

•        Slide Arm is Standard for 100 series.

•        Ideal for Hotel Guest Rooms and Executive Offices

GMB Door Closer applicable for

Width of door: not more than 1600 mm

Weight of door: under 200 kg

Opening angle: most extension 180 °

Style of door: security door, firedoor, house door, etc

Every model could be installed by these four ways. Accessories are needed for the Parallel Arm Installation and Slide Arm Installation.

Advanced function of GMB door closer:

•      Two speed valves: Closing speed valve 180°- 15° , latching speed valve 15°-0°

•      Build-in hold function:st75°

•      Dual valve. Closing and latching speed controlled by two separate regulating valves.

•      Back check function: Provide you with a temporary stop function between 65°to 180° to help prevent damage to door and or wall in case of the door opens with exercise force.

Delay Action: Delay time easily adjusted in less than l minute between l 80°-65°for the handicapped and elderly.

Barrier Free: With lighter powered spring to provide acceptable door control and lower opening resistance for handicapped and elderly.

Remark:

1. All types hove dual valves for separate closing & latch speed.

2. Standard color: Silver(AL).Bronze(Duro).Gold. Other color upon request.

3. AII types con be applied for parallel arm installation exception built-in hold open type.

4. More products for your choose out of catalogue, and we offer OEM project for new product.

Each door closer with installation instructions & template for your reference.

5. AII the products maybe change, the company reserves right to enter changes and regrettes not to issue prior notification.
