ANSI standard Closer Fireproof Auto Door Closer [9000 Series]

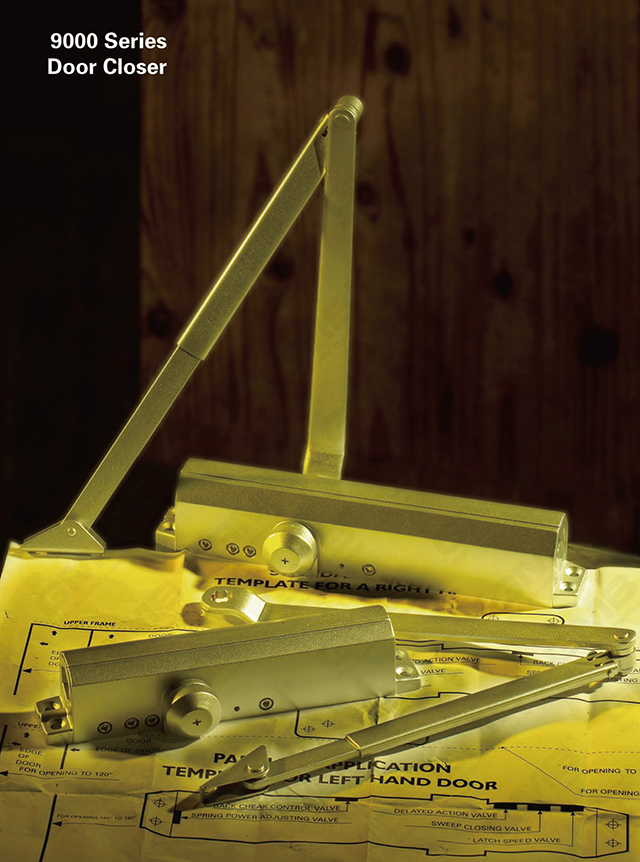

9000 Series Door Closer

•      Commercial & Residential Use. Multi-Size Door Closer. Adjustable Spring Power.

•      Universal Application. Designed tor Standard, Top Jamb. Parallel Arm Installation

•      Closing and Latching Speed Controlled by Two Separate Regulating Valves.

•      Standard Adjustable Back-Check & Delay Action Function.

•      Precision Heavy Duty Rack(Piston)&Pinion Gear.

•      Factory Tested to Meet or Exceed ANSI standard 156.4

•      Optional FULL/SLIM Steel Cover or PVC cover

Features:

•      9024 BC/DA: Non-sized closer with spring power adjustable from size 2 through4, (Barrier Free. DA)

•      9036 BC/DA: Non-sized closer with spring power adjustable from size 3 through6.Suif for 45kg~ 150kg door weight.

•      Dual Valve. Closing and Latching Speed Controlled by Two Separate Regulating Valves.

•      Needle Bearing Application For Smooth Operation.

•      Rock and Pinion Operation Contained in a High Tensile Precision Cast Aluminum Housing for the Highest Quality.

•      High Quality Anti-Freeze Hydraulic Fluid for High lubricity and Constant Lubrication, Suit for Exterior Environment(Temperature-30°C to 40°C)

•      Bock Check Controlled by Separate Regulating valve.

•      Standard Delay Action Controlled by Separate Regulating Valve Standard Packing include Parallel Arm Bracket

•      Available in Block. Silver (Alum), Antique Bronze (Duro) and Gold. Other color upon request.

Classification & Glossary

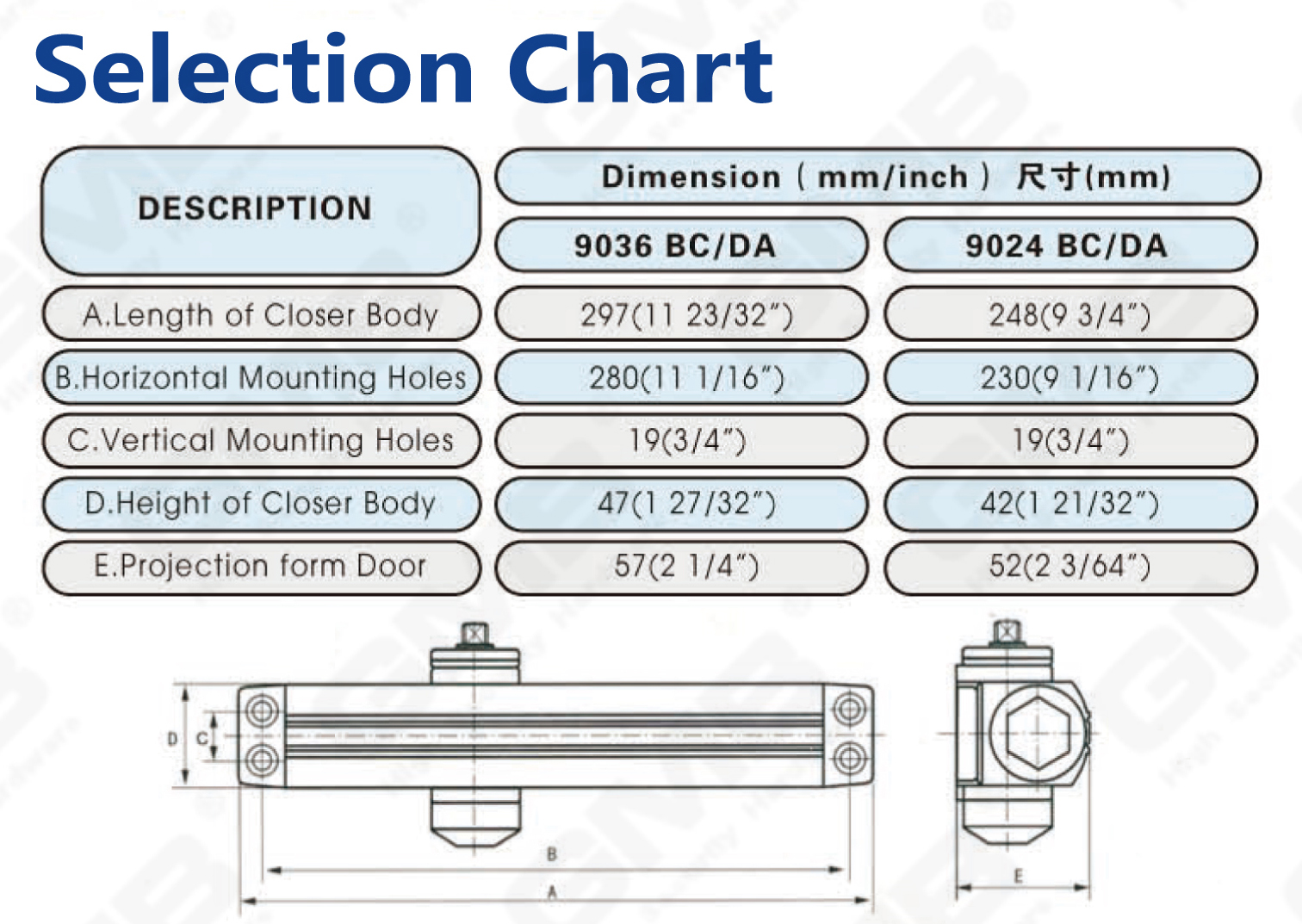

•      9024 BC/DA: Size 2—4           •9036 BC/DA: size 3-6

•      BC: Adjustable Bock Check     • DA: Adjustable Delay Action

COVER: FINISH AVAILABLE in steel cover:

•      Full steel cover

•      Slim steel cover

•      PVC plastic cover

•      Polished Stainless Steel

•      Polished Brass

•      Satin Nickel

GMB Door Closer applicable for

Width of door: not more than 1600 mm

Weight of door: under 200 kg

Opening angle: most extension 180 °

Style of door: security door, firedoor, house door, etc

Every model could be installed by these four ways. Accessories are needed for the Parallel Arm Installation and Slide Arm Installation.

Advanced function of GMB door closer:

•      Two speed valves: Closing speed valve 180°- 15° , latching speed valve 15°-0°

•      Build-in hold function:st75°

•      Dual valve. Closing and latching speed controlled by two separate regulating valves.

•      Back check function: Provide you with a temporary stop function between 65°to 180° to help prevent damage to door and or wall in case of the door opens with exercise force.

Delay Action: Delay time easily adjusted in less than l minute between l 80°-65°for the handicapped and elderly.

Barrier Free: With lighter powered spring to provide acceptable door control and lower opening resistance for handicapped and elderly.

Remark:

1. All types hove dual valves for separate closing & latch speed.

2. Standard color: Silver(AL).Bronze(Duro).Gold. Other color upon request.

3. AII types con be applied for parallel arm installation exception built-in hold open type.

4. More products for your choose out of catalogue, and we offer OEM project for new product.

Each door closer with installation instructions & template for your reference.

5. AII the products maybe change, the company reserves right to enter changes and regrettes not to issue prior notification.
