Why Heavy Doors Need Ball Bearing Hinges？

When a door becomes heavier or is used more frequently, the hinge has to handle more than simply connecting the door to the frame. It must support the door's weight, manage the load around the hinge knuckles, and allow repeated opening and closing without excessive friction or premature wear.

This is why ball bearing hinges are commonly specified for heavy doors, commercial entrances, steel doors, security doors, and other high-use applications. Compared with plain bearing hinges, ball bearing designs use bearings between the knuckles to support the load and provide smoother rotation.

For buyers selecting heavy duty door hinges, the key is to match the hinge construction, bearing design, material, size, quantity, and performance requirements to the complete door assembly.

Quick Answer: Why Do Heavy Doors Need Ball Bearing Hinges?

Heavy doors place greater vertical and mechanical loads on their hinges. A ball bearing hinge uses steel balls between the hinge knuckles to support part of the load while reducing metal-on-metal friction during rotation. This helps a heavy door operate more smoothly and can reduce hinge wear during frequent use.

For light interior doors with limited traffic, a plain bearing hinge may be sufficient. For heavy, oversized, steel, security, or frequently operated doors, a ball bearing door hinge is generally the more appropriate choice.

Ball Bearing Hinge vs Plain Bearing Hinge

The main difference is how the hinge manages movement between its knuckles.

This does not mean that every door needs a ball bearing hinge. The correct choice depends on the door weight, dimensions, usage, hinge size, number of hinges, and applicable project requirements.

How Does a Ball Bearing Hinge Support a Heavy Door?

A door leaf creates a downward load through the hinge assembly. As the door becomes heavier, the hinge has to carry a greater vertical load while the door rotates around the hinge pin.

In a conventional plain bearing hinge, the knuckles rely heavily on the contact between the hinge components and pin. Under higher loads and repeated movement, this metal-on-metal contact can increase friction and wear.

A ball bearing hinge places ball bearings between selected knuckles. The balls support the load and allow the knuckles to move with rolling contact rather than relying entirely on sliding contact.

The result is smoother hinge movement under load and less friction at the bearing points.

This is the main reason ball bearing door hinges are widely used for heavy and high-traffic doors.

What Problems Can an Unsuitable Hinge Cause?

Using a hinge that is not appropriate for the door can create problems over time.

A heavy door with an underspecified hinge may become:

• Harder to open and close

• Noisier during operation

• More prone to hinge wear

• More likely to develop alignment problems

• More difficult to keep properly positioned within the frame

• Subject to increased stress around the hinge and mounting points

Door weight is not the only cause of these problems. Door dimensions, hinge quantity, hinge position, frame alignment, installation accuracy, and operating frequency all contribute to long-term performance.

When Should You Specify a Ball Bearing Hinge?

A ball bearing hinge should generally be specified when several demanding conditions are present.

Heavy Door Leaves

A heavy steel, security, solid-core, or oversized door creates greater loads on the hinge assembly. Ball bearing construction helps manage the load while maintaining smoother movement.

Frequent Door Operation

A door in an office, commercial building, hotel, school, public facility, or service area may be opened hundreds of times during normal operation.

Repeated movement increases the importance of friction control and durability. For high-traffic doors, a commercial door hinge with an appropriate bearing design is often a better choice than a basic light-duty hinge.

Large or Oversized Doors

Door size matters as much as weight. A wide or tall door creates additional leverage around the hinge side.

Even when two doors have similar weights, the larger door can impose different loads on the hinge assembly. Buyers should therefore provide both door dimensions and weight when selecting heavy-duty hardware.

Steel and Security Doors

Steel doors and security doors are common applications for ball bearing hinges because of their relatively high weight and demanding use conditions.

The hinge must be compatible with the door construction and frame while providing sufficient mechanical strength for repeated operation.

How Many Hinges Does a Heavy Door Need?

There is no single hinge quantity that applies to every heavy door. The required number depends on the door height, weight, construction, hinge capacity, and project specification.

As a practical starting point, many standard doors use three hinges, while heavier, taller, or higher-use doors may require four or another configuration specified by the door or hardware manufacturer.

Adding hinges does not automatically make an unsuitable hinge suitable. The hinges must have the correct load capacity, and their positions must be properly planned.

For project orders, buyers should confirm the complete hinge configuration instead of selecting the quantity based on door weight alone.

What Are 2BB and 4BB Hinges?

When purchasing ball bearing hinges, you may encounter terms such as 2BB and 4BB.

These markings generally refer to the number of ball bearing assemblies incorporated into the hinge:

• 2BB — two bearing assemblies

• 4BB — four bearing assemblies

The bearing configuration can affect how the hinge manages load and movement. However, the number of bearings alone does not determine whether a hinge is suitable for a particular door.

Hinge size, material, construction, load capacity, door weight, and the manufacturer's specifications should all be evaluated together.

What About BHMA Grade 1, Grade 2, and Grade 3?

For North American projects, buyers may also encounter BHMA A156.1 and hinge grades.

In general, the grading system is used to distinguish different performance levels for architectural hinges:

• Grade 1 is associated with higher-duty commercial applications.

• Grade 2 is intended for standard-duty applications.

• Grade 3 is generally associated with lighter-duty or residential applications.

The exact hinge specification should always be checked against the applicable standard and manufacturer's test information. A grade should not be used as a substitute for checking the actual door weight, dimensions, frequency of use, and installation conditions.

For distributors and project buyers, understanding terms such as Grade 1 hinges, Grade 2 hinges, 2BB hinges, and 4BB hinges makes it easier to compare different hinge specifications.

Why Stainless Steel Matters in Door Hinges

Bearing design is only one part of hinge selection. Material becomes equally important when the hinge is exposed to moisture, humidity, or other demanding environmental conditions.

Stainless steel door hinges provide corrosion resistance that can make them suitable for applications where ordinary steel may require additional protection.

For example, a project may need both:

• A ball bearing structure for smoother movement under load

• Stainless steel construction for improved corrosion resistance

In such cases, a stainless steel ball bearing hinge can address both requirements.

The appropriate stainless steel grade should still be selected according to the operating environment and project budget.

Understanding #201, #304, and #403 Stainless Steel

GMB's LDL-108 ball bearing hinge is available in #201, #304, and #403 stainless steel options with an SSS finish, or Satin Stainless Steel finish.

The grades serve different material requirements.

#201 Stainless Steel

201 stainless steel is commonly used where cost efficiency is important and the hinge will be installed in relatively controlled indoor environments.

It can be suitable for projects where extreme corrosion resistance is not the primary requirement.

#304 Stainless Steel

304 stainless steel is widely used when stronger corrosion resistance is required. It is a common choice for demanding indoor environments, humid locations, and applications where longer-term resistance to corrosion is an important consideration.

For buyers comparing stainless steel door hardware, 304 is often selected when environmental exposure is more demanding.

#403 Stainless Steel

403 is a martensitic stainless steel grade with higher hardness and magnetic properties. In hinge construction, different stainless steel grades may be assigned to different components depending on the manufacturer's design and performance requirements.

For a specific hinge, buyers should confirm the material allocation and technical specification with the manufacturer rather than assuming that every component uses the same stainless steel grade.

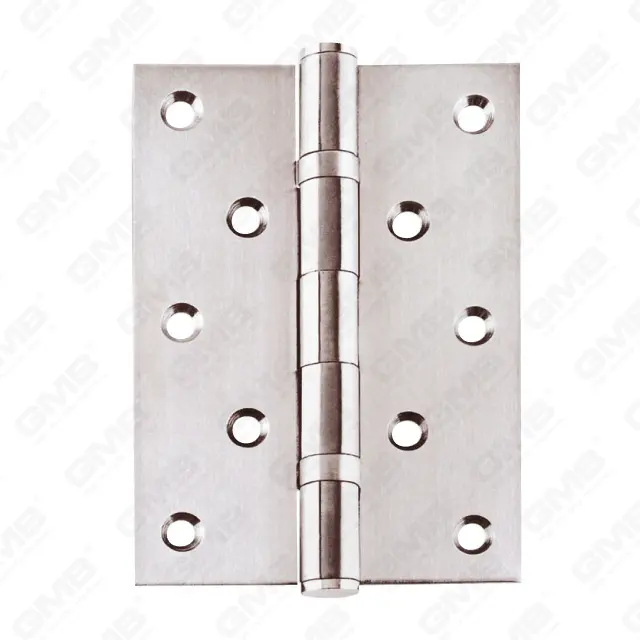

LDL-108 Stainless Steel Ball Bearing Hinge for Security Doors

Wuxi GMB International Corporation offers the High Quality Security Stainless Steel Ball Bearing Butt Door Hinge LDL-108 for security door hardware applications.

The LDL-108 is designed with a ball bearing structure and is available in #201, #304, and #403 stainless steel grades. It is supplied with an SSS (Satin Stainless Steel) finish.

For distributors, importers, OEM customers, and project buyers, the LDL-108 can be evaluated according to the actual door weight, door dimensions, operating frequency, material requirements, and installation environment.

Rather than selecting a hinge simply because it is described as "heavy duty," buyers should confirm whether the hinge's actual specifications match the intended door assembly.

What Should Buyers Check Before Ordering?

Before ordering ball bearing hinges for a heavy door, confirm the following information:

1. Door Weight

Provide the actual weight of the complete door leaf, including permanently attached hardware where applicable.

2. Door Dimensions

Height, width, and thickness affect the load placed on the hinges. Oversized doors may require additional consideration even when their total weight is not exceptionally high.

3. Door Construction

Steel, solid-core, security, and other heavy constructions can have different hinge requirements.

4. Usage Frequency

A low-traffic interior door and a commercial entrance do not experience the same number of operating cycles.

5. Hinge Quantity

Confirm whether the project requires three, four, or another number of hinges based on the door and hardware specifications.

6. Hinge Size and Bearing Configuration

Check the hinge dimensions and whether the design uses 2BB, 4BB, or another bearing configuration.

7. Material and Finish

Consider whether #201, #304, or another stainless steel grade is appropriate for the environment. Confirm whether the required appearance is SSS or another finish.

8. Applicable Standards

For commercial and architectural projects, confirm the required BHMA, ANSI, fire-door, accessibility, or other applicable specifications before finalizing the hardware.

9. Installation Conditions

Even a correctly specified hinge can perform poorly if the door frame is misaligned or the hinge positions are inaccurate. Proper installation is essential for smooth operation.

Why Choose GMB for Ball Bearing Door Hinges?

Wuxi GMB International Corporation has more than 15 years of experience in the hardware locks industry and serves distributors, importers, OEM customers, and project buyers across multiple international markets.

GMB's product range includes door locks, cylinders, handles, padlocks, hinges, ball bearing slides, and other hardware products.

For buyers sourcing heavy duty door hinges, stainless steel hinges, or related door hardware, GMB can provide different specifications for different project requirements.

The LDL-108 gives buyers a stainless steel ball bearing hinge option for security door applications, with #201, #304, and #403 material choices and an SSS finish.

FAQ

What is the difference between a plain bearing hinge and a ball bearing hinge?

A plain bearing hinge relies mainly on the interaction between its knuckles and hinge pin, while a ball bearing hinge incorporates ball bearings between the knuckles. The bearings help reduce friction and support smoother movement under load.

Are ball bearing hinges better for heavy doors?

Generally, yes. Ball bearing hinges are designed to handle the friction and load associated with heavier or frequently operated doors more effectively than many basic plain bearing hinges.

The complete hinge specification must still match the door's weight, dimensions, construction, and usage.

How many ball bearing hinges does a heavy door need?

Three hinges are common for many standard doors, while taller, heavier, or high-use doors may require four or another configuration. The correct quantity depends on the door and hinge specifications rather than weight alone.

What does 2BB mean on a door hinge?

2BB generally means the hinge contains two ball bearing assemblies. 4BB generally refers to four bearing assemblies. These markings help buyers understand the bearing configuration, but they should be evaluated together with hinge size, material, load capacity, and application.

Are stainless steel ball bearing hinges suitable for security doors?

They can be suitable when the hinge's load capacity, dimensions, material, mounting configuration, and other specifications match the security door. Stainless steel can also be advantageous where corrosion resistance is required.
