Choosing between ball bearing hinges and plain bearing hinges affects door operation, maintenance, and hardware compliance. For commercial entrances, high-traffic doors, and fire-rated door assemblies, bearing design and verified performance specifications matter. For standard interior doors, a plain bearing butt hinge may offer a more economical solution.
A ball bearing hinge contains small steel balls between the hinge knuckles. These bearings reduce friction as the knuckles rotate around the pin, supporting smoother movement and reducing wear during repeated operation.
Ball bearing butt hinges are suitable for frequent-use doors, heavier door assemblies when properly rated, and applications where a door closer increases operating demands. For labeled fire doors, the hinge must meet the applicable fire-door requirements and the assembly manufacturer's specifications.
A plain bearing hinge has knuckles that rotate directly on the pin without ball bearings. Its simpler construction can make it a cost-effective choice for lightweight interior doors, bedrooms, and closets with moderate operating demands.
However, plain bearing hinges are not automatically unsuitable for every heavy door, nor are all ball bearing hinges heavy-duty. Door weight, hinge dimensions, material thickness, construction, and tested load ratings determine suitability.
Selection factor | Ball bearing hinges | Plain bearing hinges |
|---|---|---|
Operating mechanism | Balls reduce friction between moving components | Knuckles rotate directly on the pin |
Frequent operation | Well suited to repeated opening and closing | Best matched to the product's rated duty |
Wear and maintenance | Bearing design can reduce friction-related wear | Wear depends on material, fit, lubrication, and usage |
Typical applications | Commercial entrances, high-traffic doors, suitable fire-door assemblies | Bedrooms, closets, and other standard interior doors |
Initial cost | Generally higher | Generally lower |
Fire-door applications | Commonly specified where applicable requirements call for bearing hinges | Use only where the approved door assembly and applicable requirements permit them |
The practical choice is straightforward: prioritize ball bearing hinges when frequent operation, friction reduction, or applicable fire-door requirements make bearing performance important. Choose plain bearing hinges for less demanding applications when their rated performance meets the project specifications.
Hinge size alone does not establish how much weight a door can support. Door height, width, thickness, construction, hinge gauge, fasteners, frame strength, and opening frequency all affect the selection.
The following table provides an initial sizing reference, not a guaranteed load-capacity chart.
Nominal hinge size | Typical selection context |
|---|---|
3 inch | Lightweight interior doors, subject to the product rating |
3.5 inch | Common residential interior doors |
4 inch | Many standard or heavier residential doors |
5 inch | Larger or heavier doors when the hinge is appropriately rated |
6 inch | Specialized heavy-duty or oversized applications, subject to testing and manufacturer guidance |
How many hinges per door? Two hinges may be sufficient for some lightweight doors, while three are common for standard full-size doors. Taller, heavier, wider, or frequently used doors may require additional hinges. A door over approximately 2,030 mm (80 inches) high or weighing more than 60 kg should trigger a closer review of the manufacturer's hinge schedule rather than an automatic assumption that three hinges will suffice.
Always follow the hinge manufacturer's rated load capacity, installation instructions, and the door manufacturer's requirements. For labeled fire doors, maintain the hinge type, number, size, and positions required by the approved assembly.
Material grade matters when selecting stainless steel butt hinges for different environments.
201 stainless steel: A potential economical option for dry indoor environments where the specified corrosion resistance is adequate.
304 stainless steel: A common general-purpose choice for residential and commercial hardware exposed to ordinary indoor conditions and some moisture.
316 stainless steel: Often preferred for coastal locations, swimming pool areas, and environments exposed to chlorides, subject to the actual exposure conditions.
A satin stainless steel finish provides a consistent appearance, but the finish alone does not establish corrosion resistance. Buyers should verify the stainless steel grade, pin and bearing materials, and finish specifications.
For North American projects, ANSI/BHMA A156.1 covers butt hinges and hinges, including testing for cycle performance, wear, friction, strength, materials, and dimensions. Buyers should specify the required grade and verify the actual product's certification or test documentation. Grade classifications should not be assumed from appearance or hinge type alone.
Fire-rated doors require additional attention. Depending on the applicable code and approved assembly, bearing hinges may be required. Confirm the door listing, hinge specification, and installation instructions before purchasing replacement hardware or selecting hinges for a new project.

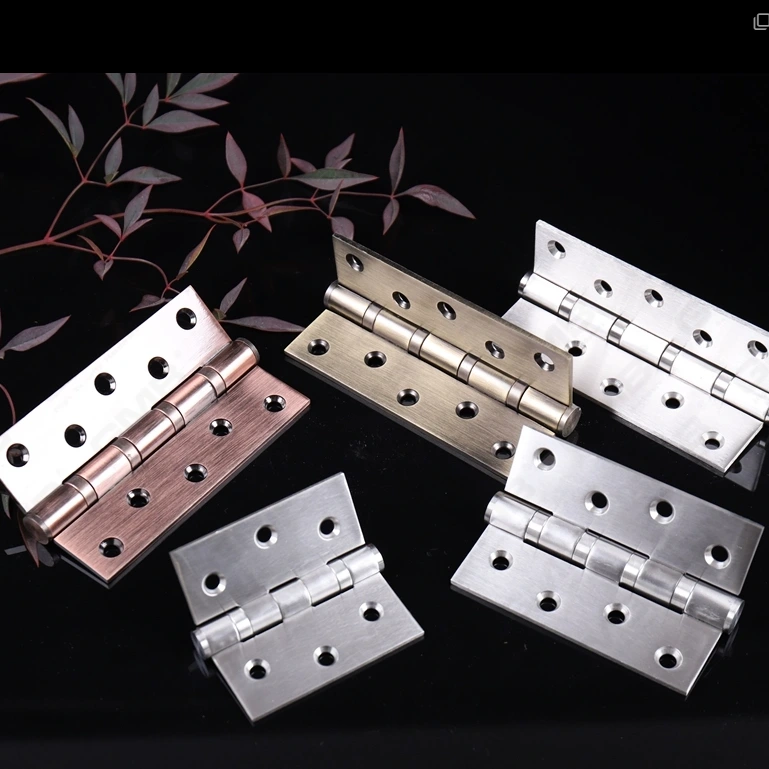

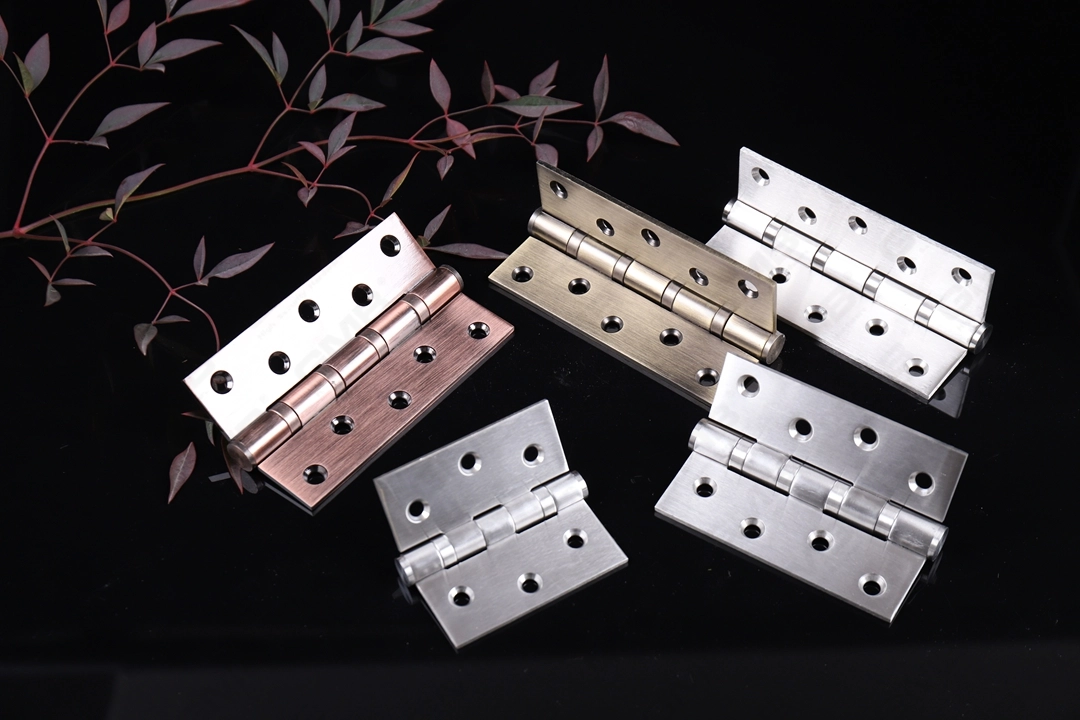

The GMB High Quality Security Stainless Steel Ball Bearing Butt Door Hinge LDL-108 is an option for buyers sourcing stainless steel ball bearing butt hinges for door hardware projects. Its available stainless steel material options and satin stainless steel finish provide flexibility when matching material and appearance requirements.
For wholesale and project procurement, specify the required hinge dimensions, stainless steel grade, finish, door application, and applicable performance requirements. Confirm that the selected LDL-108 configuration meets the project's load and installation requirements before final approval.
Request a quotation, product specifications, or sample information from GMB. Share the door dimensions, approximate weight, operating frequency, installation environment, and required standards to help identify a suitable hinge configuration for your order.
Ball bearing hinges can reduce friction-related wear during frequent operation. Actual service life depends on construction, materials, installation, maintenance, and operating conditions.
Only when the specific hinge is rated for the door's weight, dimensions, and operating conditions, and the application permits that hinge type. Check the manufacturer's load rating rather than relying on hinge size alone.
The required quantity depends on door height, weight, width, construction, and hardware specifications. Three hinges are common on standard full-size doors, but heavier or taller doors may require a different configuration. Fire-rated assemblies must follow their approved hinge schedule.
