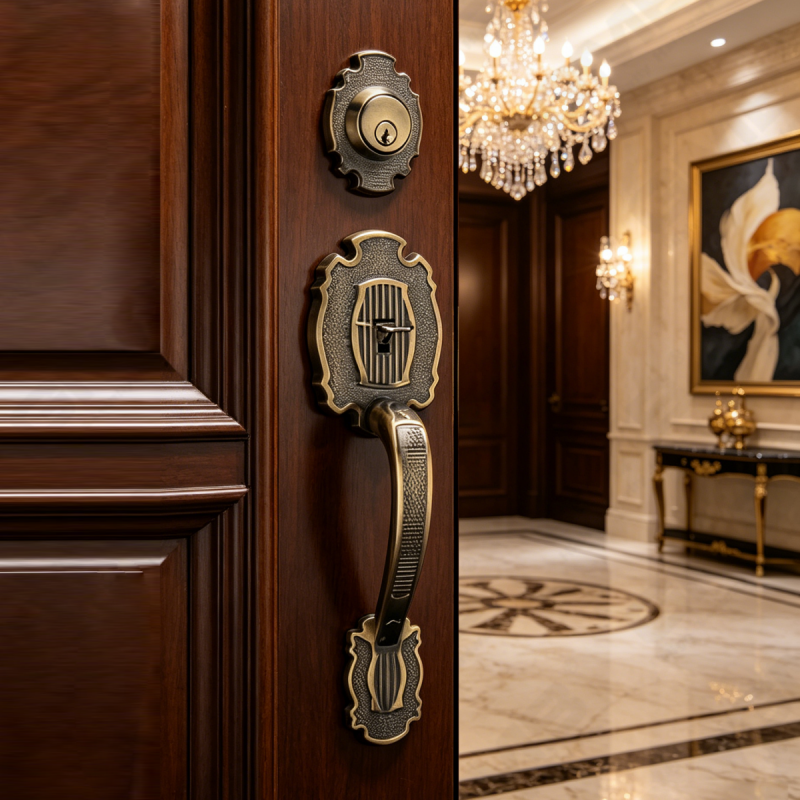

New Design Grip Entry Door Handle Set Entry Door Levers Lock Sets （70719）
| Quantity: | |
|---|---|
-
70719
HANDLE SET SERIES
item no. :70719
Material: Zinc alloy
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-55mm
Suitable for: Wooden doors and steel doors
Quality grade: ANSI / BHMA A156.2-2011 Grade 3
Options：
1. Rosette: Round & Square inner rosette for options
2. Turn-piece: Short (refer to below) & Long type (refer to 1)
3. Inner trim: Knob & lever handle available
Definition of door opening direction:
Left Open:
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open:
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door:
With Two doors In On Door Frame.
Door lock Function Available | |
Code | Description |
ET | Entrance function |
BK | Privacy(privacy)function |
PS | Passage function |
DL | Dummy function |
ST | Storeroom(hotel)function |
BL | Privacy(pricacy)with indicator function |
CK | Construction key function |
CR | Classroom function |
DC | Double cylinders function |
KA | Keyed-alike function |
MK | Master key function |
