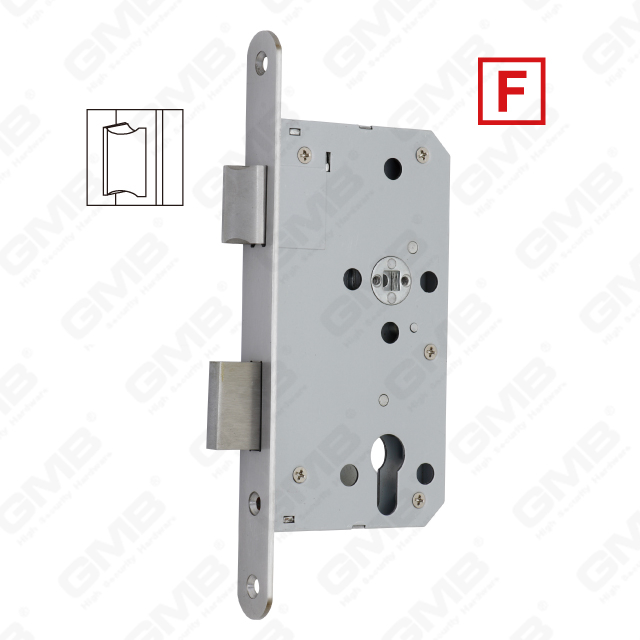

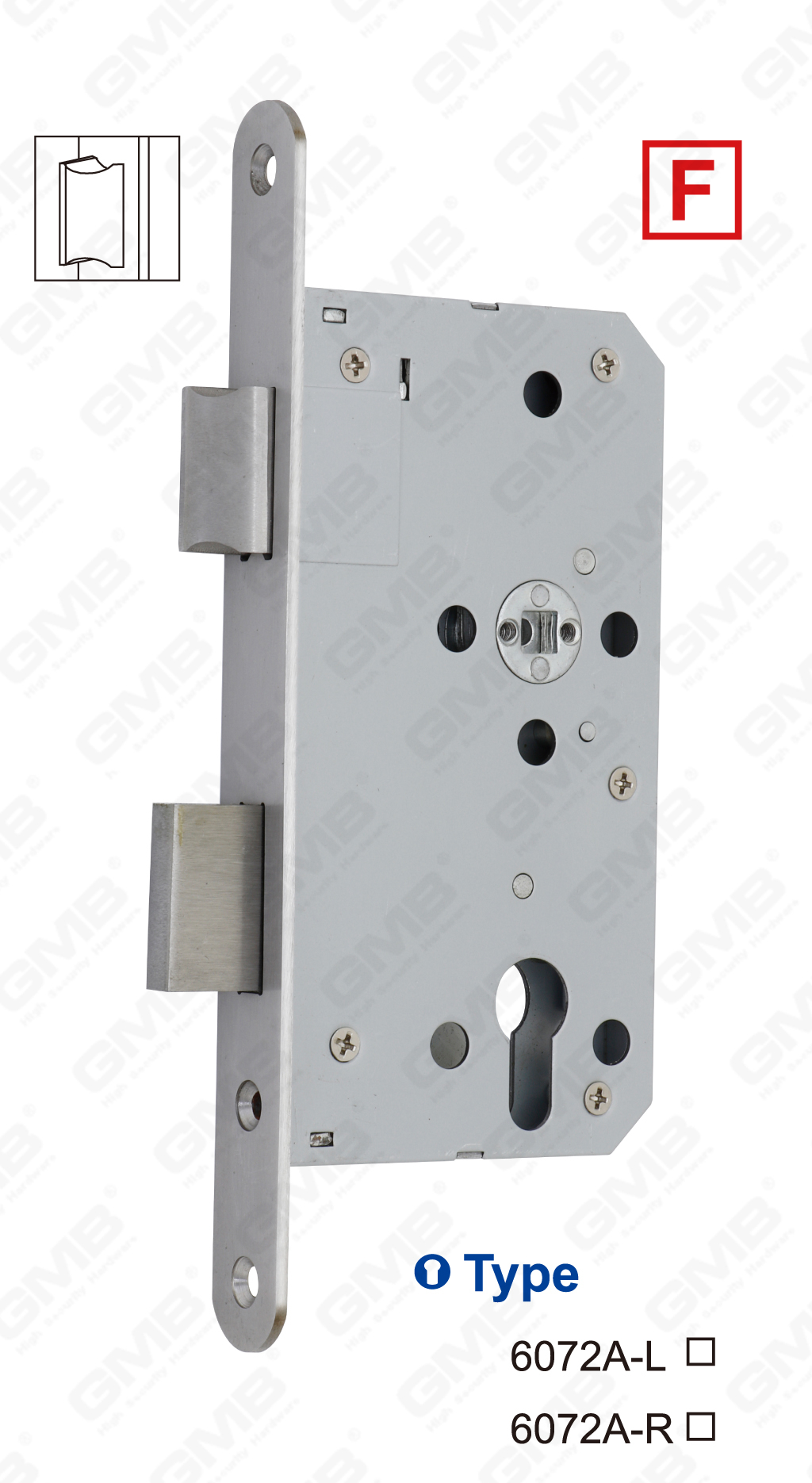

Art No.6072A-L/R

- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year

Features

According to DIN 18.250 class 3

For wooden or steel doors

Suitable for external fire and smoke protection doors

Prepared for profile cylinders

With key action

Deadbolt 1-turns

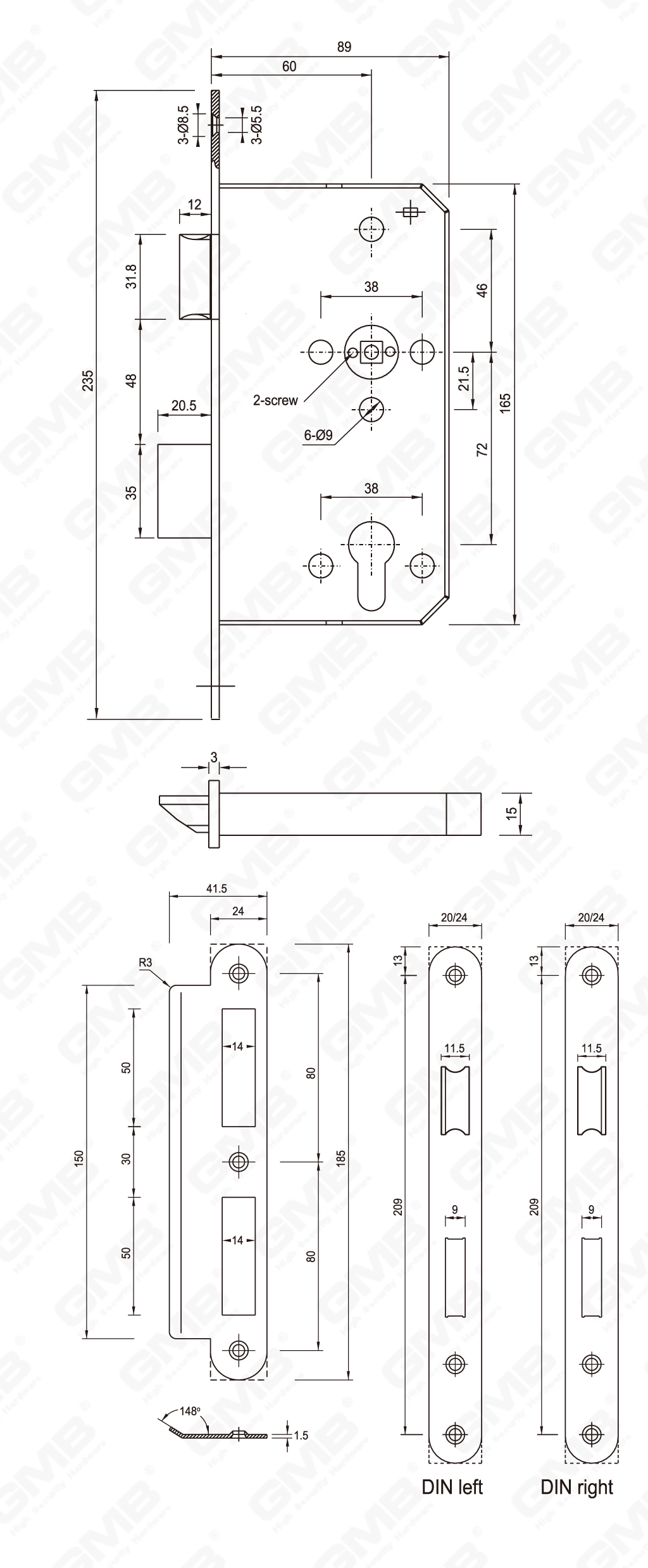

Technical data

Follower:8x8mm

Distance:72mm

Backset:60mm

Forend

Type:round head, square head

Thickness:3mm

Width:20,24mm

Forend finish

Stainless steel:SSS PSS PVD

Accessories

Strike plate

Pocket

Lock and strike plate fixing screws

Function of use:

The lever/ Knob outside is at natural state,

When unlocked the door can be operated from outside by using key.

When unlocked the door can be operated from inside without key by pushing touchbar/handle,

the Escape side is in accord with Opening direction

The transformation of inside and outside by lockbody

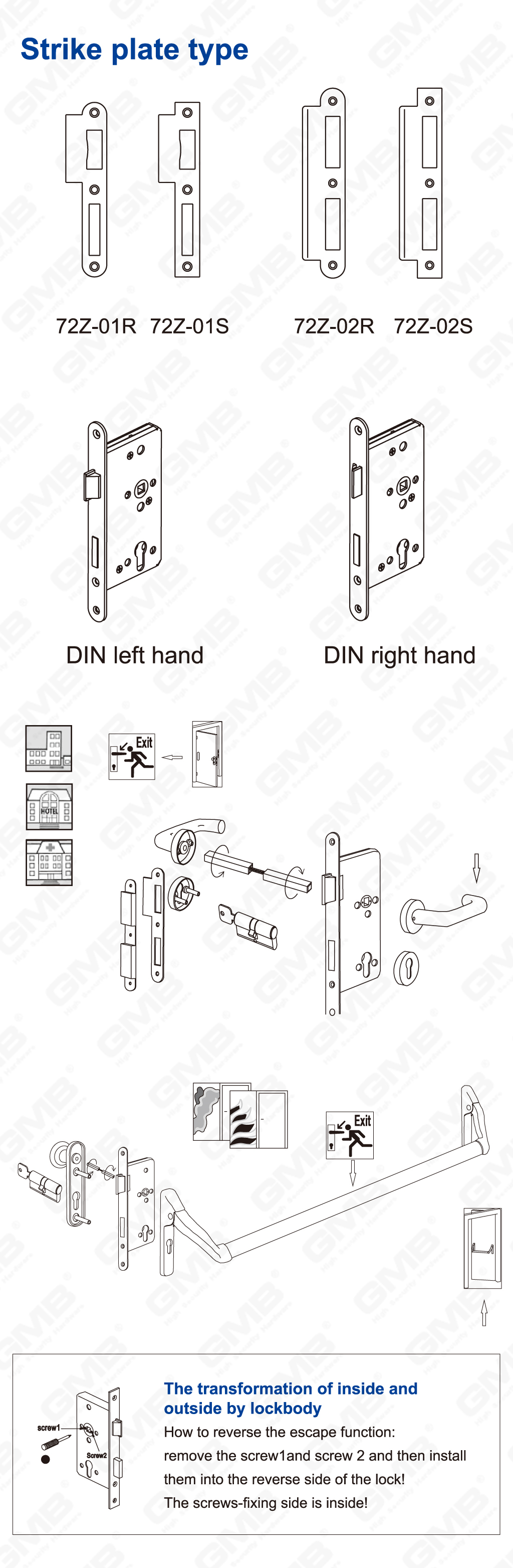

How to reverse the escape function:

remove the screw1and screw 2 and then install

them into the reverse side of the lock!

The screws-fixing side is inside!
