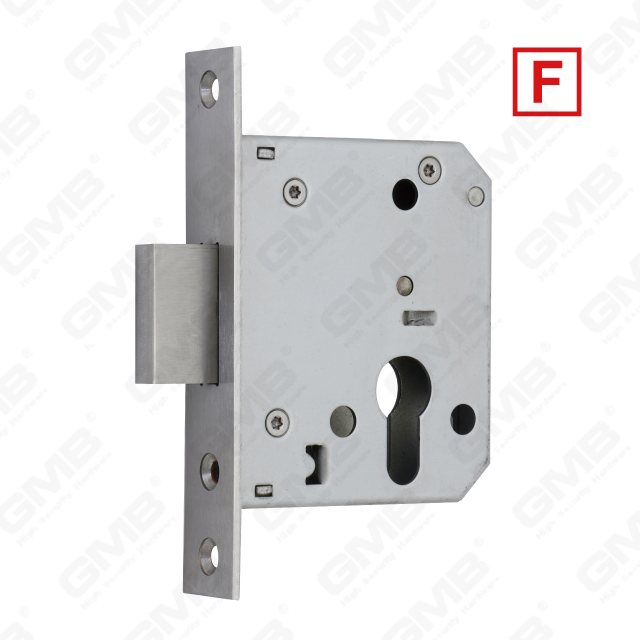

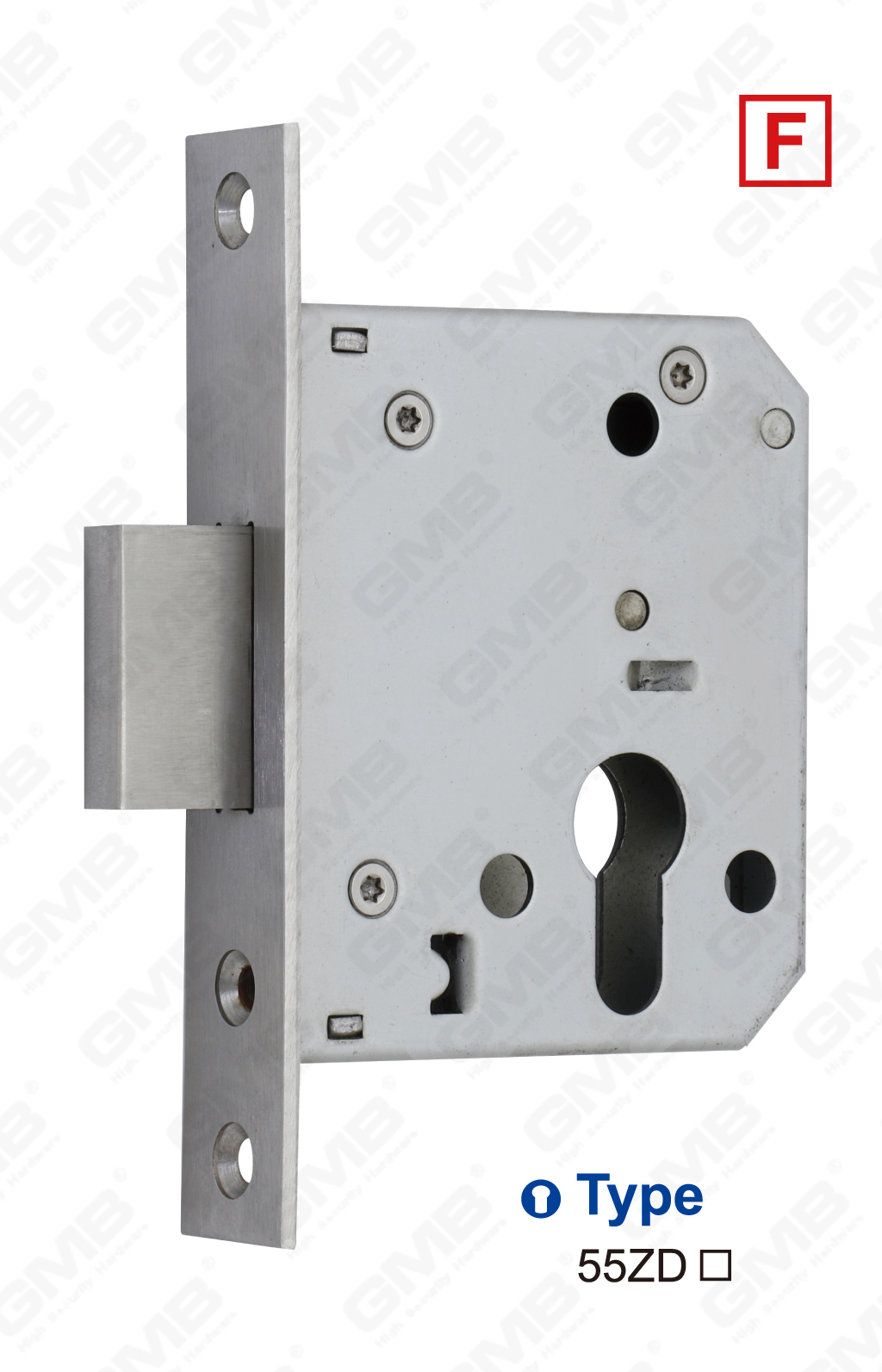

High Security Stainless Steel Mortise Door cylinder hole Lock Body for external fire and smoke protection doors (55ZD)

  Art No.55ZD

- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year

Features

According to DIN 18.250 class 3

For wooden or steel doors

Optional for non-rebated doors

Suitable for external fire and smoke protection doors

Prepared for profile cylinders

With key action

Deadbolt 2-turns

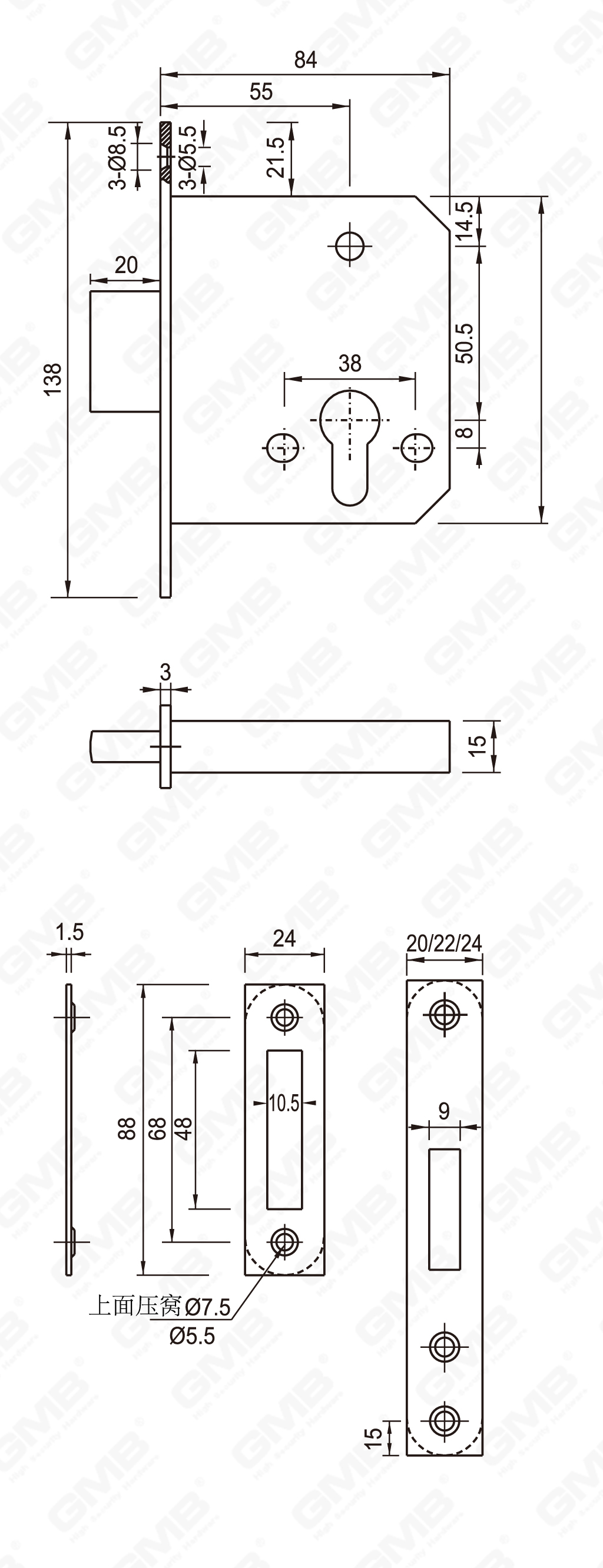

Technical data

Backset:55mm

Forend

Type:round head, square head

Thickness:3mm

Width:20, 22, 24mm

Forend finish

Stainless steel:SSS PSS PVD

Accessories

Strike plate

Pocket

Lock and strike plate fixing screws
