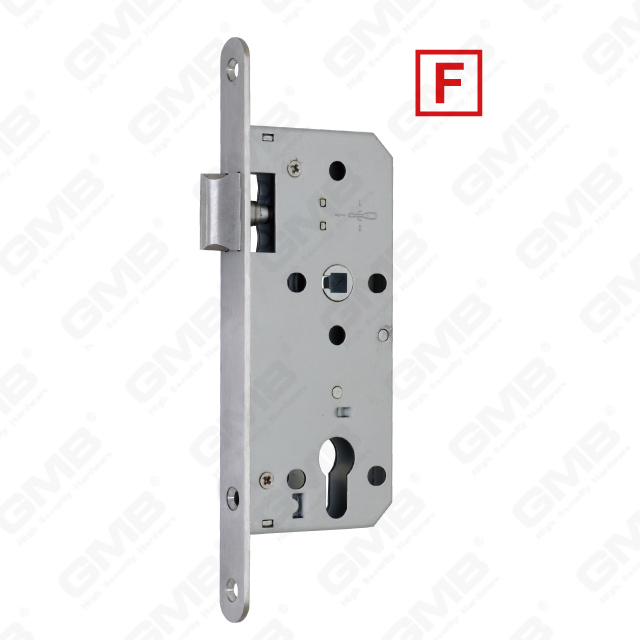

High Security Stainless Steel Mortise Door cylinder hole Lock Body Prepared for profile cylinders (72ZN Series)

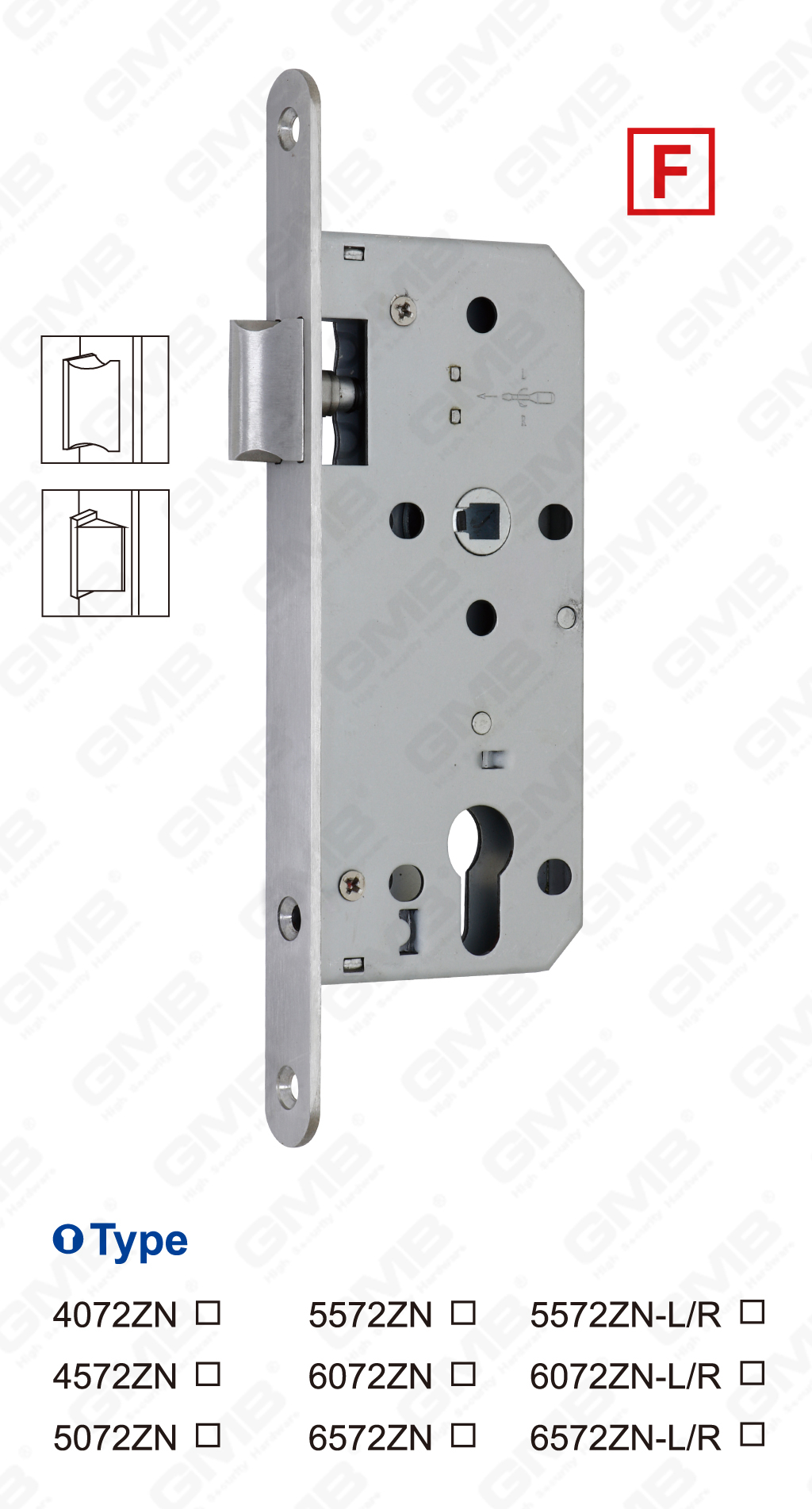

  Art No.72ZN Series

- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year

Features

According to DIN 18.250, 18.251 class 3

For wooden or steel doors

Optional for rebated or non-rebated doors

Suitable for external fire and smoke protection doors

Prepared for profile cylinders

With key action Latch bolt

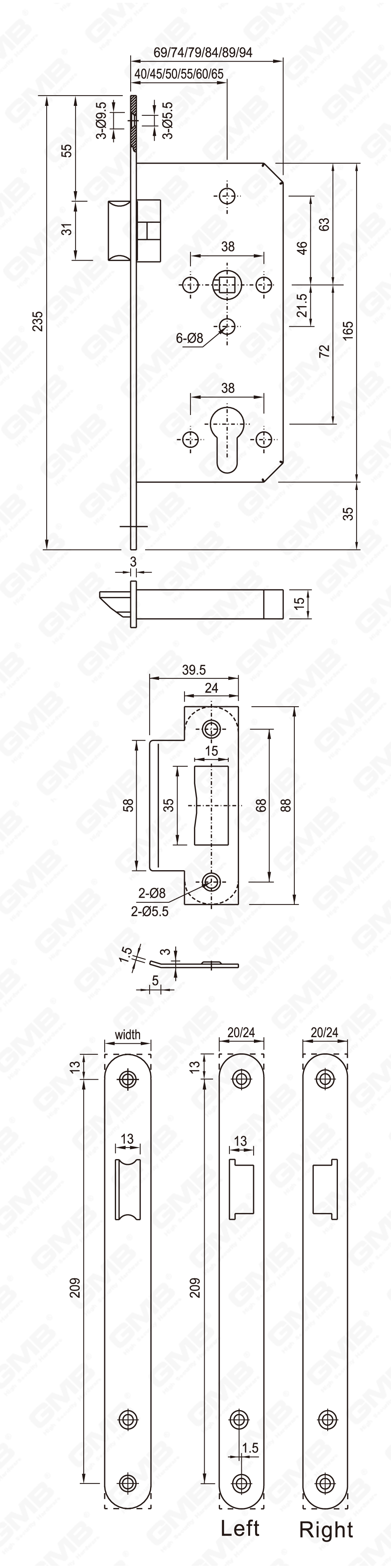

Technical data

Follower:8x8mm 9x9mm

Distance:72mm

Backset:40mm 45mm 50mm 55mm 60mm 65mm

Forend

Type:round head, square head

Thickness:3mm

Width:18, 20, 22, 23, 24mm

Forend finish

Stainless steel:SSS PSS PVD

Accessories

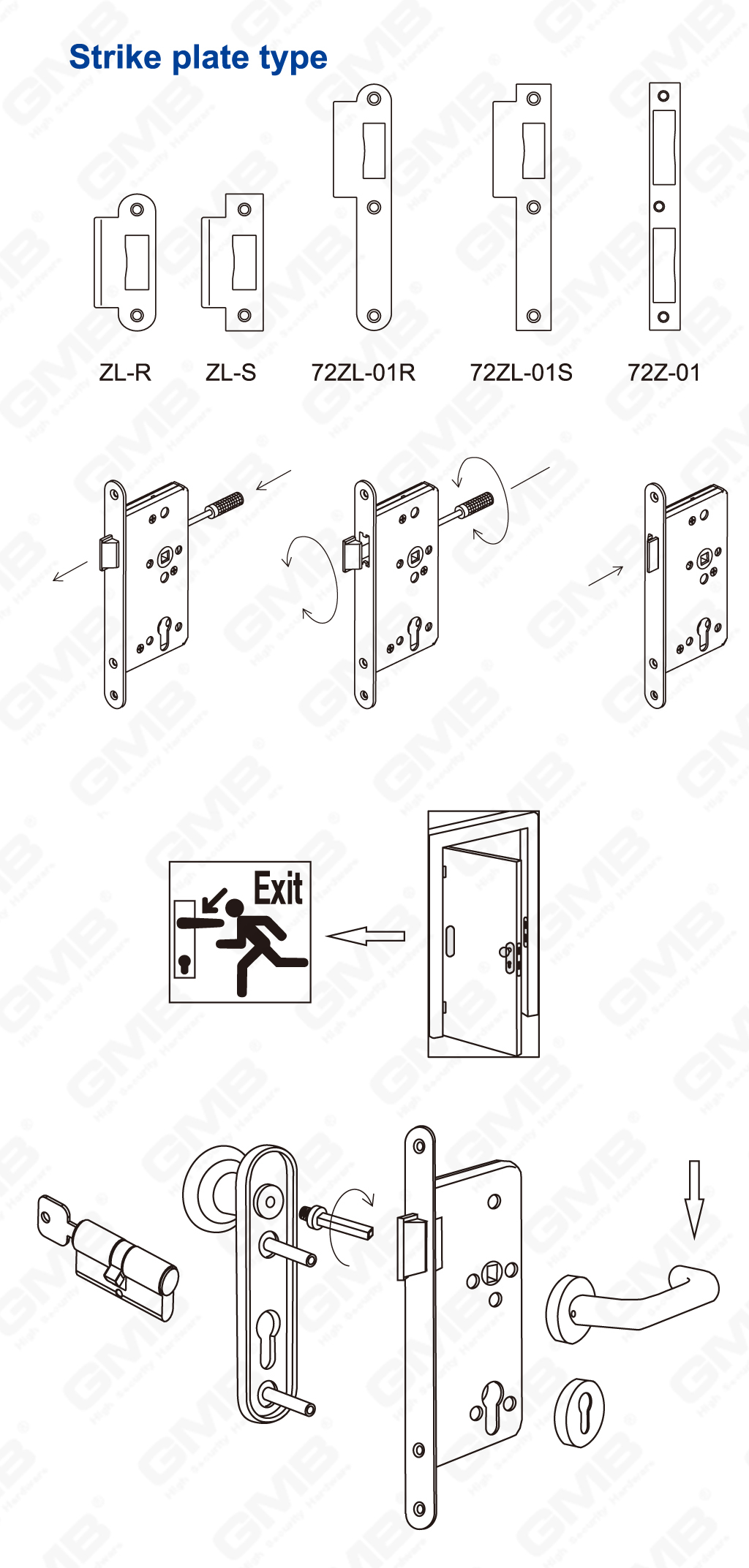

Strike plate

Pocket

Lock and strike plate fixing screws
