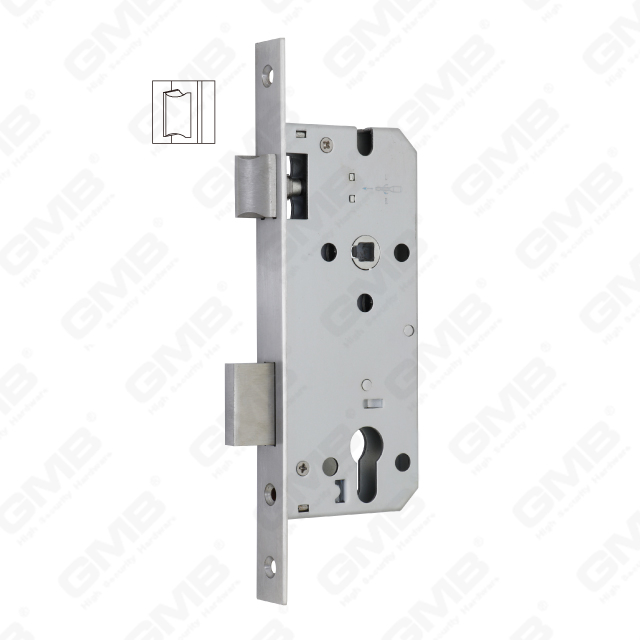

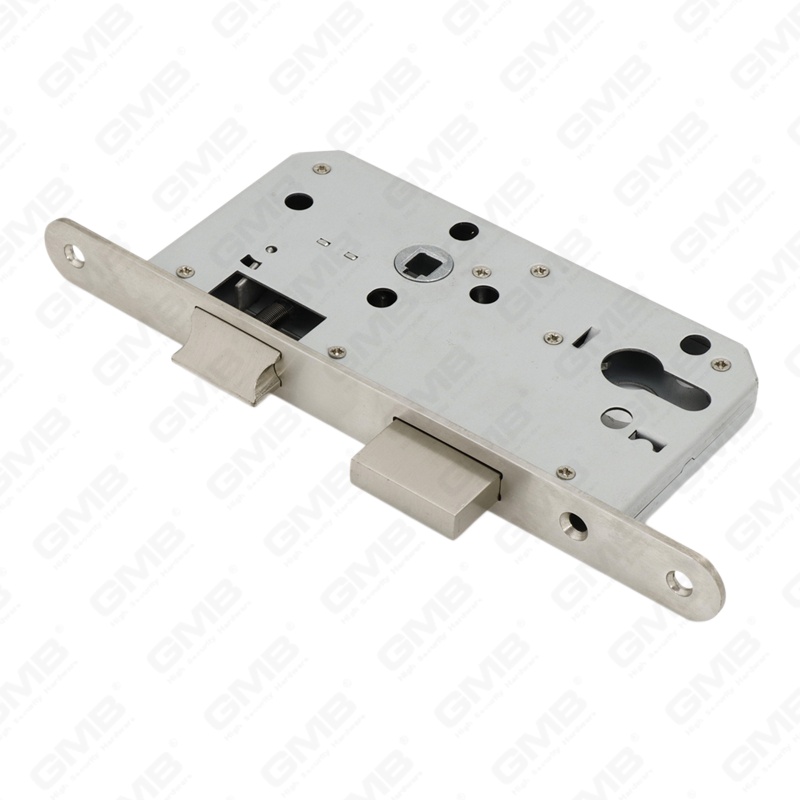

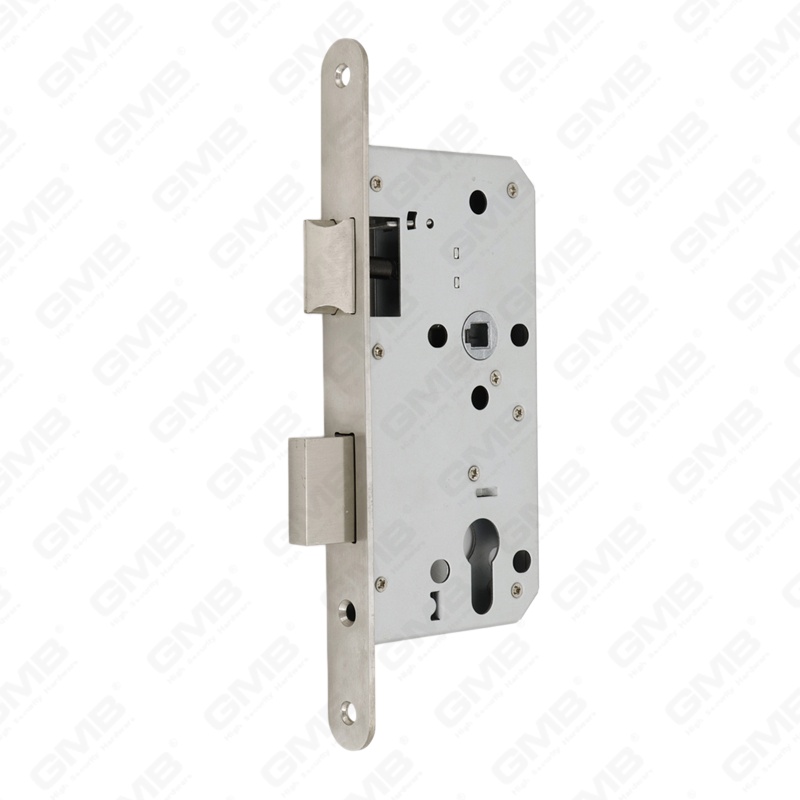

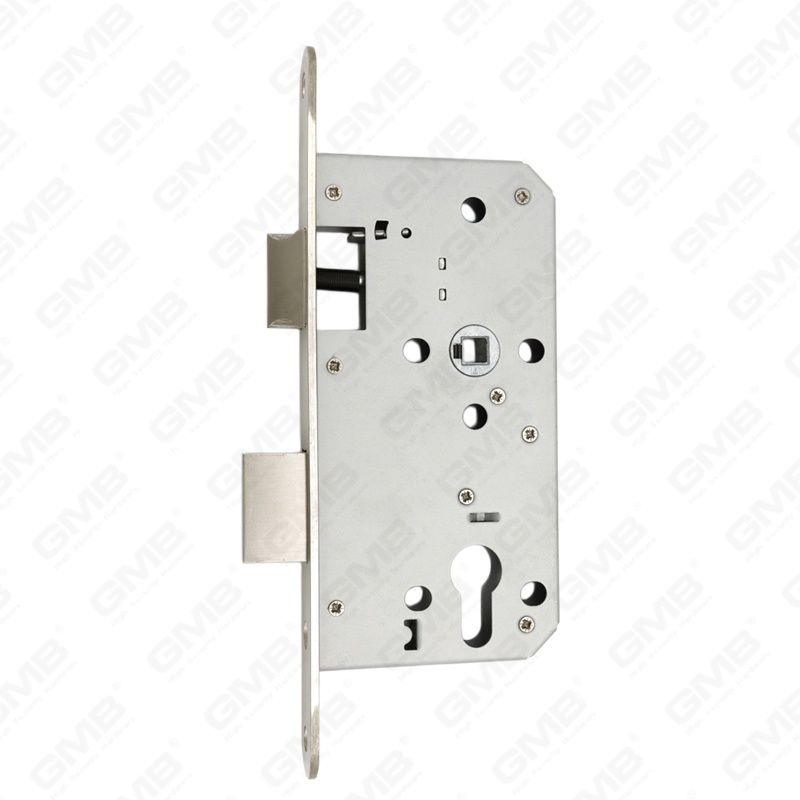

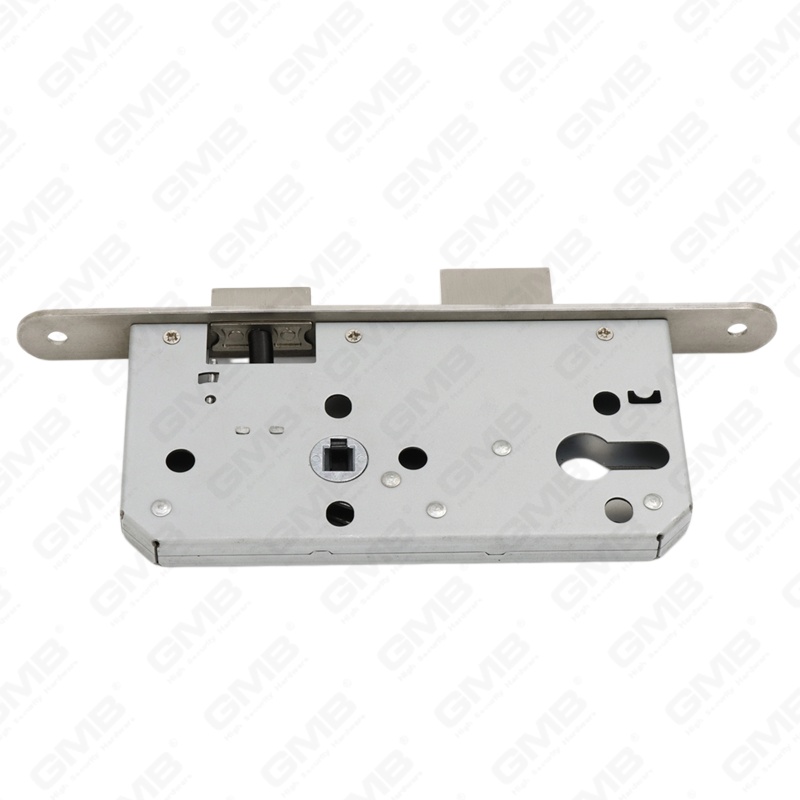

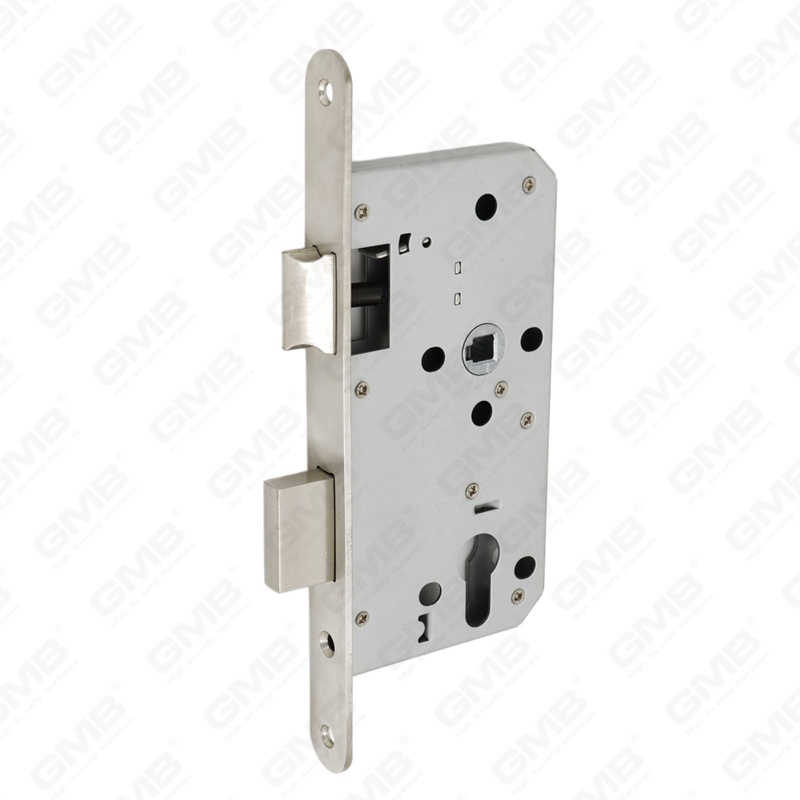

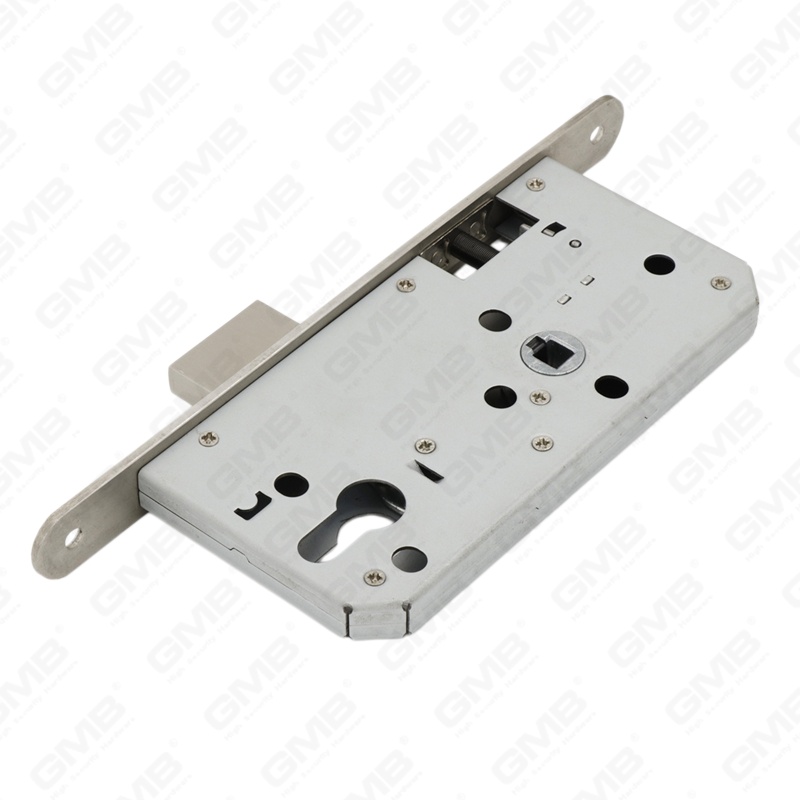

High Security Stainless Steel Mortise Door cylinder hole Lock Body For wooden or steel doors (85Z Series)

  Art No.85Z Series

- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year

Features

According to EN12209 class 3

For wooden or steel doors

Optional for non-rebated doors

Suitable for external fire and smoke protection doors

Prepared for profile cylinders

With key action

Deadbolt 2-turns

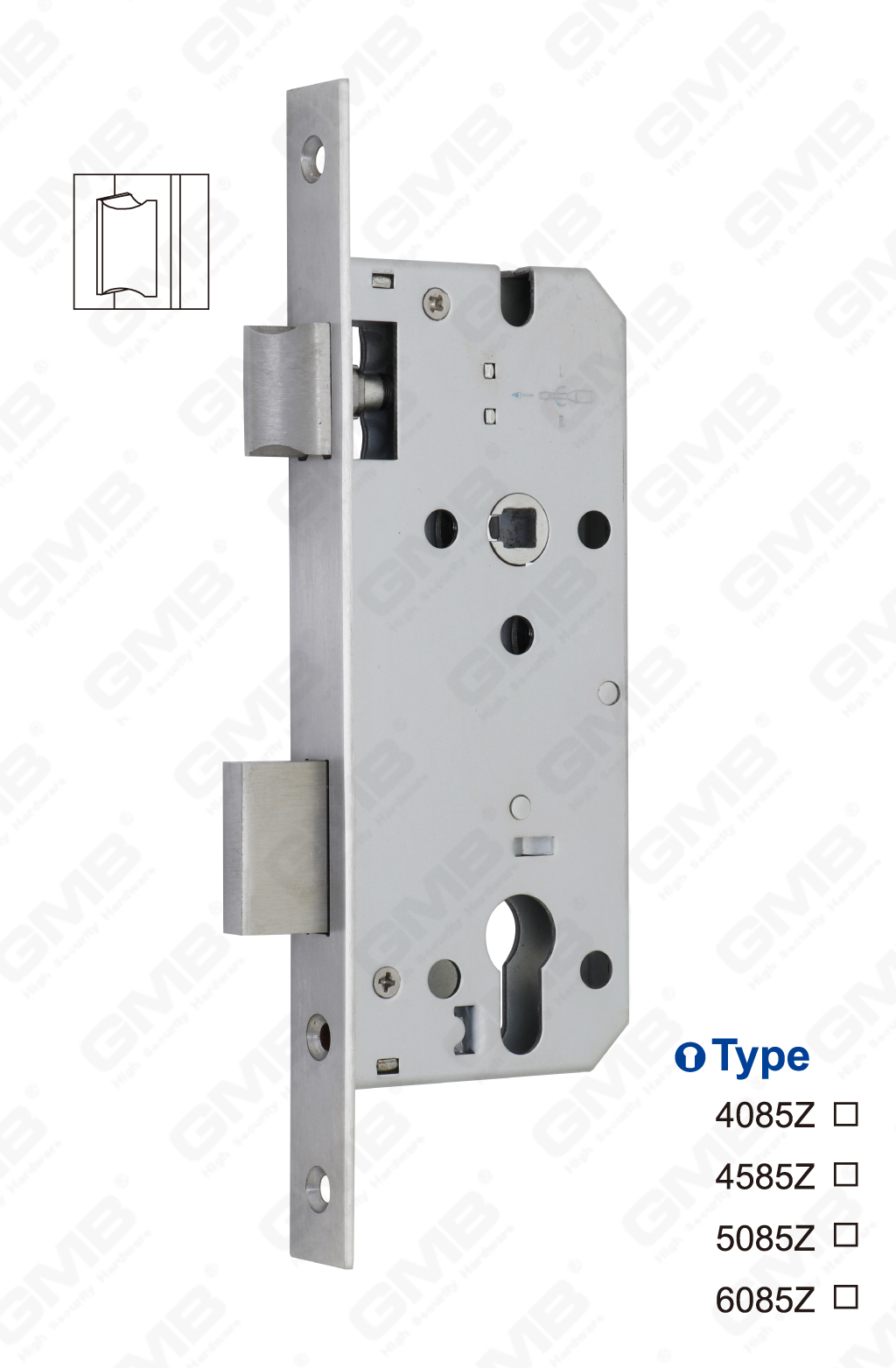

85Z Serise

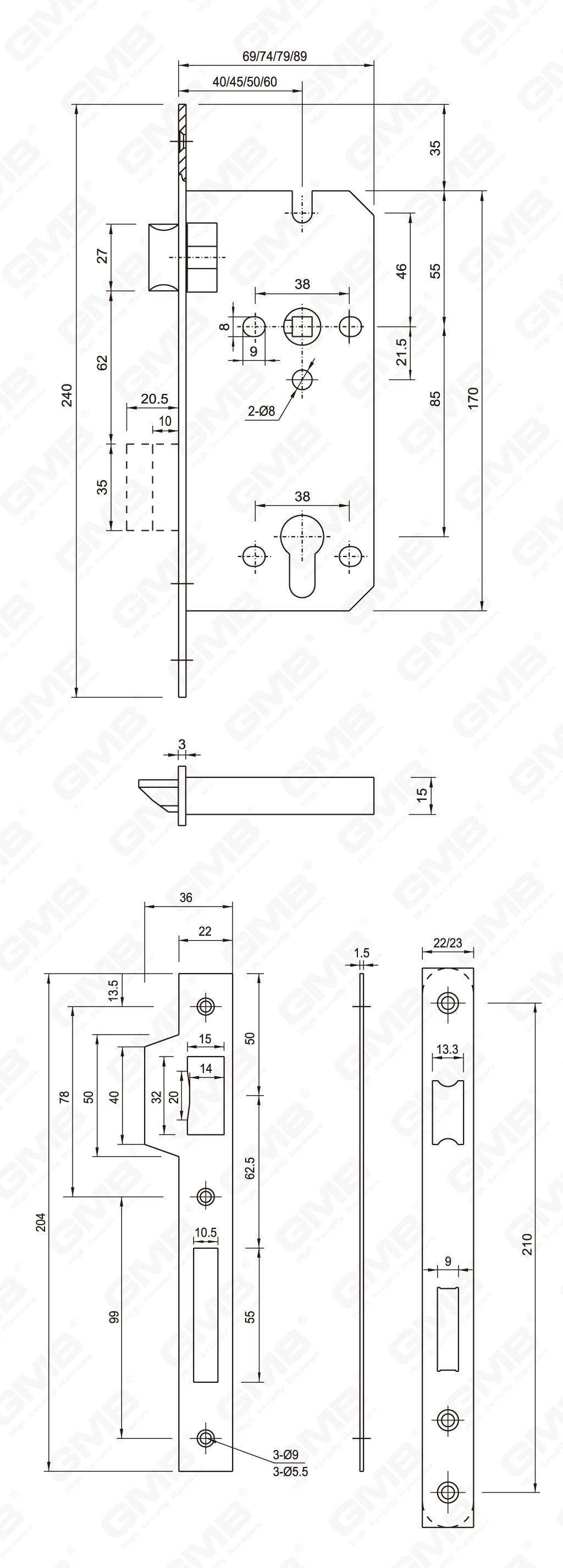

Technical data

Follower:7x7mm 8x8mm

Distance:85mm

Backset:40mm 45mm 50mm 60mm

Forend

Type:round head, square head

Thickness:3mm

Width:22, 23mm

Forend finish

Stainless steel:SSS PSS PVD

Accessories

Strike plate

Pocket

Lock and strike plate fixing screws
