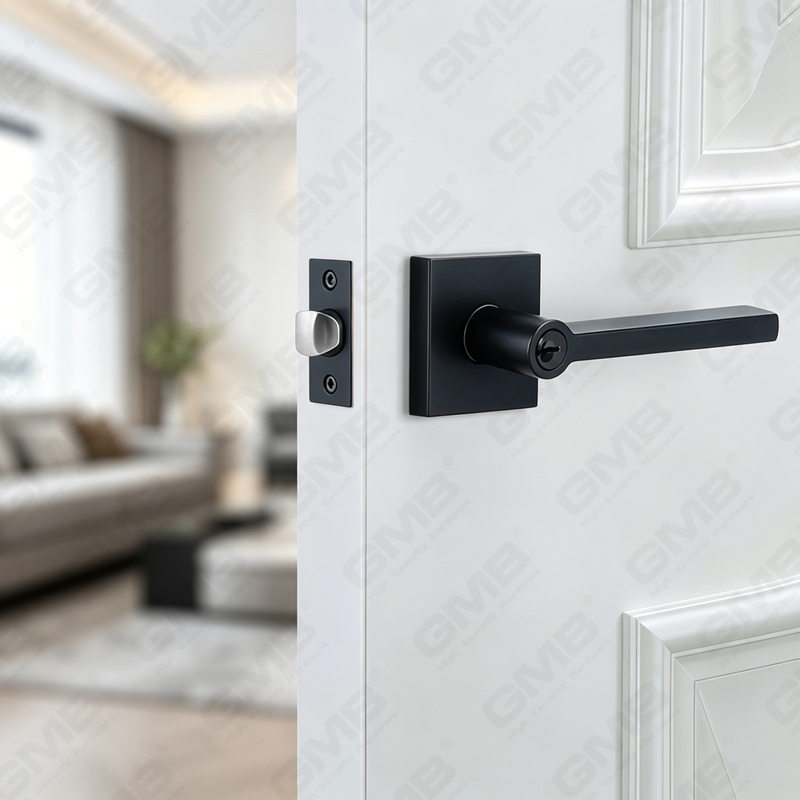

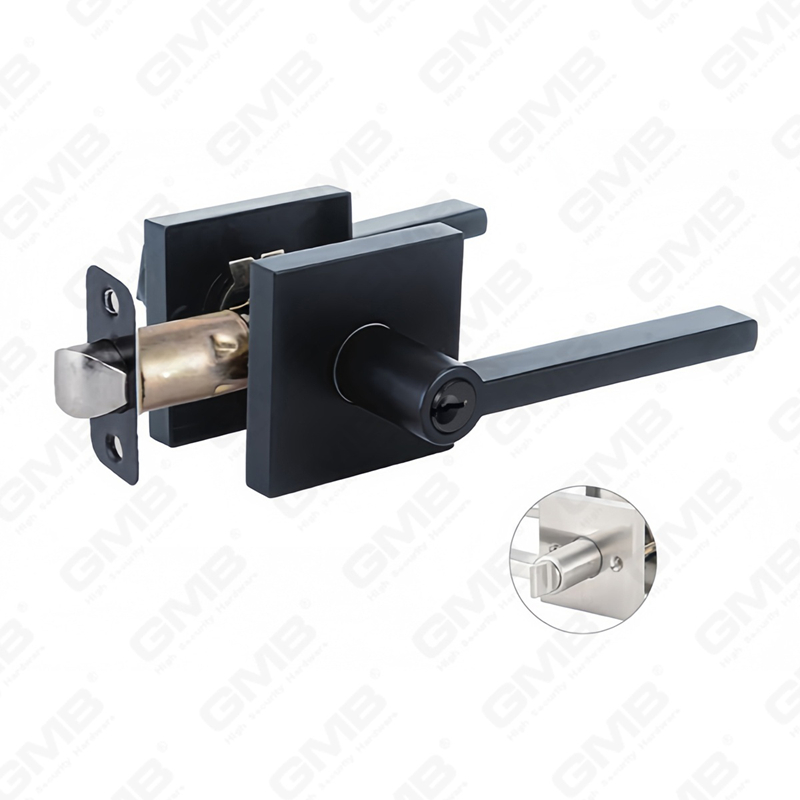

Heavy Duty Tubular Lever Door Lock Series, Zinc alloy Square Rosette Entry Door Handle Lock（A3016）
| Quantity: | |
|---|---|
-
A3016
Heavy Duty Tubular Lever Door Lock Series, Square Rosette Entry Door Handle Lock
Item No.: A3016
Function: Entrance / Storeroom / Privacy / Passage / Dummy
Material: Zinc alloy
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black

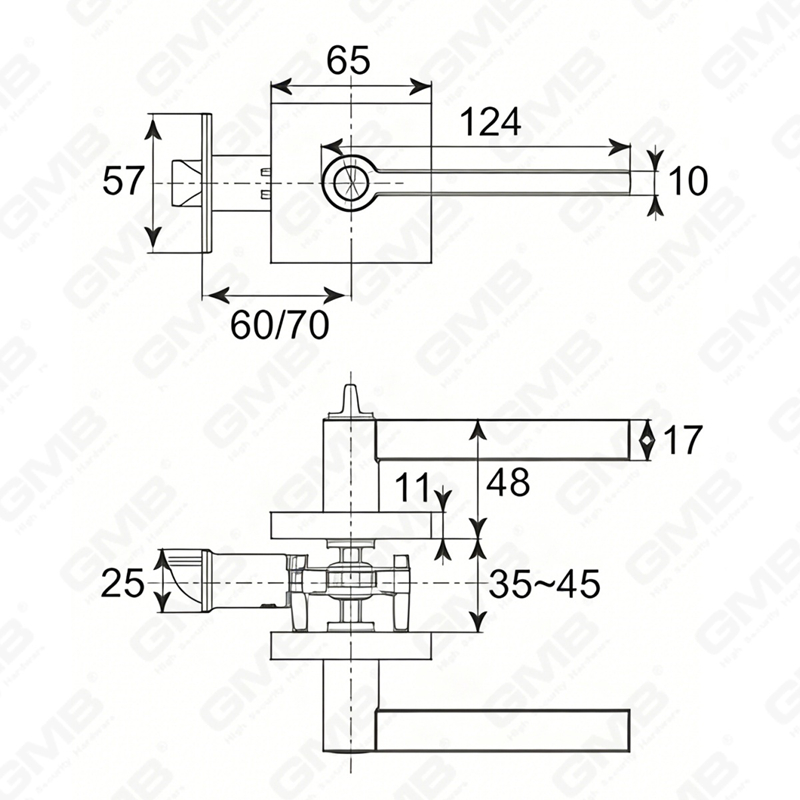

Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors
Quality grade: ANSI / BHMA A156.2-2003 Grade 3
A3016BK

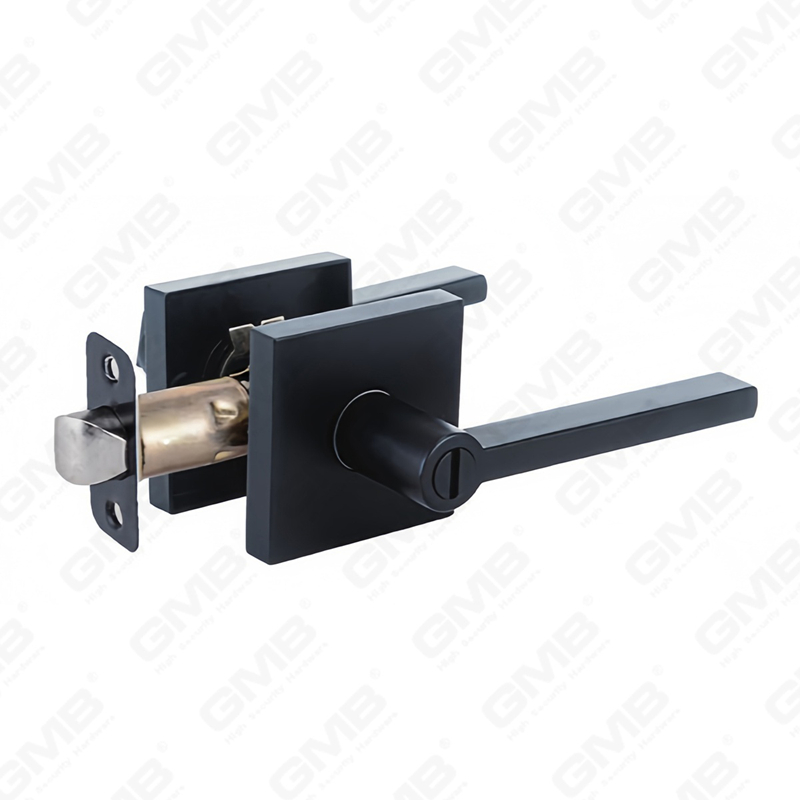

Function: Privacy lock
A3016PS

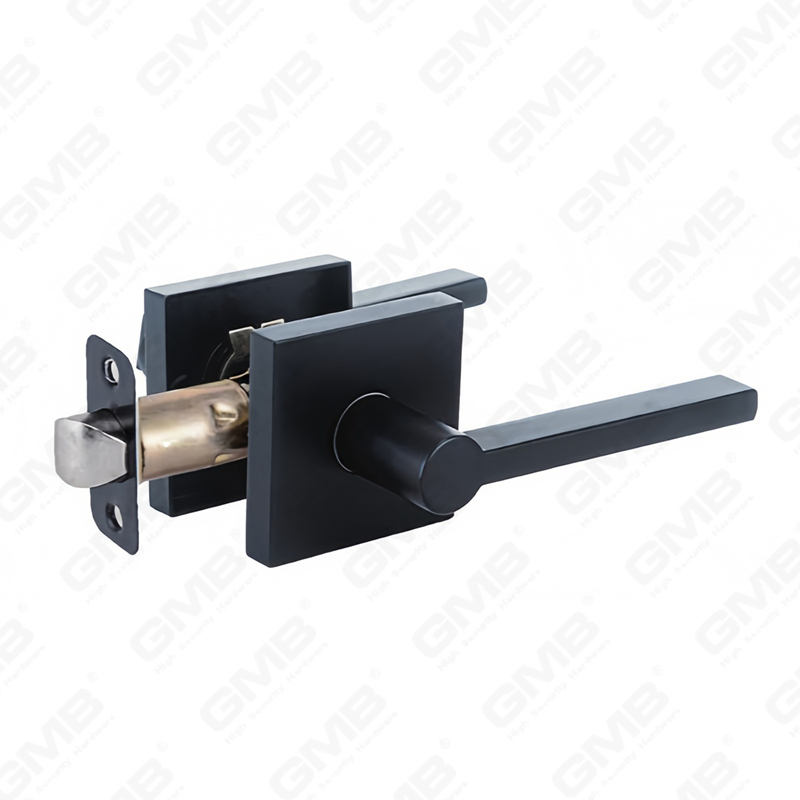

Function: Passage lock
Definition of door opening direction：
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
