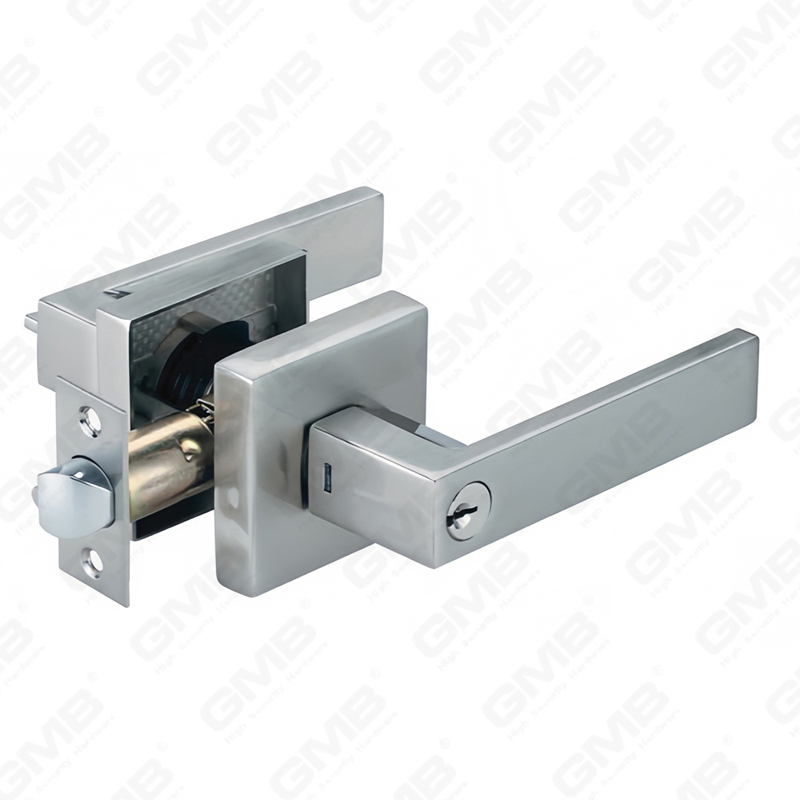

Heavy Duty Tubular Lever Door Lock Series, Square Entry Door Handle Lock （A2009）
| Quantity: | |
|---|---|
-
A2009
Heavy Duty Tubular Lever Door Lock Series, Square Entry Door Handle Lock
Item No.: A2009
Function: Entrance
Material: Zinc alloy
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors
Feature: Anti-theft,Safe,Luxury and beauty (Lock head can be changed)
Quality grade: ANSI / BHMA A156.2-2003 Grade 3

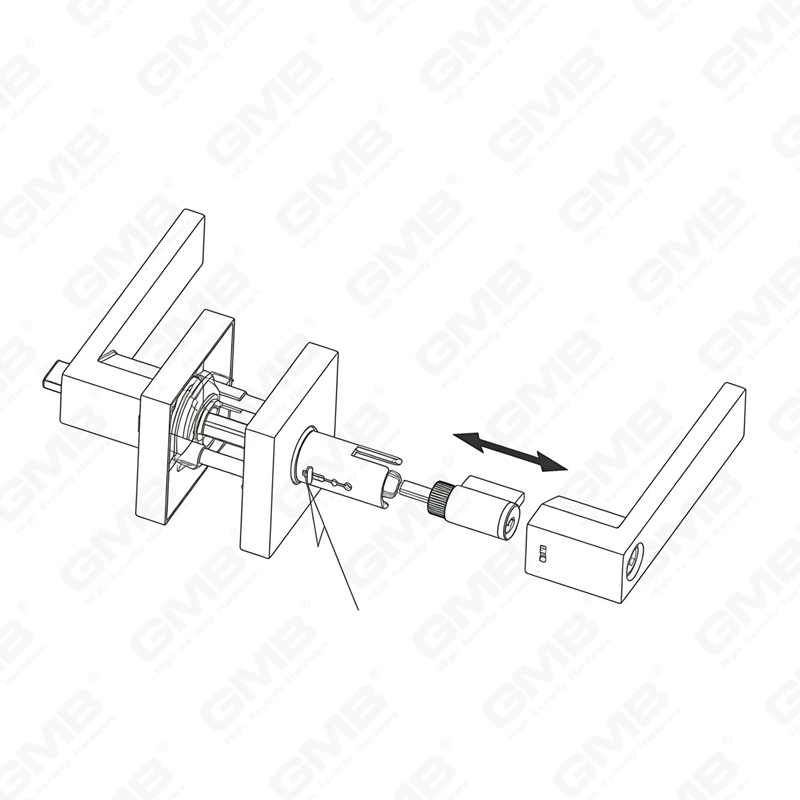

Operation of changing cylinder:
When unlocked, press the snap panel downwards and pull the handle out, take out the original cylinder and replace it with a new cylinder of the same specs. Then reinstall the handle, and check and make sure the snap panel springs out and locks the handle.
Definition of door opening direction：
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
