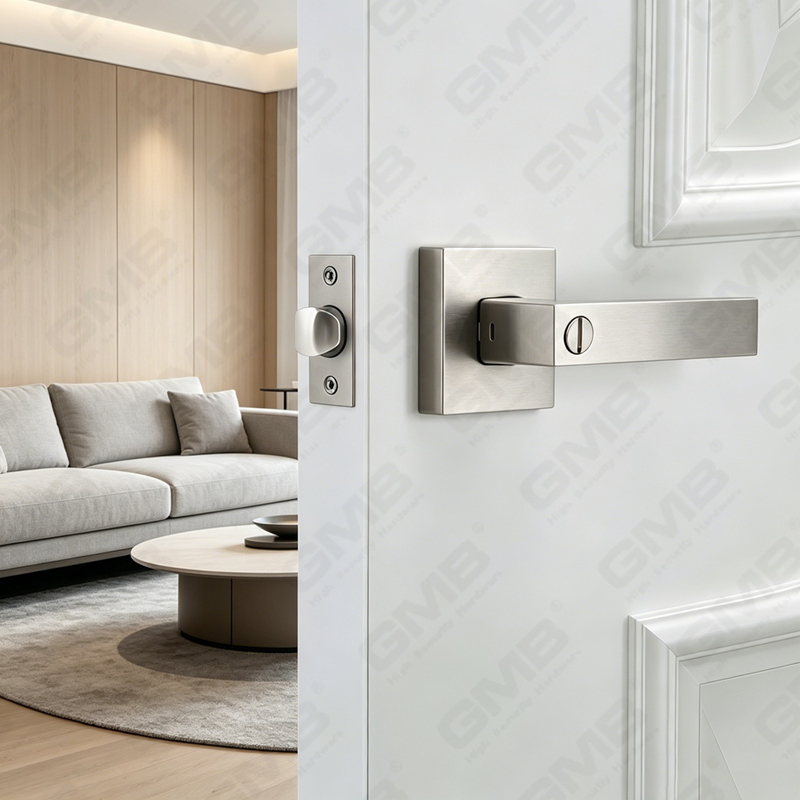

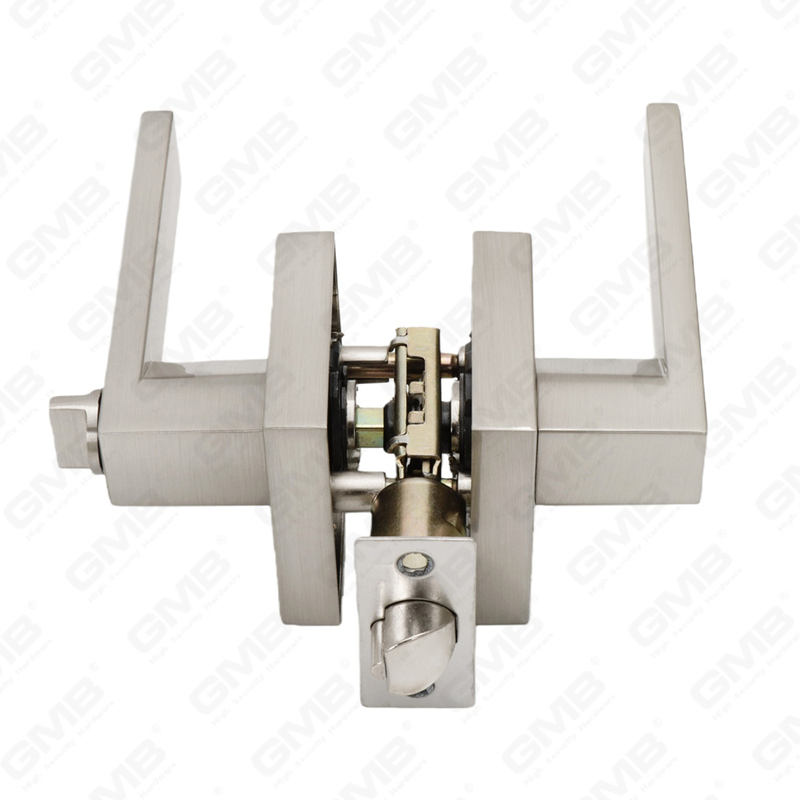

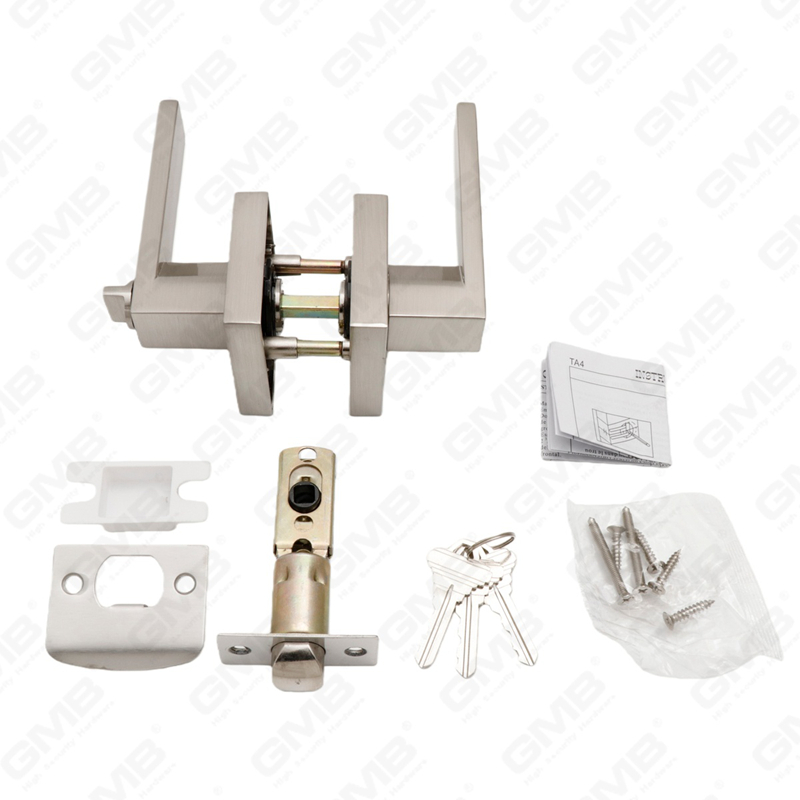

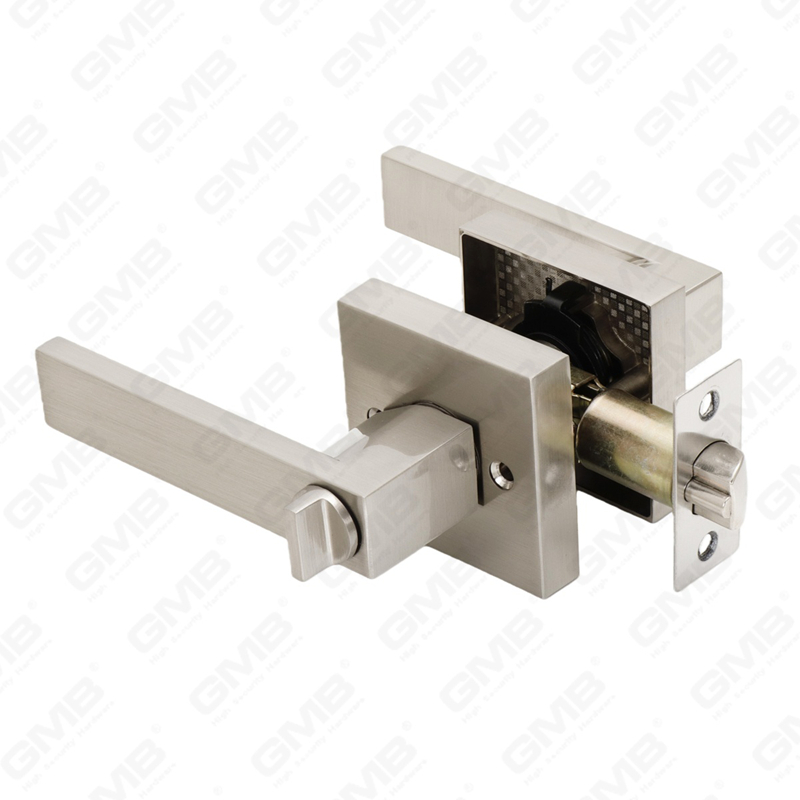

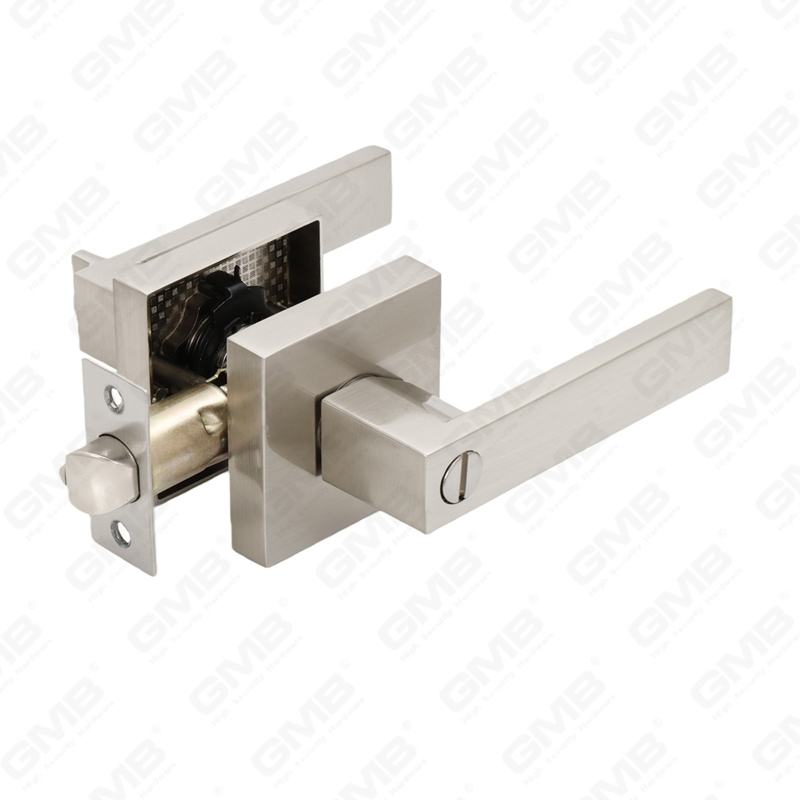

Heavy Duty Tubular Lever Door Lock Series, Square Entry Door Handle Lock （A2001）
| Quantity: | |
|---|---|
-
A2001

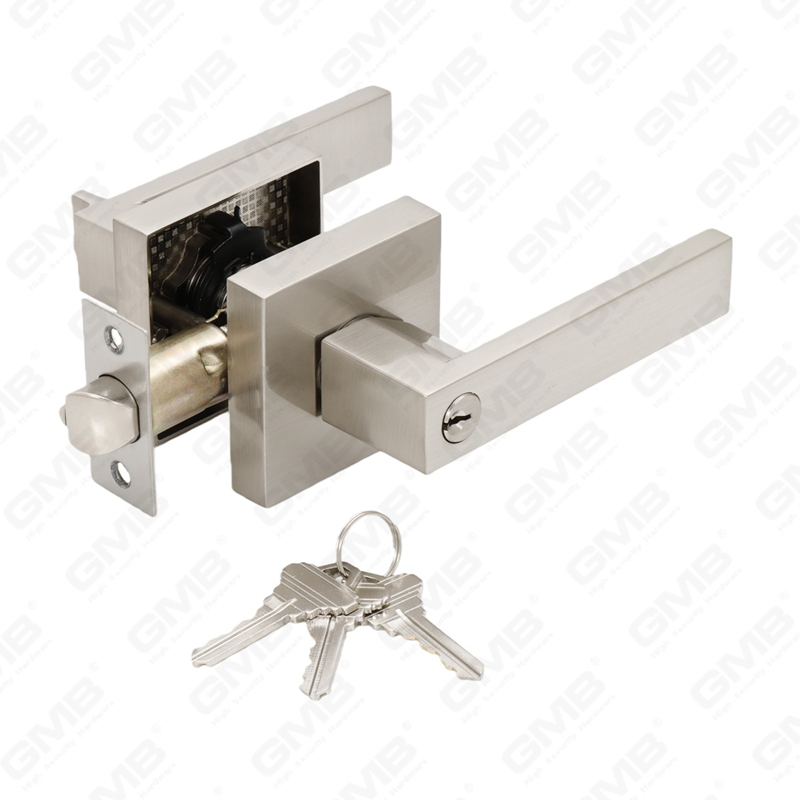

Heavy Duty Tubular Lever Door Lock Series, Square Entry Door Handle Lock
Item No.:

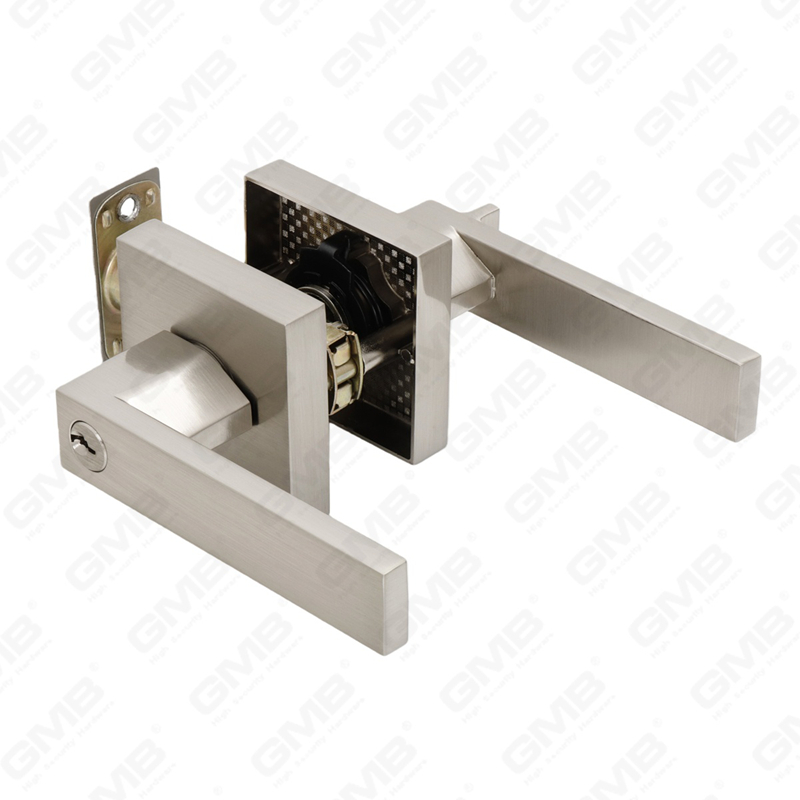

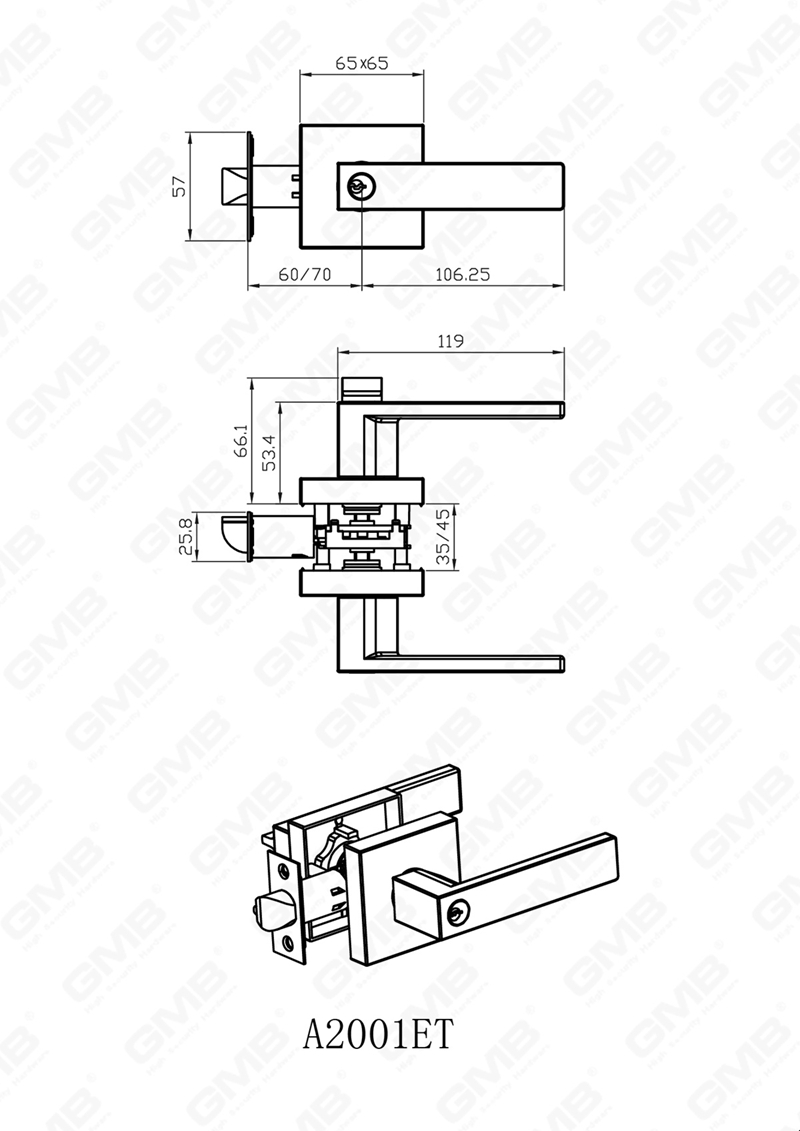

A2001 ET(Zinc alloy)
A2101 ET(Aluminum)
Function: Entrance / Storeroom / Privacy / Passage / Dummy
Material: Zinc alloy / Aluminum
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors
Feature: Anti-theft,Safe,Luxury and beauty (Lock head can be changed)
Quality grade: ANSI / BHMA A156.2-2003 Grade 3

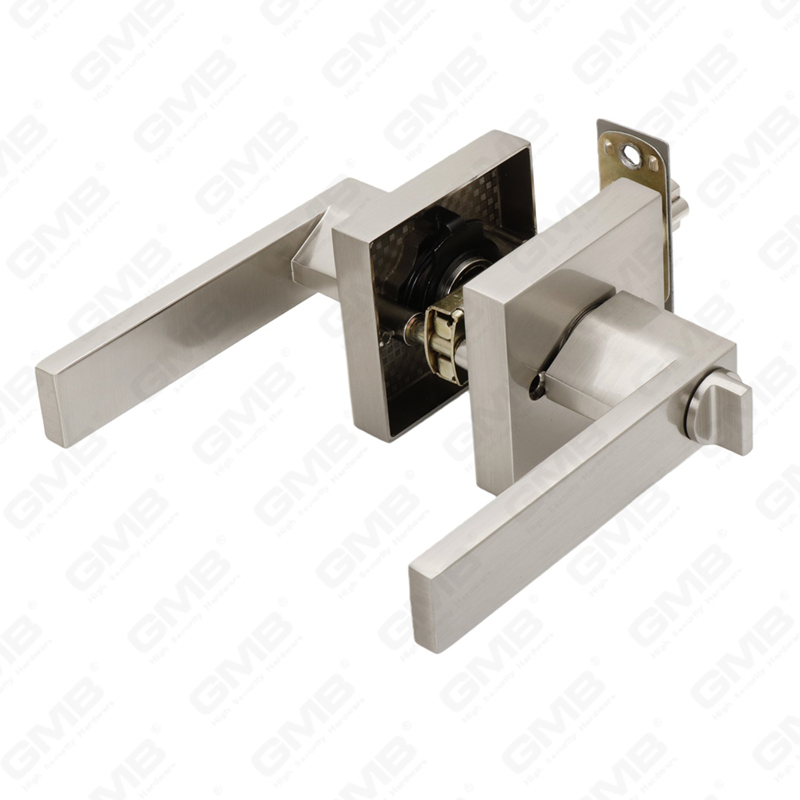

A2001 BK(Zinc alloy) A2101 BK(Aluminum) Function: Privacy lock
A2001 PS(Zinc alloy) A2101 PS(Aluminum) Function: Passage lock
Definition of door opening direction：
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
