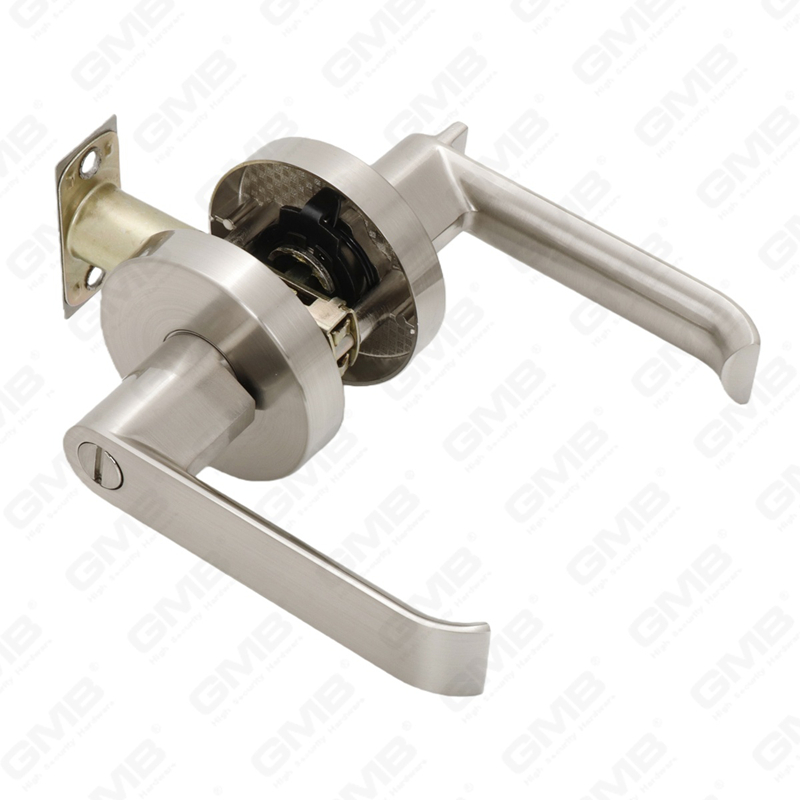

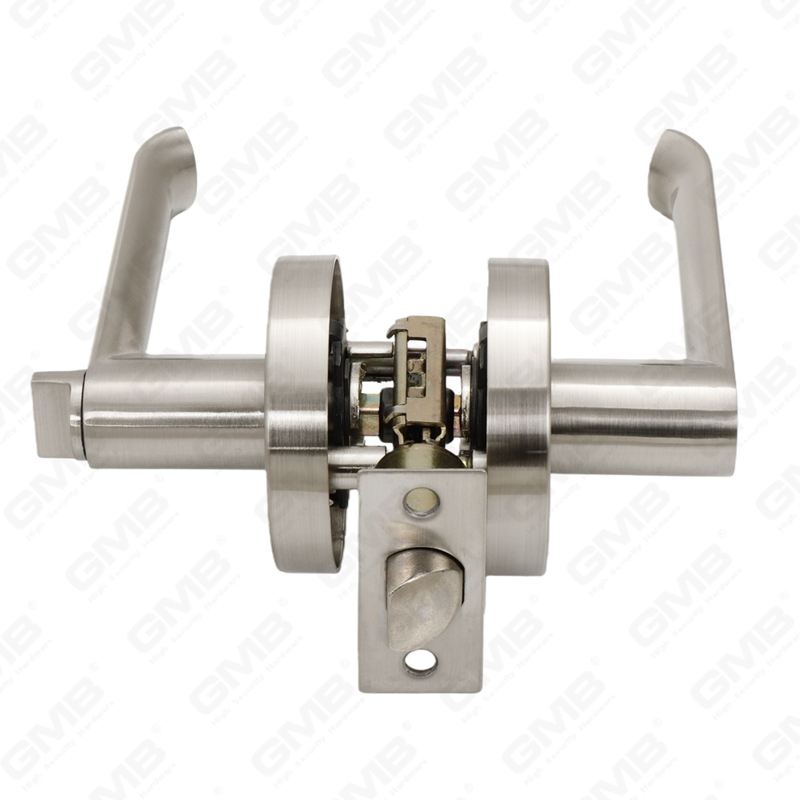

Heavy Duty Tubular Lever Door Lock Series, Round Rosette Entry Door Handle Lock（B2003）
| Quantity: | |
|---|---|
-
B2003
Heavy Duty Tubular Lever Door Lock Series, Round Rosette Entry Door Handle Lock

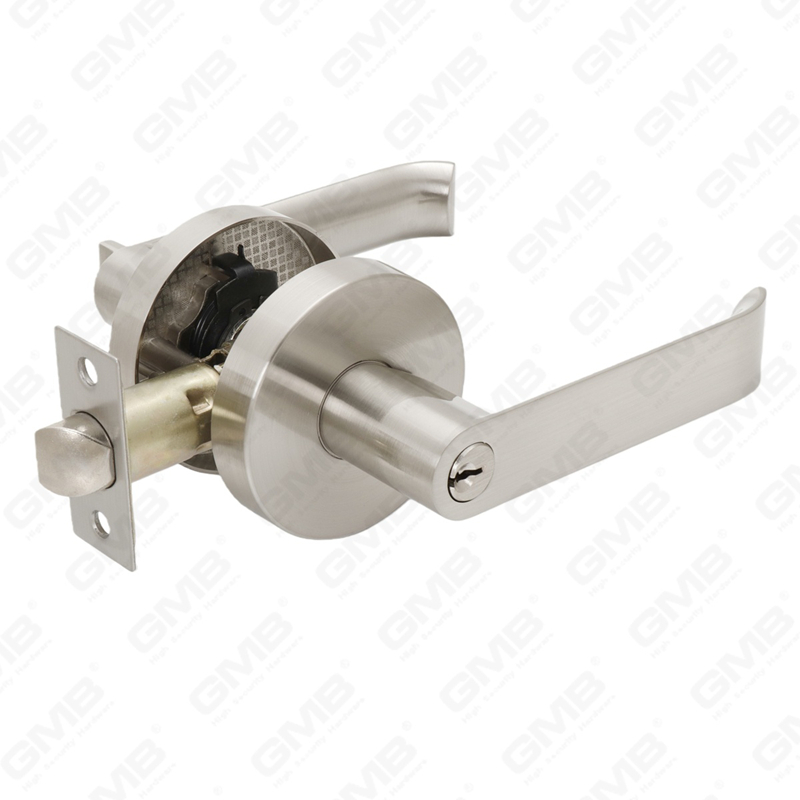

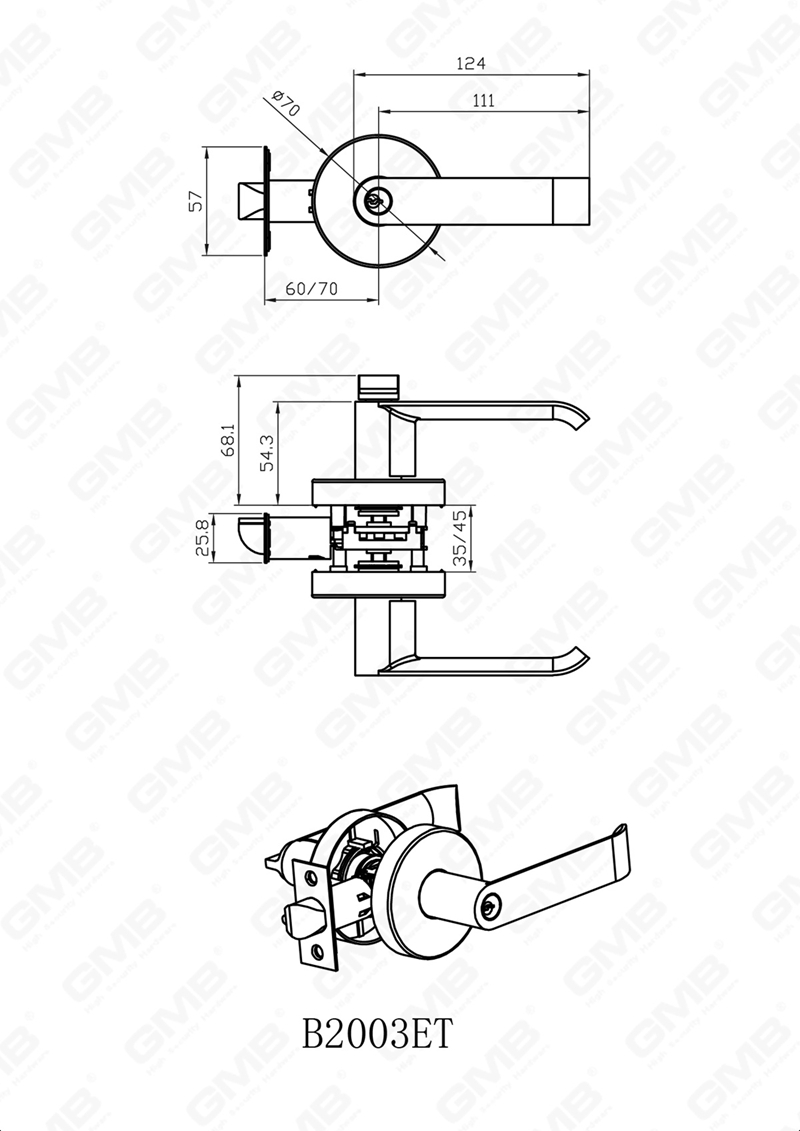

Item No.: B2003ET
Function: Entrance / Storeroom / Privacy / Passage / Dummy
Material: Zinc alloy
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors
Feature: Anti-theft,Safe,Luxury and beauty (Lock head can be changed)
Quality grade: ANSI / BHMA A156.2-2003 Grade 3

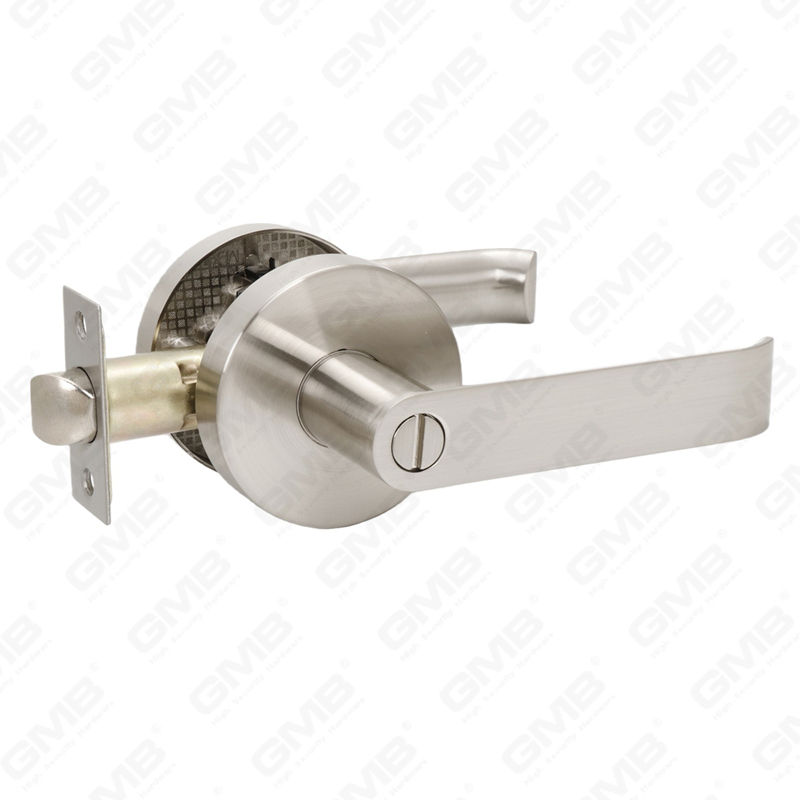

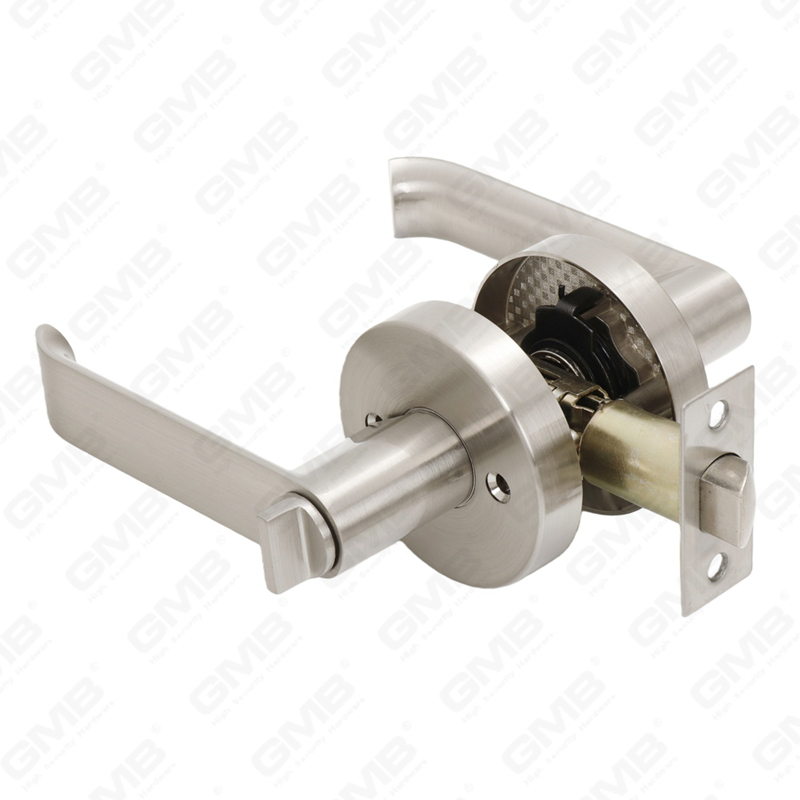

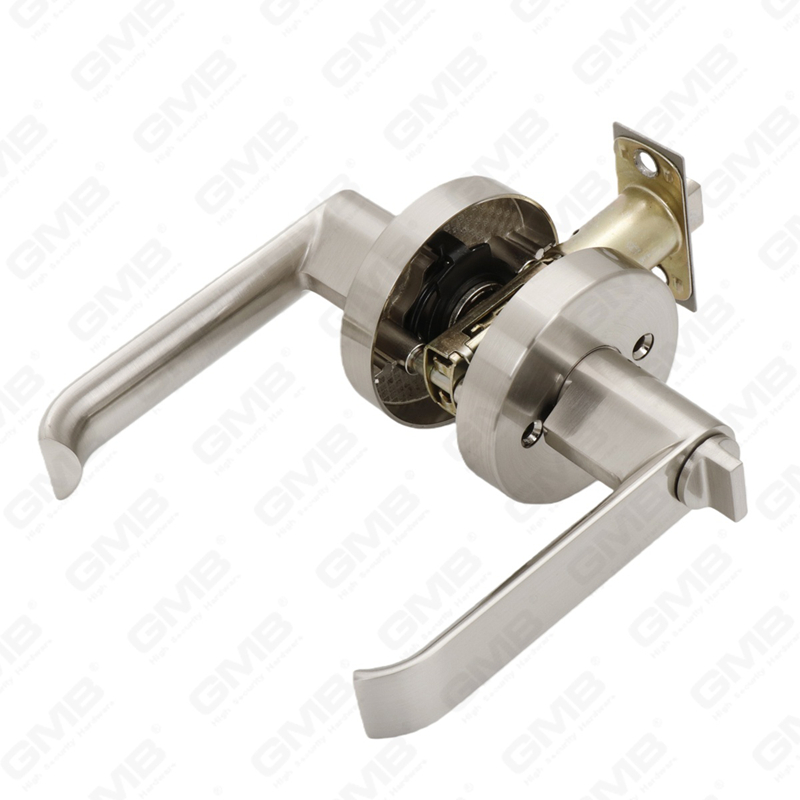

B2003BK
Function: Privacy lock
B2003PS
Function: Passage lock
Definition of door opening direction：
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
