You can put stainless steel hinges on doors and cabinets easily. The right hinges help doors close tight and move well. If you put hinges on wrong or use bad materials, the door might sag or not line up. This can make the door less safe and hurt fire safety. If you take care of your hinges, they will not rust or wear out fast. Wuxi GMB International Corporation has over 15 years of experience with hardware like lock cylinders and door handles. They give you good solutions for every project.
Use the correct tools and materials. You need a measuring tape, drill, stainless steel hinges, and screws. This helps make the installation strong and long-lasting.Pick hinges that fit your door or cabinet. Think about the type, weight, and how you will use it. Use ball-bearing hinges for heavy doors. Use concealed hinges for cabinets.Measure and mark spots before you drill. This helps line up the hinges right. It also stops the door from sagging or being crooked.Mortise hinges if needed so they sit flat. This makes the door move better and look nicer.Test the door or cabinet after you finish. Adjust screws or hinges if you need to. Lubricate often to keep things working well.

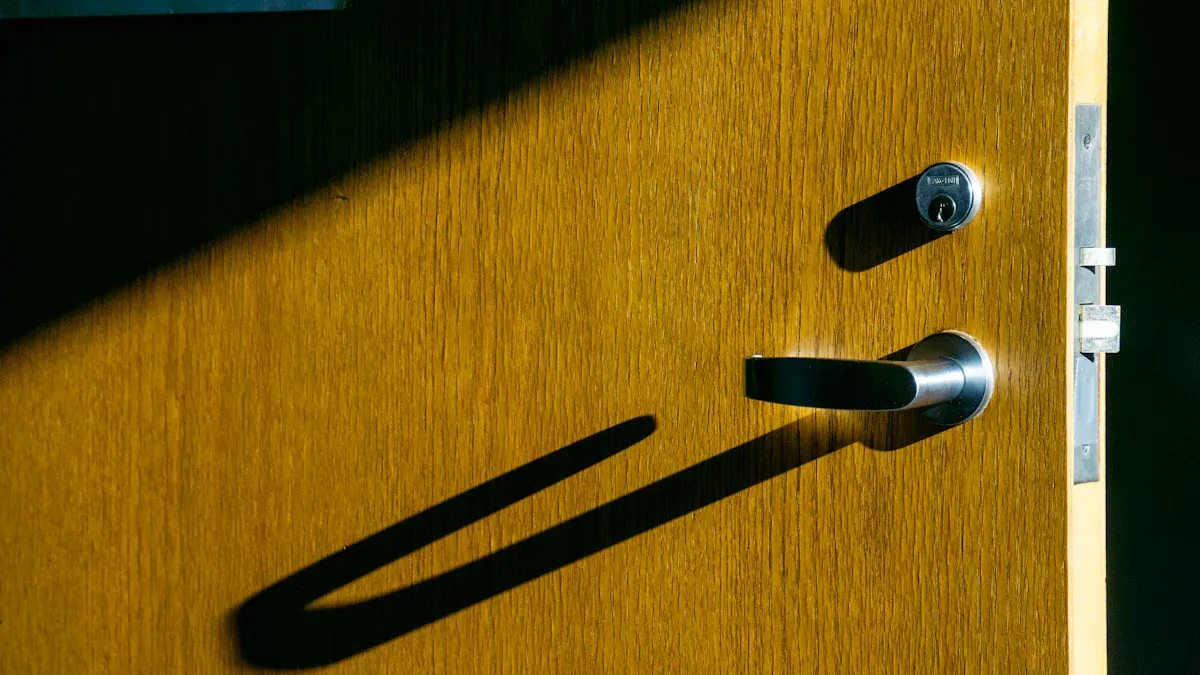

You need the right tools to put stainless steel hinges on doors or cabinets. The correct tools help you fit the hinges tightly and make them work well. Professionals use certain tools to make the job easier and more exact.
You need some basic tools to put in stainless steel hinges. These tools help you measure, mark, cut, and attach the hinges the right way.
Measuring tape: This helps you find the right spot for each hinge.
Pencil or marking tool: Use this to show where the hinges will go.
Drill and good drill bits: Make neat holes for screws and stop the wood from splitting.
Screwdriver or drill with screwdriver bit: Use this to tighten the screws.
Chisel and hammer: Make a space for the hinge to sit flat with the door or cabinet.
Door lifter: Hold up heavy doors while you work.
Hinge pin popper: Take out old hinge pins without trouble.
Knuckle bender or hinge tweaker: Move the hinge to line it up just right.
Hinge installation kit (like HingeMate): Use guides and router bits to make neat spaces for hinges.
Tip: It is very important to measure and mark carefully. Always check your marks before you drill.
You also need the right materials to make sure your hinges stay strong and last a long time.
Stainless steel hinges that are the right size and type for your job.
Stainless steel screws or fasteners to keep things strong and safe.
Wood filler (if needed) to fix old holes or rough spots.
Sandpaper to smooth the hinge space or any rough parts.
Thread locking inserts or liquids if you think the door will move a lot.
Instructions from the maker for your hinge.
If you pick good hardware from Wuxi GMB International Corporation, you will get strong stainless steel hinges, lock cylinders, and door handles for every job. Using these steps and the right tools will help you do the job like a pro.
Selecting the right hinges is important for both doors and cabinets. You want your doors to open smoothly and stay strong for years. The right choice depends on the type of door or cabinet, the weight, and where you will use it.
You will find many types of hinges for different needs. Each type works best for certain doors or cabinets. Here is a table to help you understand the most popular types:
Hinge Type | Applications | Benefits |
|---|---|---|
Butt Hinges | Doors, cabinets, windows | Durable, easy to install, secure |
Ball-Bearing Butt Hinges | Heavy doors, high-traffic areas | Smooth, quiet, supports heavy doors |
Concealed Hinges | Cabinets, modern furniture | Hidden look, adjustable, tamper-resistant |
Continuous (Piano) Hinges | Long doors, chests, industrial settings | Even weight support, prevents sagging |
Spring Hinges | Fire doors, garage doors | Self-closing, safety |
Strap Hinges | Gates, barn doors, rustic furniture | Decorative, strong, versatile |
Overlay Hinges | Cabinets, built-ins | Seamless look, easy to install |
Tip: For cabinets, concealed hinges give a clean, modern look. For heavy doors, ball-bearing butt hinges offer extra strength and smooth movement.
You need to match the hinge size and fit to your door or cabinet. This step keeps your doors from sagging or wearing out too soon.
Measure the height, width, and thickness of your door or cabinet.
Check the weight. Heavy doors need larger or ball-bearing hinges. Lighter cabinet doors can use smaller or concealed hinges.
Pick the right number of hinges. Use three hinges for doors over 60 inches tall.
Make sure the hinge fits the door and frame. The screw holes should line up. The hinge should sit flat and flush.
Think about the environment. Stainless steel hinges work best in places with moisture or outdoor use because they resist rust.
For cabinets, look at the overlay or inset style. Frameless cabinets often use concealed hinges with a 35mm cup size.
Choose a finish that matches your door handle or lock cylinder for a complete look.
If you use the wrong size or type, your door may sag or not close right.
Wide throw hinges help doors open fully or clear thick moldings.
Always check the manufacturer's guide for the best fit.
Stainless steel hinges from Wuxi GMB International Corporation offer strong support and long-lasting performance. You can find many types and sizes to match your project, whether you need a new lock cylinder or a stylish door handle. Choosing the right hinge ensures your doors and cabinets work well and look great.
Before you install new stainless steel hinges, you need to remove the door or cabinet safely. This step helps you avoid damage and makes the installation process easier. Start by clearing your workspace. Move any items that might cause you to trip or get in the way.
Tip: Always wear safety goggles and gloves. These protect your eyes from flying debris and your hands from sharp edges.
When you work with cabinet doors, unscrew the brackets so the hinges stay attached to the doors. For heavy doors, ask someone to help you lift. Use a screwdriver or power drill to remove the screws from the hinges. Keep all screws in a small container for easy reassembly. If you see caulk or paint around the edges, use a utility knife to cut through it. This prevents damage to the wood or finish.
Remove shelves by lifting them off support pegs or unscrewing brackets.
Place temporary supports under cabinets to prevent them from falling.
For glued cabinets, gently pry at several points and keep a firm grip.
Label parts and protect your floors with drop cloths or cardboard.
Once you detach the door or cabinet, you can focus on removing the old hinges. This step prepares the surface for your new stainless steel hinges from Wuxi GMB International Corporation.
Scrape away any paint around the screw slots and hinge edges with a utility knife.
Clean up paint chips and dust using a HEPA-filter vacuum.
If paint covers the screws, apply a mild paint stripper and remove the loosened paint gently.
Tap the screwdriver lightly with a wood mallet to break the paint's grip on the screws.
Remove the screws and gently pry the hinge away from the door or cabinet.
If the hinge feels stuck, cut around the hinge leaves with a utility knife and apply a small amount of penetrating oil.
Removing old hinges with care keeps your door, cabinet, and frame in good condition. This step also helps you prepare for a smooth installation of new hardware, such as a door lock or door handle, for a complete upgrade.
By following these steps, you set the stage for a successful installation of high-quality stainless steel hinges and related hardware. For more options, explore the full range of hinges and furniture fittings at Wuxi GMB International Corporation.
Accurate marking is the foundation for a smooth hinge installation. You want your stainless steel hinges to line up perfectly so your door or cabinet opens and closes without trouble. Start by gathering your measuring tape, pencil, ruler, and a marking gauge. These tools help you make precise marks and avoid mistakes.
Measure from the top edge of the door down 5 to 7 inches for the top hinge. Mark this spot with a sharp pencil.
Measure up 10 to 11 inches from the bottom edge for the bottom hinge. Mark this point as well.
If your door is tall or heavy, add a third hinge halfway between the top and bottom marks.
Use a ruler or straight edge to draw a line across the edge of the door at each mark. This keeps your hinges level.
Hold the hinge against the door at each mark. Trace around the hinge with your pencil to outline the mortise area.
Use a marking gauge or utility knife to score the outline. This helps guide your chisel later.
Tip: Double-check your measurements before you start drilling. Compare your marks with the manufacturer's instructions for your specific hinge model.
Proper alignment ensures your door or cabinet works smoothly and lasts longer. After marking, you need to check that each hinge sits flush and lines up with the frame.
Place the door in its opening using shims to hold it steady.
Position the hinge at your marked spots. Make sure the hinge leaf sits flat against the door and frame.
Use a pencil to mark the screw holes on both the door and the frame. Check that the hinge is level before marking.
Drill pilot holes at each mark. Use a drill bit slightly smaller than your screws to prevent splitting the wood.
For inset hinges, keep the door flush with the cabinet frame before marking and drilling.
After attaching the hinges, close the door and check for even gaps and smooth movement. Adjust the hinge position if needed.
Wuxi GMB International Corporation offers a wide range of stainless steel hinges, door locks, and door handles designed for easy installation and long-lasting performance. Careful measuring and marking help you achieve a professional result every time. For more hinge options and related hardware, visit the Wuxi GMB International Corporation hinge catalog.
You need to mortise when you want your stainless steel hinges to sit flush with the door and frame. Mortising means cutting a shallow recess so the hinge fits inside the wood. This method gives your door a clean, professional look. It also helps the door close tightly and move smoothly. If you use mortise hinges without cutting a recess, the door may not close right or could stick out from the frame. This can cause strain on the hinge and shorten its life.
Mortising is especially important for heavy doors, exterior doors, or in places with high humidity. Stainless steel mortise hinges resist rust and last longer in these tough environments. When you mortise, you also hide the hinge pins when the door is closed. This adds extra security and keeps your door looking neat. Surface-mounted hinges are easier to install, but they do not support as much weight and are more visible.
Tip: For a sleek finish and strong support, always mortise your hinges on entry doors, cabinets, and anywhere you want a flush fit.
Follow these steps to mortise your door or cabinet for stainless steel hinges:
Measure the width of your hinge from the center to the edge. Subtract 1/32 inch to mark the mortise width from the frame edge.
Place the hinge on the door or frame at your marked spot. Trace around the hinge with a sharp pencil or knife.
Set a marking gauge to the thickness of the hinge leaf. Mark the mortise depth on the door or frame.
Score the outline with a utility knife to make a clean edge.
Use a sharp chisel or a plunge router to remove wood inside the outline. Work slowly and check the depth often.
Test fit the hinge in the mortise. The hinge should sit flush with the surface.
Hold the hinge in place and mark the screw holes.
Drill pilot holes for the screws. Use a self-centering bit for best results.
Secure the hinge with stainless steel screws.
Repeat the process on the matching part of the frame or cabinet.
You can find high-quality stainless steel hinges, door locks, and door handles at Wuxi GMB International Corporation. Their products help you achieve a perfect fit and long-lasting performance for any door or cabinet project. For more options, explore their full range of furniture hardware and ball bearing slides to complete your installation.
Drilling pilot holes is a key step when you install stainless steel hinges. You want your screws to go in straight and hold tight. The right drill bit and method make a big difference.
Use a 17/64" drill bit for the clearance hole. This size works well for most stainless steel hinges.
Pick cobalt drill bits with a 135-degree split point. These bits cut through stainless steel smoothly and last longer.
Add cutting or tapping oil to your drill bit. This reduces heat and helps the bit move through the metal without wearing out.
If you have a drill press, use it for better control and accuracy. Keep your hands safe by not wearing gloves while drilling.
For the countersink, choose a diameter of at least 1/2". This lets the screw head sit flush with the hinge.
Tip: Always keep your drill perpendicular to the wood or metal. This helps you avoid crooked holes and keeps your hinges lined up.
You want to protect your door or cabinet from cracks when you drill. Splitting can weaken the wood and make your stainless steel hinges less secure. Follow these steps to keep your project strong:
Choose a drill bit that is slightly smaller than the screw threads but larger than the screw core. This lets the screw grip the wood without forcing it apart.
Use a center punch to make a small dent before you drill. This keeps the bit from slipping and helps you start the hole in the right spot.
Drill slowly and use steady pressure. Fast drilling can cause the wood to split or the bit to wander.
Clean out sawdust and chips from the hole as you drill. This helps the screw fit better and prevents weak spots.
Apply beeswax to your screws. This reduces friction and makes it easier to drive the screw in without splitting the wood.
If you have a bench drill press, use it for even more control and precision.
Note: Tapered drill bits made for wood screws can help reduce splitting. You can also use a bradawl to start small pilot holes, especially for lighter cabinet doors.
Using these tips, you can install stainless steel hinges from Wuxi GMB International Corporation with confidence. Your doors and cabinets will stay strong and look professional. For more hardware options, check out their door lock and door handle collections to complete your project with quality and style.

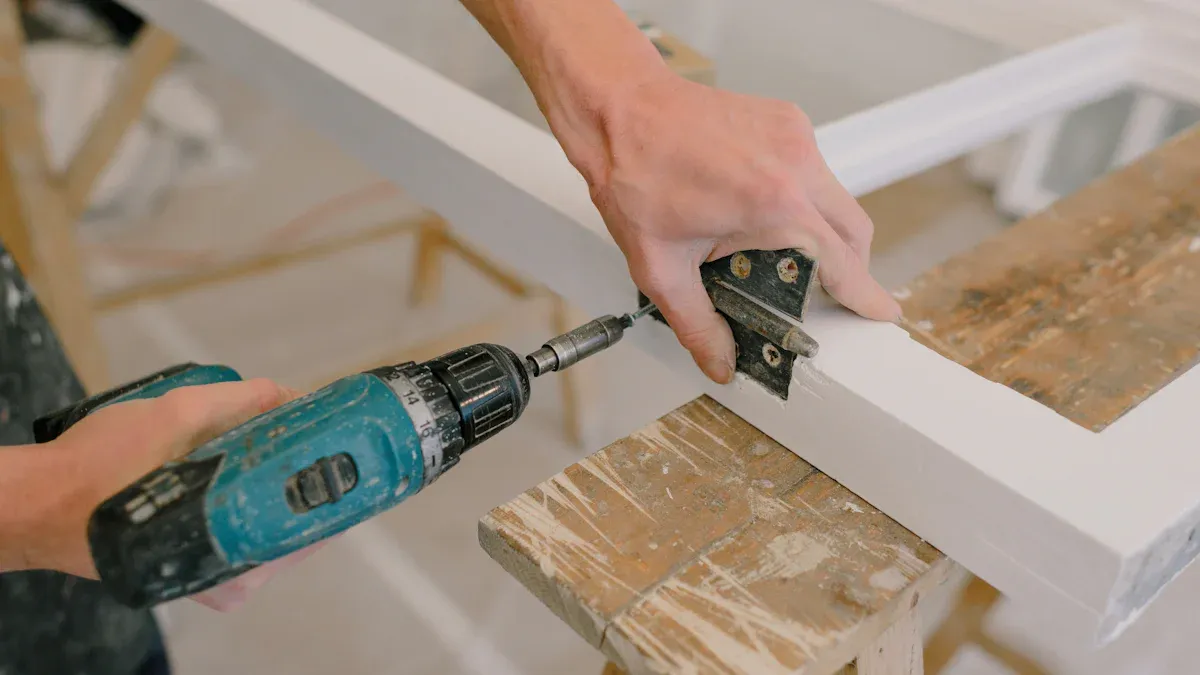

You can start by attaching the hinges to your door or cabinet. This step is important for a flush fit and smooth movement. Follow these steps for the best results:
Place the hinge at your marked spot on the door or cabinet. Make sure the hinge lines up with your marks and sits flat.
Use a pencil to mark the screw holes through the hinge. Double-check that the hinge is level before you move on.
Drill pilot holes at each mark. Use a drill bit that is slightly smaller than your screws. This helps prevent the wood from splitting.
For inset hinges, use a chisel to create a shallow recess so the hinge sits flush with the surface.
Align the hinge with the pilot holes. Secure it with screws. Tighten the screws until the hinge feels snug, but do not overtighten.
Repeat these steps for each hinge on the door or cabinet.
Tip: If you see any old holes or gaps, fill them with wood filler. Let it dry and sand it smooth before you attach the new hinge.
You can make small adjustments by loosening or tightening the screws. This helps you get the best fit. If the hinge pin feels stiff, add a drop of lubricant to keep it moving smoothly.
After you attach the hinges to the door or cabinet, you need to secure them to the frame. This step keeps your door or cabinet strong and safe.
Hold the door or cabinet in place. Use shims or a door lifter to keep it steady.
Line up the hinge leaves with your marks on the frame. Make sure the door sits straight and level.
Mark the screw holes on the frame through the hinge. Check that the hinge is flush with the frame.
Drill pilot holes at each mark. This step helps the screws go in straight and keeps the wood from splitting.
Attach the hinge to the frame with screws. Tighten each screw until the hinge feels secure.
Close the door or cabinet and check for smooth movement. Open and close it several times to make sure it works well.
Note: If the door does not sit flush or feels crooked, adjust the screws or use hinge shims to fix the alignment.
The type of screw you use matters for strength and durability. Here is a quick guide:
Screw Type | Best Use |
|---|---|
Stainless Steel | Outdoor or heavy-duty use, resists rust |
Wood Screws | Attaching hinges to wooden doors and frames |
Machine Screws | For metal doors or frames |
Self-tapping Screws | Quick installs, creates its own hole |
Pick screws that match your hinge and door material. Stainless steel screws work best with stainless steel hinges, especially for outdoor or high-moisture areas. For heavy doors, use longer screws that reach into the wall stud for extra support.
You can improve security by installing hinges on the inside of the door or cabinet. This makes it harder for someone to tamper with the hinge pins. Concealed hinges or security hinges with interlocking tabs add even more protection. These features help prevent forced entry and keep your belongings safe.
Concealed hinges stay hidden when the door is closed.
Security hinges have tabs that stop the door from being removed, even if someone takes out the hinge pins.
Heavy-duty hinges resist bending and forced entry.
Tip: Always check that your hinges are tight and your screws are not loose. Retighten them if needed to keep your door or cabinet secure.
After you finish installing the hinges, test the door or cabinet. Open and close it several times. Watch for any sticking or rubbing. If you notice any problems, adjust the screws or hinge position.
You can also:
Remove the hinge pins and clean them if needed.
Apply a thin layer of lubricant to the pins and moving parts.
Reinsert the pins and check that everything moves smoothly.
Inspect the hinges for signs of wear or rust. Clean and lubricate them regularly to keep them working well.
If you want a complete upgrade, consider adding a new door lock or door handle from Wuxi GMB International Corporation. Their products match well with stainless steel hinges and help you create a secure, stylish finish.
Remember: Careful installation and regular checks help your hinges last longer and keep your doors and cabinets working their best.
You have installed your stainless steel hinges. Now you need to hang the door or cabinet back in place. This step requires care and attention to detail. Follow these best practices to make sure your door or cabinet sits level and works smoothly:
Clear your workspace and remove any obstacles. Clean the surfaces where you will work.
Gather all your tools and hardware. Keep screws, shims, and a screwdriver within reach.
Hold the door or cabinet in position. Use shims or a door lifter to keep it steady and at the right height.
Align the hinges with the marks on the frame. Make sure the hinge pins line up for smooth movement.
Attach the hinges to the frame using the screws. Start with the top hinge, then move to the bottom.
Check the alignment as you go. Use a level to make sure the door or cabinet does not tilt.
Hang one door first. Test its fit and movement before you attach more doors.
Install handles or knobs with careful measurements for a balanced look.
Tighten all screws and fasteners. Make sure everything feels secure.
Tip: If you notice gaps or unevenness, adjust the shims or hinge screws until the door sits perfectly.
After you hang the door or cabinet, you need to test its movement. This step helps you catch any problems early and ensures a professional finish:
Slowly open and close the door several times. Listen for squeaks or resistance.
Check the gap between the door and the frame. The gap should look even on all sides.
If the door sticks or scrapes, loosen the screws slightly. Adjust the hinges until the door moves freely.
Tighten the screws again, but do not overtighten.
Lubricate the hinges with a silicone-based spray if you hear squeaking.
Wipe away extra lubricant to keep the area clean.
Inspect the hinges and screws. Replace any stripped screws with longer ones for extra support.
Test the door lock and door handle to make sure they work smoothly with the new hinges.
Regular checks and small adjustments help your stainless steel hinges last longer. For more reliable furniture hardware, explore the full range of hinges, door handles, and ball bearing slides from Wuxi GMB International Corporation.
You may notice a few problems after installing stainless steel hinges. Here are some of the most common issues and how you can fix them:
Rust or Corrosion: Even though stainless steel resists rust, moisture or harsh environments can still cause problems. Remove any rust with a wire brush or a rust remover. Apply a rust-inhibiting primer if needed.
Misaligned Hinges: If your door does not close right, check the alignment. Tighten loose screws or replace them with longer ones for better grip.
Loose Hinges: Screws can loosen over time, especially on heavy doors. Tighten all screws. Fill any stripped holes with wood filler and use longer screws.
Squeaking or Binding: Hinges may squeak or stick. Clean the hinge and apply a silicone-based lubricant.
Sagging Doors: Heavy doors may sag if the hinges are not strong enough. Upgrade to heavy-duty hinges and use three hinges for tall doors.
Tip: Regularly inspect your hinges and hardware, such as door handles and lock cylinders, to keep everything working smoothly.
If your door drags or does not close properly, you can fix the alignment with these steps:
Problem | Solution |
|---|---|
Squeaking | Clean hinge, apply lubricant, move door to spread lubricant, wipe excess |
Loose Hinges | Tighten screws, fill stripped holes, use longer screws |
Binding/Dragging | Loosen screws, adjust door, tighten screws, add shim if needed |
You can also use a hinge tweaker to gently bend the hinge and realign the door. For stuck hinge pins, use a hinge pin popper and apply a drop of oil before reinserting.
Keep your stainless steel hinges clean to prevent damage and ensure smooth movement:
Wipe the hinges with a soft, damp cloth to remove dust.
For tough grime, use a mild soap solution or a stainless steel cleaner.
Dry the hinges completely to avoid water spots.
Apply a silicone spray for lubrication and rust protection.
Avoid steel wool or harsh chemicals, which can scratch or damage the finish.
Note: For outdoor or heavy doors, reinforce your hinges with longer screws and consider using hinge bolts or security hinges for extra strength. EPDM rubber gaskets can help protect against moisture and extend hinge life.
You can put in hinges easily if you follow these steps. Begin with the correct tools and pick good hardware. Always check that your hinges line up right. Wuxi GMB International Corporation has strong products for every job, like door handles and lock cylinders. For safe and neat work, use trusted items and ask for help or special advice if you need it.
Want to make your doors or cabinets better? Contact Wuxi GMB International Corporation for help that fits your needs.
You should measure the thickness and weight of your door or cabinet. Pick a hinge that matches these needs. For heavy doors, use ball bearing hinges. For cabinets, concealed hinges work best. Always check the product details on Wuxi GMB International Corporation's hinge page.
Yes, you can use stainless steel hinges outdoors. Stainless steel resists rust and moisture. This makes it a great choice for exterior doors, gates, and outdoor cabinets. For extra protection, pair your hinges with weather-resistant door locks and handles.
Apply a silicone-based lubricant to the hinge pin. Open and close the door several times to spread the lubricant. If the squeak continues, check for loose screws or misalignment. Tighten the screws and test the door again.
You should use stainless steel screws with stainless steel hinges. This prevents rust and ensures a strong hold. For heavy doors, use longer screws that reach into the frame. Always match the screw type to your door material for best results.
You can find matching door handles, lock cylinders, and ball bearing slides at Wuxi GMB International Corporation. Their catalog offers a wide range of furniture hardware. This helps you create a complete and stylish look for your doors and cabinets.
Tel: +86-510-8271 7656
Fax: +86-510-8271 7655
Email: info@gmbsino.com
Address: 4FL, No.503-1 Nanhu Road,
Sensing Device Industrial Park,
Liangxi District,Wuxi, Jiangsu,
China 214024
