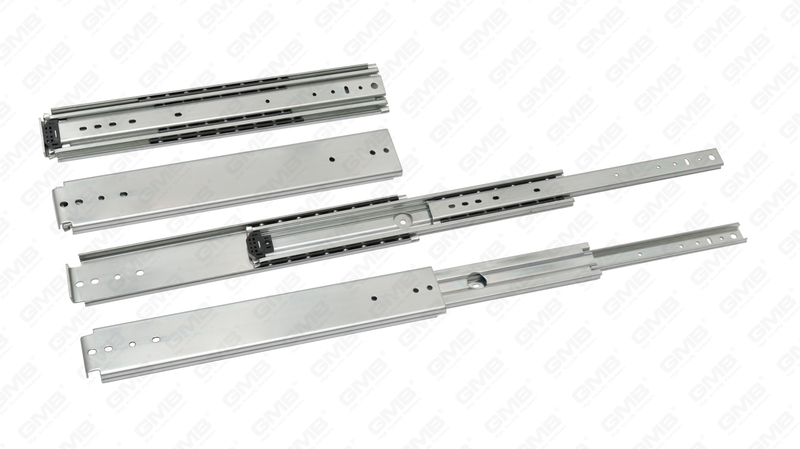

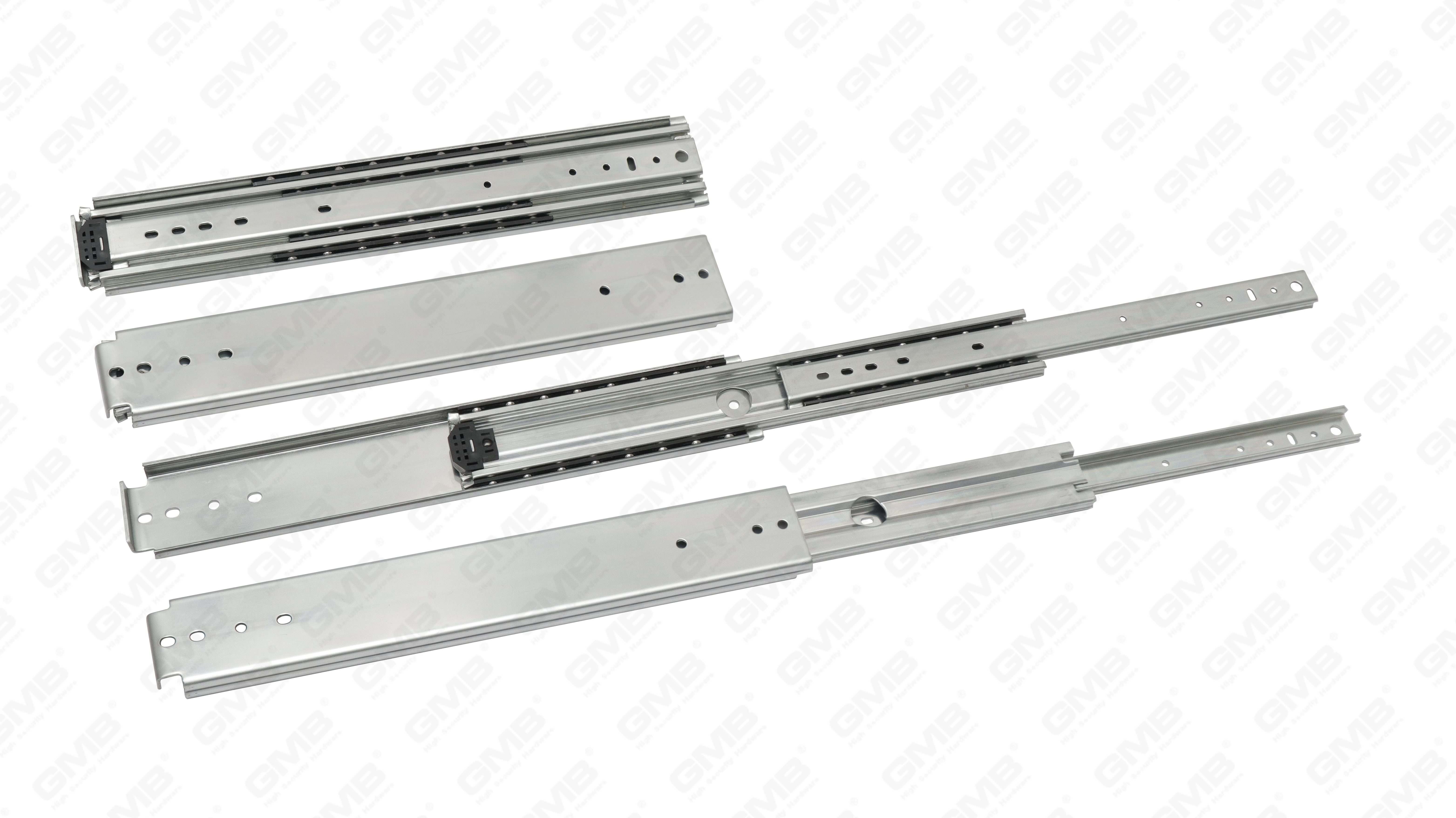

Extra Heavy Duty Full Extension Ball Bearing Drawer Slide (GMB7603)

Availability:
Quantity:
  • 7603

Product Description

Extra Heavy Duty Full Extension Ball Bearing Drawer Slide (GMB7603)


Basic Info.

Model NO.:GMB7603
Slide Type:Steel Ball Type
Condition:Used
Transport Package:Carton/Pallet
Specification:8"-60"
Trademark:GMB
Origin:China
HS Code:83024200

Production Capacity:2, 000, 000 Pairs/Year

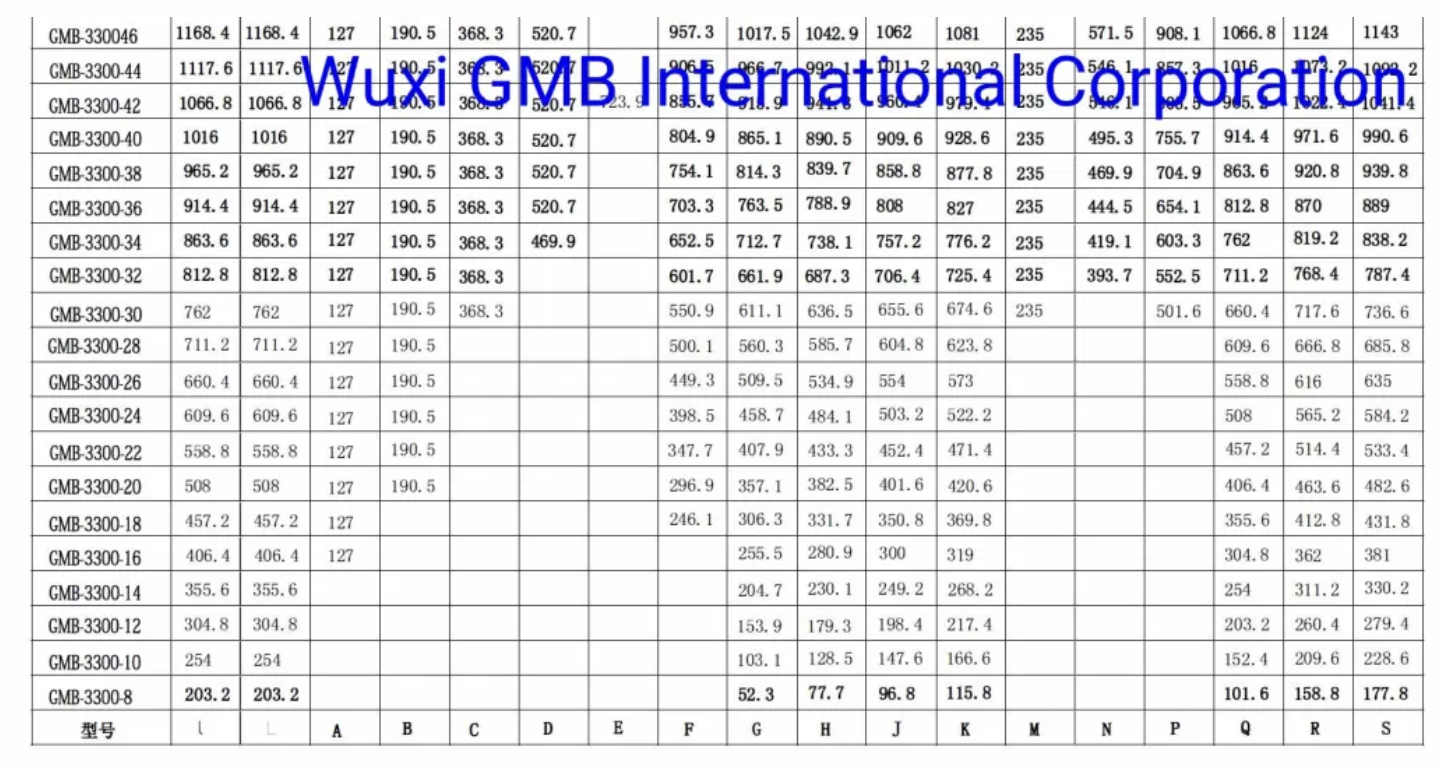

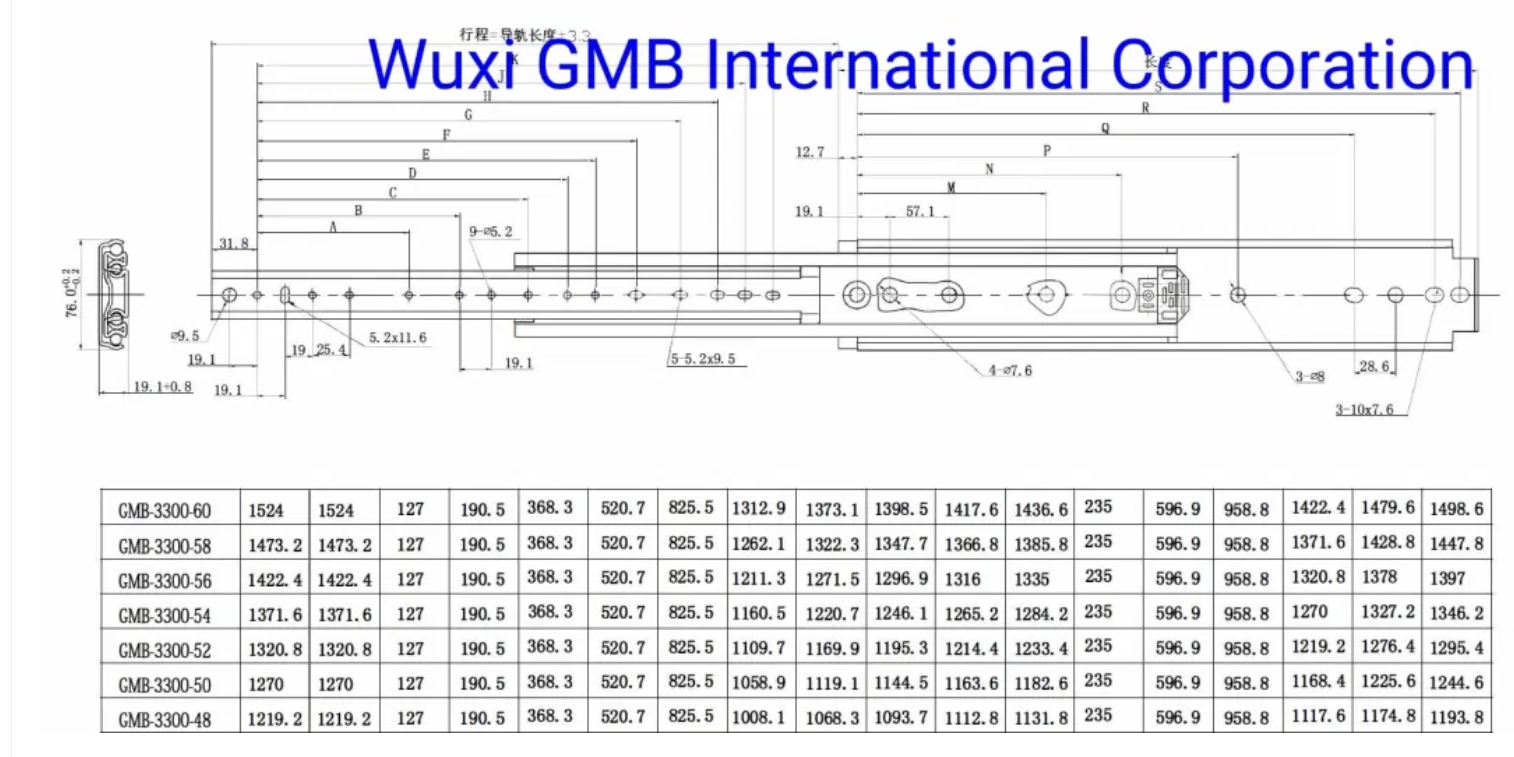

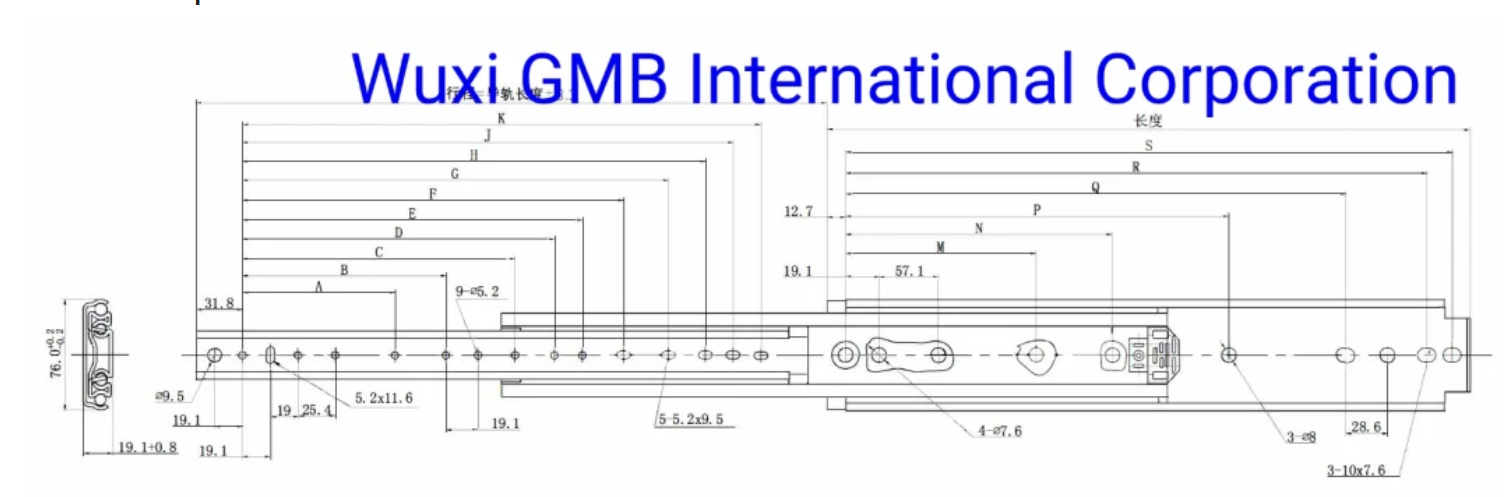

I-DS-3300-XX SERIES SLIDE-2QQ截图20240910161353QQ截图20240910161443QQ图片20240910161424

Material:           2.5mm Hardened Cold Roller Steel Plate
Finish:              Bright electro-zinc (C) Plating, RoHS Compliant is available.
Lengths:           Even lengths 8" - 60"
                        Even lengths 203.2 mm - 1524.0mm
Travel:              Full Extension
Height:             3.00" [76.2mm]
Load Rating:    Moderate Use   Up to 600 lbs. [272 kg] per pair
                       Frequent Use    Up to 480 lbs. [217 kg] per pair
                       Flat Mount         Up to 180 lbs. [81 kg] per pair
Mounting:        Side or flat
                       Optional accessory platform brackets available
Movement:      Steel ball bearings
Hardware:       Customer supplied mounting hardware
                        Metal Applications: 1/4" hex-head or pan head [M6 Euro] screw for .260"[6.6mm] holes;
                       or,hex-head or pan head [M5 Euro] screw for .203"[5.2mm] holes;
                       or, #10 carriage bolt for diamond and square-shaped holes.
                        Wood Applications: 1/4" lag or steel metal screw; or, #10 lag or sheet metal screw;
                       Maximum screw head of .190"[4.8mm] high by .500"[12.7mm] diameter necessary to clear
                       traversing slide members; or, #10 carriage bolt for diamond and square-shaped holes.
Features:         Bumperprovide extra silencing during drawer closure and opening.
                       Bridged ball spacer reduce migration and drag.
Hole Patent:    Standard or Special is available.
Moderate:       Up to 600 lbs [272 kg] per pair.
                       Load rating based on a 22" slide in a 24" wide drawer, cycled 15,000 times in a horizontal position.
Frequent:        Up to 480 lbs [217 kg] per pair.
                       Load rating based on a 22" slide in a 42" wide drawer, cycled 100,000 times in a horizontal position.
Flat:                 Up to 180 lbs [81 kg] per pair.
                       Load rating based on a 22" slide in a 32" wide drawer, cycled 15,000 times in a horizontal position.
CAUTION:      This slide should never be used as a pull-out step platform or any other application supporting human weight
                       as injury may result.


Introducing the Extra Heavy Duty Full Extension Ball Bearing Lock-in/Lock-out Drawer Slide (GMB-7603A), a remarkable product that combines superior functionality with exceptional durability. Designed to meet the demands of cross-border e-commerce platforms, this drawer slide is the perfect solution for your storage needs.

Crafted with precision and expertise, this drawer slide is engineered to provide a seamless and effortless sliding experience. Its full extension feature allows for maximum accessibility, ensuring that you can easily reach items stored at the back of your drawers. With a lock-in/lock-out mechanism, you can securely keep your drawers in place or release them with a simple push, providing added convenience and safety.

The Extra Heavy Duty Full Extension Ball Bearing Lock-in/Lock-out Drawer Slide is built to withstand heavy loads and frequent use. Its robust construction ensures long-lasting performance, making it an ideal choice for commercial and industrial applications. Whether you are organizing your office supplies, tools, or kitchen utensils, this drawer slide can handle it all.

Featuring high-quality ball bearings, this drawer slide guarantees smooth and quiet operation. Say goodbye to noisy and frustrating drawer slides that disrupt your peace and productivity. With this product, you can enjoy a serene and efficient working environment.

Installation is a breeze with the Extra Heavy Duty Full Extension Ball Bearing Lock-in/Lock-out Drawer Slide. Its user-friendly design allows for quick and hassle-free assembly, saving you valuable time and effort. Rest assured, this drawer slide is designed to fit most standard drawer sizes, ensuring compatibility with your existing furniture.

In conclusion, the Extra Heavy Duty Full Extension Ball Bearing Lock-in/Lock-out Drawer Slide (GMB-7603A) is a top-notch product that combines industry expertise with marketing know-how. Its exceptional attributes, including full extension capability, lock-in/lock-out mechanism, and heavy-duty construction, make it a standout choice for any cross-border e-commerce platform. Upgrade your storage solutions today with this reliable and efficient drawer slide.
