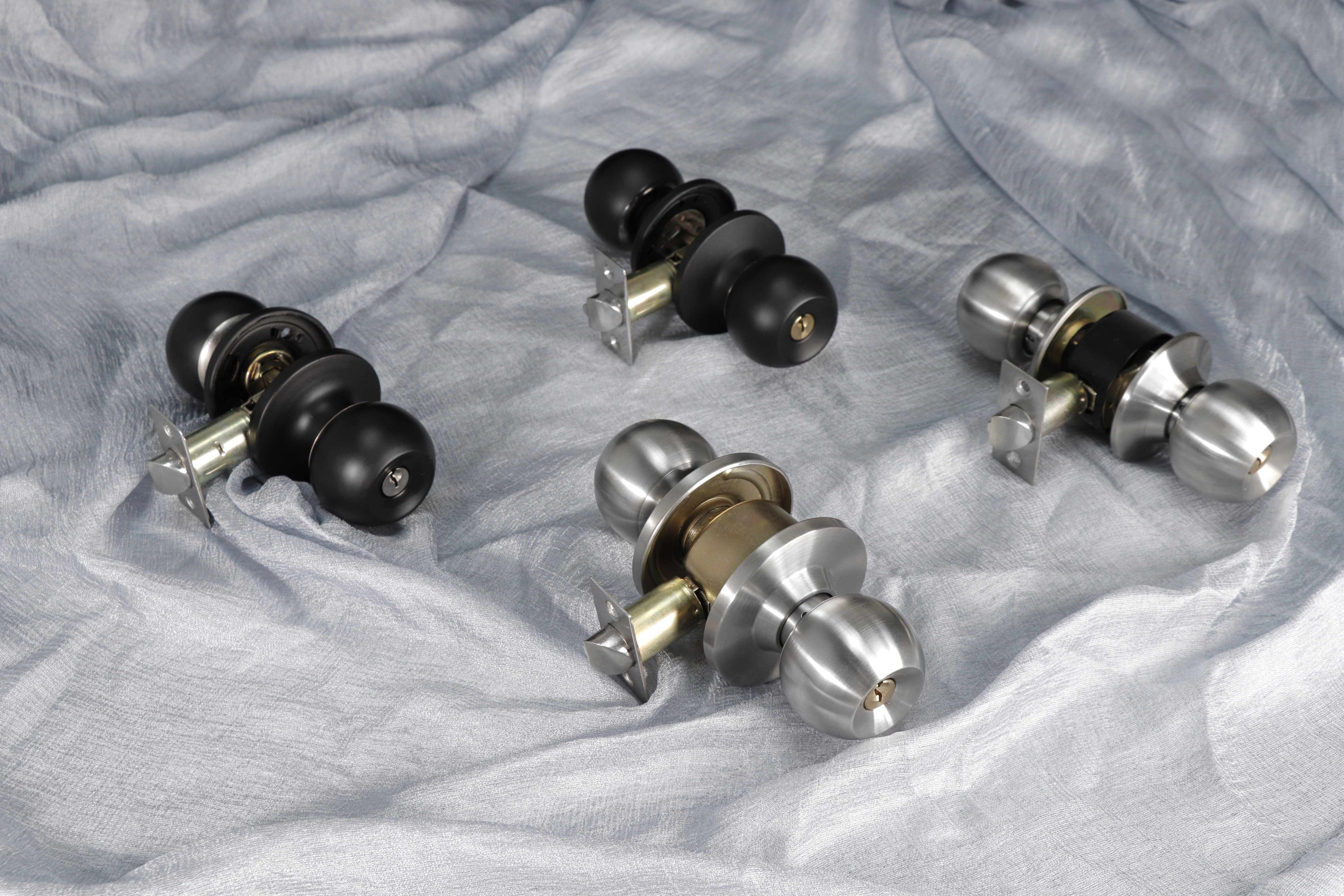

Cylinder knob removable for rekeying or replacement Special Design ANSI Standard Cylindrical Knob Lock Series (3301SS-ET)

3301SS-ET

Cylindrical Knob Series

Special Design for Standard Duty.

Meets with ANSI A156.2 Grade 3. Exceeds 200,000 cycles.

•      Door Prep: Cross bore 2-1/8" (54mm), edge bore 1" (25mm), latch face 1"x2-1/4"(25x57mm).

•      Door Thick: Fit doors 1-3/8" (35mm) to 2" (50mm) thick.

•      Backset: 2-3/4" (70mm) standard. 2-3/8" (60mm) optional.

•      Latch: 1/2" throw dead latch and spring latch.

•      Cylinder: 5-pin or 6-pin removable core, Schlage C Keyway or Kwikset or YALE or C4 keyway and other optional.

•      Faceplate: Changeable square comer 1"x2-1/4" (25x57mm) standard, radius comer also available.

•      Strike: T-shape 1-1/2"x2-3/4" (38x70mm) Square standard, radius comer also available.
