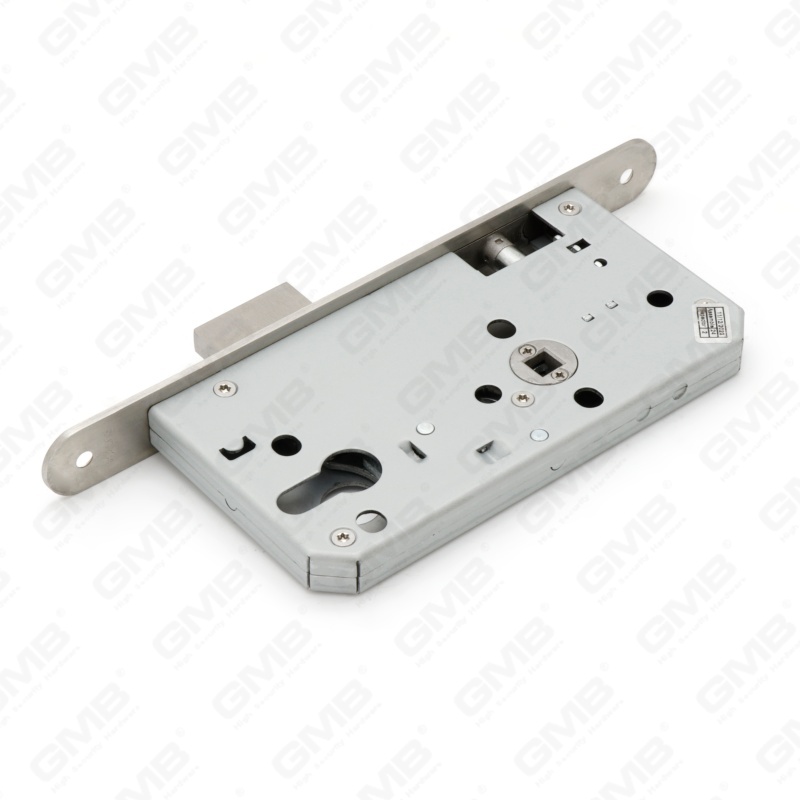

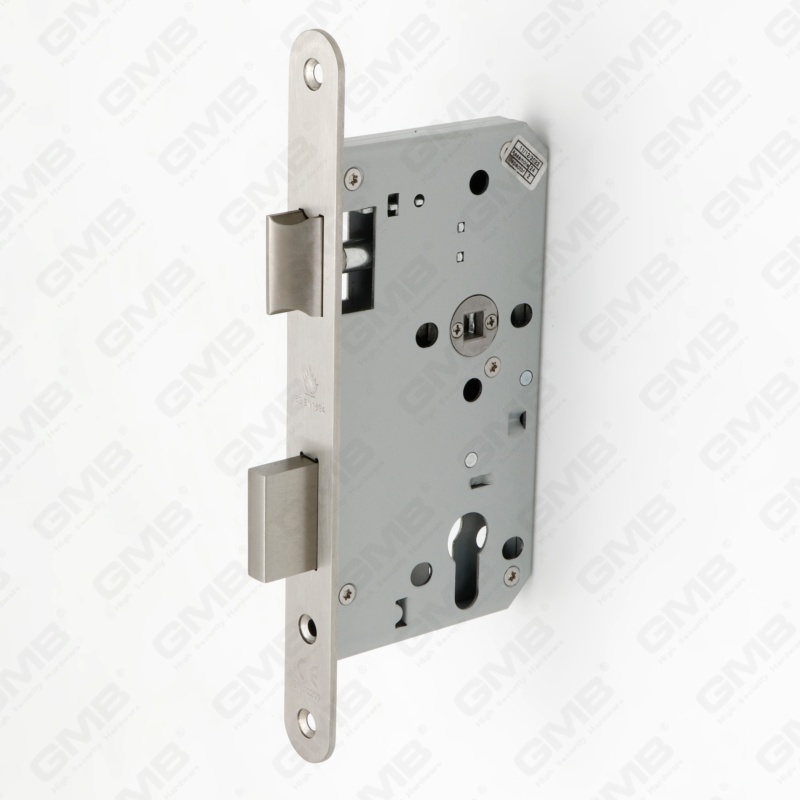

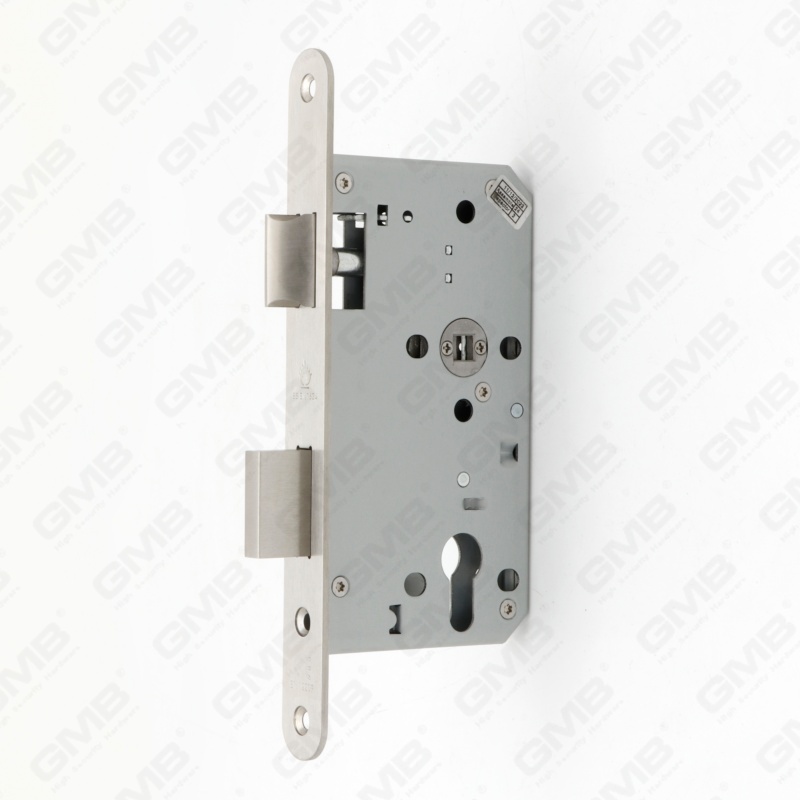

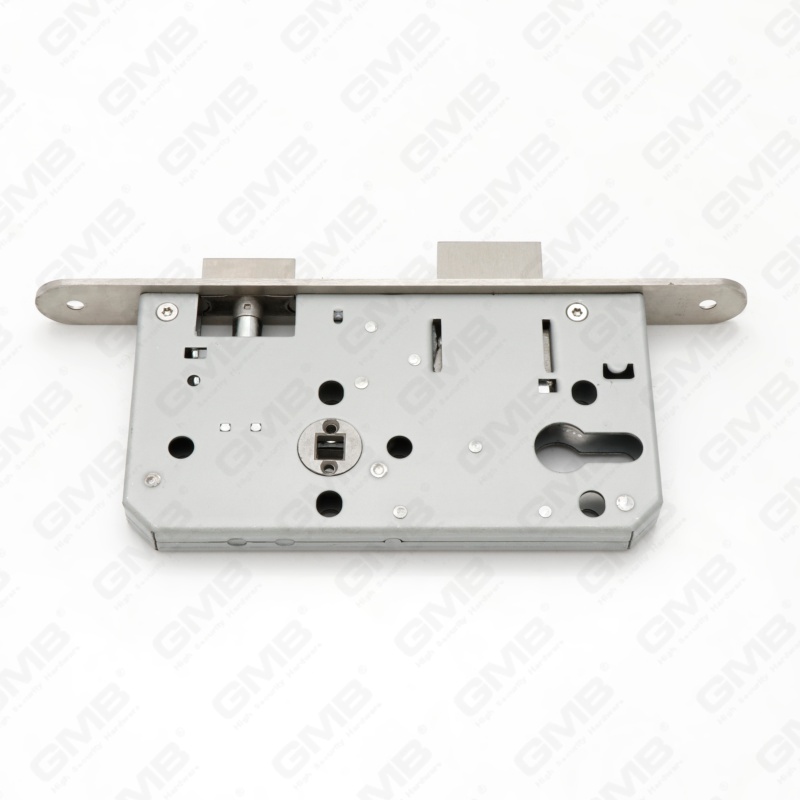

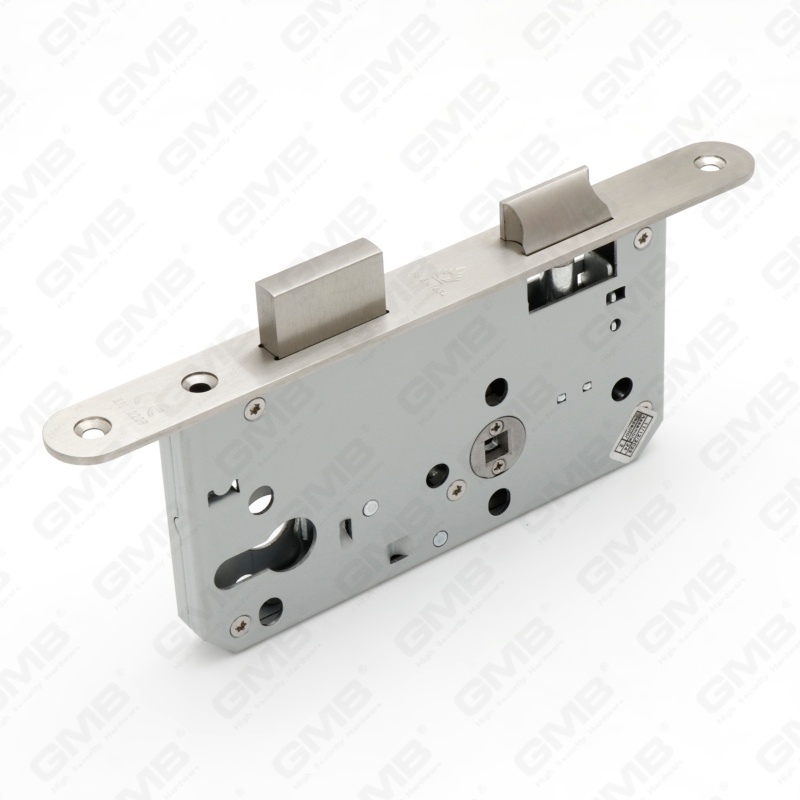

CE UL Standard Security Euro Fire Rated Sash SUS Stainless Steel Escape High Quality Mortise Door Lock (72ZE) (6072A-L/R)
| Quantity: | |
|---|---|
-
72ZE 6072A-L/R
| Art No. 72ZE Serise |
| High Quality Mortise Lock / Stalinless Steel Lock / Escape Lock |
| For Wooden or Steel Door |
| Optional for non-rebated doors |
| Suitable for external fire and smoke protection doors |
| Backset: 60mm |
| Centre Distance: 72mm |
| Forend type: Round Head, Square Head |
| Follower (casting): 8*8mm |
| Forend: SUS201, SUS304, SUS316, thickness 3.0mm |
| Striker: SUS201. SUS304, SUS316, thickness: 1.5mm |
| Forend Size: 235 x 20mm, 22mm, 24mm |
| Forend Finish: PSS, SSS, PVD, AB, AC, MB |
| Latch(casting): SUS304 (Durability: 200,000 cycles test, 120N load on latchy bolt) |
| Dead Bolt: SUS 304 (Durability: 50,000 cycles test), 1 throw |
| Lock Case Material: Electrolytic zinc steel SECC, thickness 1.5mm |
| Accessories: Strike plate (SS304), Pocket, Lock and strike fixing screws. |
| Compliance with EN12209 / EN1634-1 / DIN18251 |
| CE Classification (EN12209):3X910G3BC20 |
| Fire resistance test (EN1634-1): 260 mins (steel fire door) |
| 111 mins (timber fire door) |
Features
According to DIN 18.250 class 3
For wooden or steel doors
Suitable for external fire and smoke protection doors
Prepared for profile cylinders
With key action
Deadbolt 1-turns
Technical data
Follower:8x8mm
Distance:72mm
Backset:60mm
Forend
Type:round head, square head
Thickness:3mm
Width:20,24mm
Forend finish
Stainless steel:SSS PSS PVD

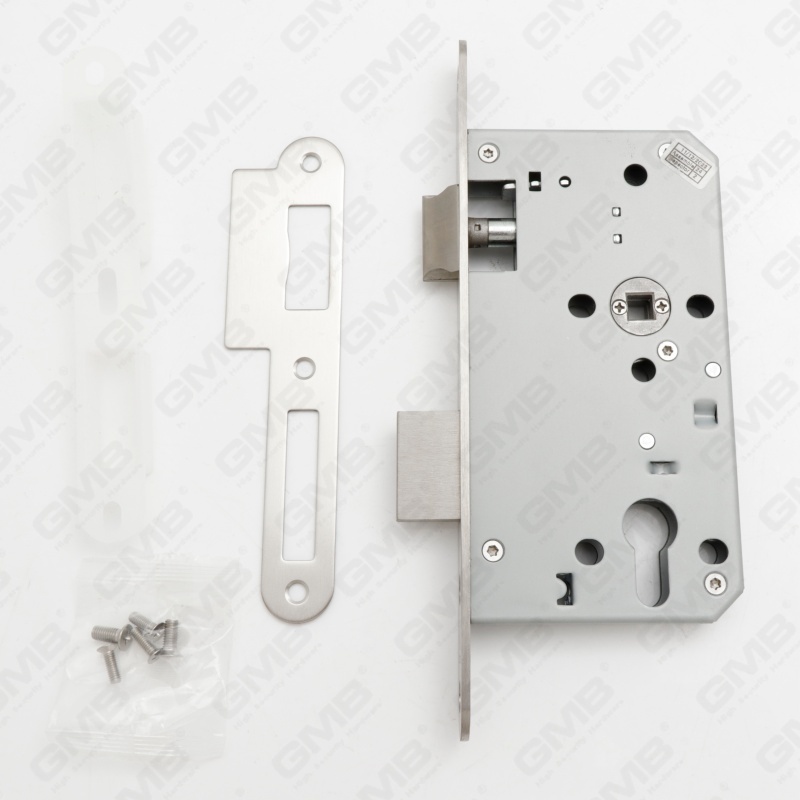

Accessories
Strike plate
Pocket
Lock and strike plate fixing screws
Function of use:
The lever/ Knob outside is at natural state,
When unlocked the door can be operated from outside by using key.
When unlocked the door can be operated from inside without key by pushing touchbar/handle,
the Escape side is in accord with Opening direction
The transformation of inside and outside by lockbody
How to reverse the escape function:
remove the screw1and screw 2 and then install
them into the reverse side of the lock!
The screws-fixing side is inside!
