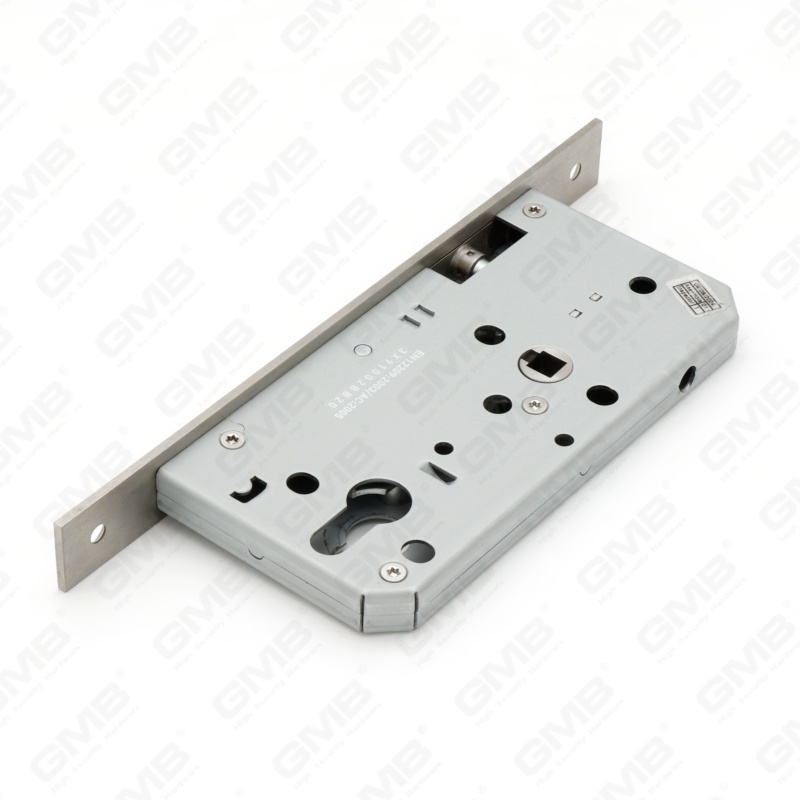

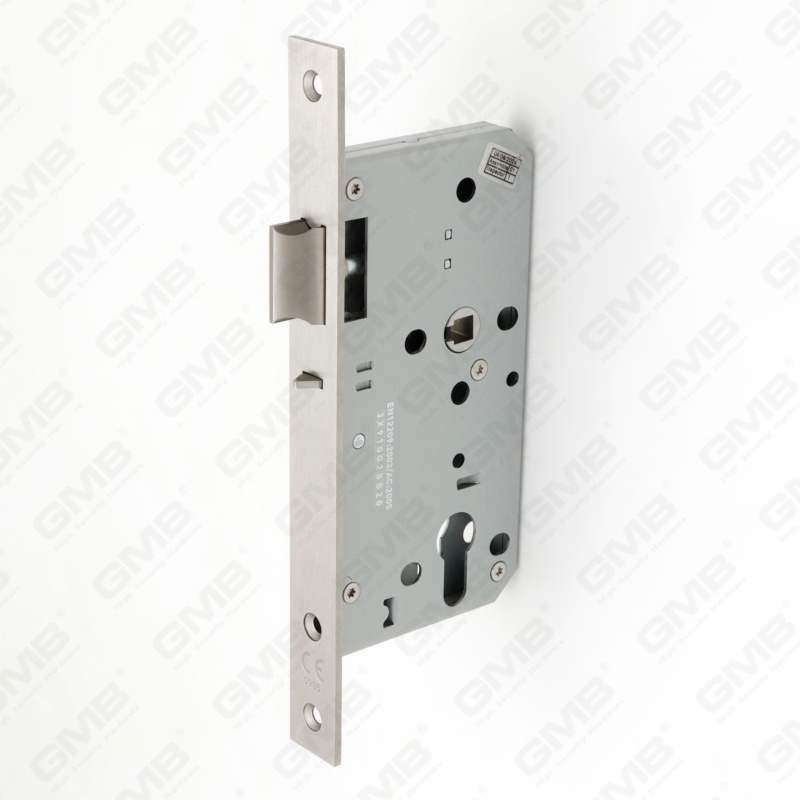

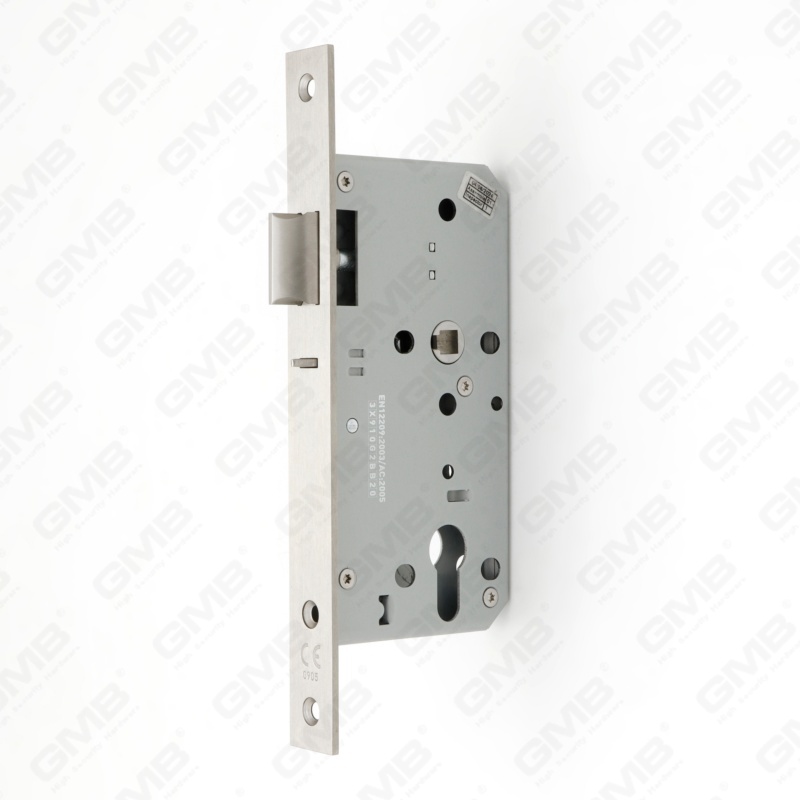

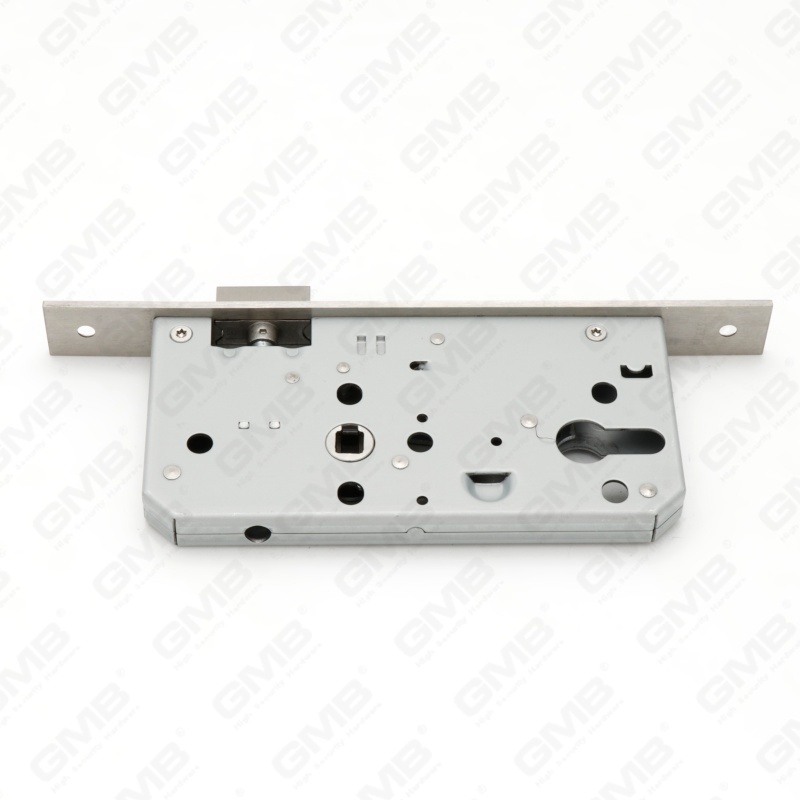

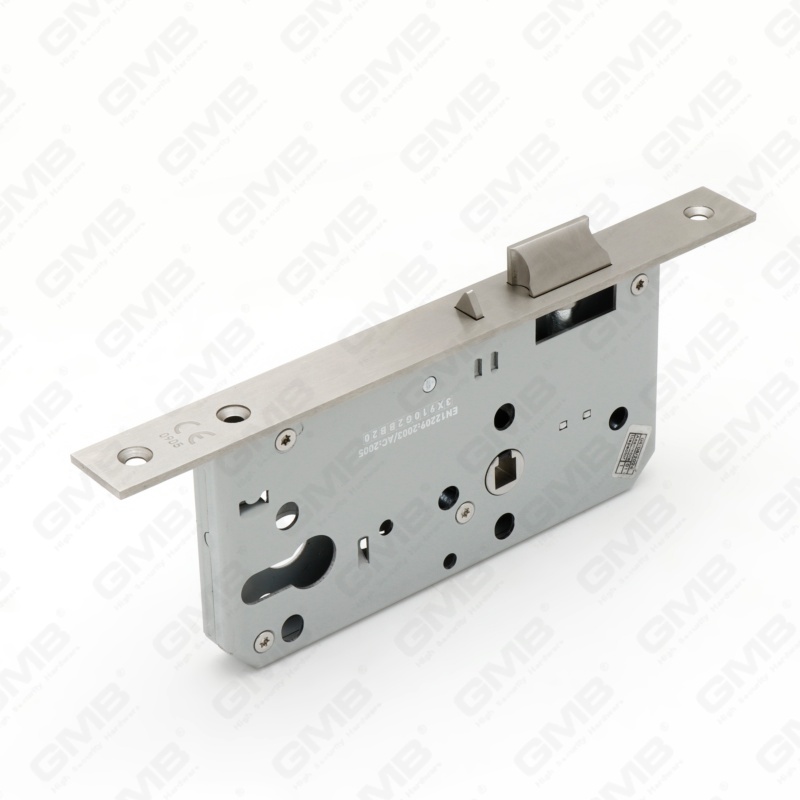

CE UL Standard Security Euro Fire Rated Sash SUS Stainless Steel Commerical High Quality Night Latch Mortise Door Lock (72NF) (6072NF)
| Quantity: | |
|---|---|
-
6072NF 72NF
Art No.6072NF
- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year
Features
According to DIN 18.250 class 3
For wooden or steel doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke protection doors
Suitable for doors where single action of escape is required
The door will be re-locked automatically when it's closed and the security will be ensured
Prepared for profile cylinders
With key action Latch bolt
Technical data
Follower:8x8mm
Distance:72mm
Backset:60mm
Forend
Type:round head, square head
Thickness:3mm
Width:20,24mm
Forend finish
Stainless steel:SSS PSS PVD

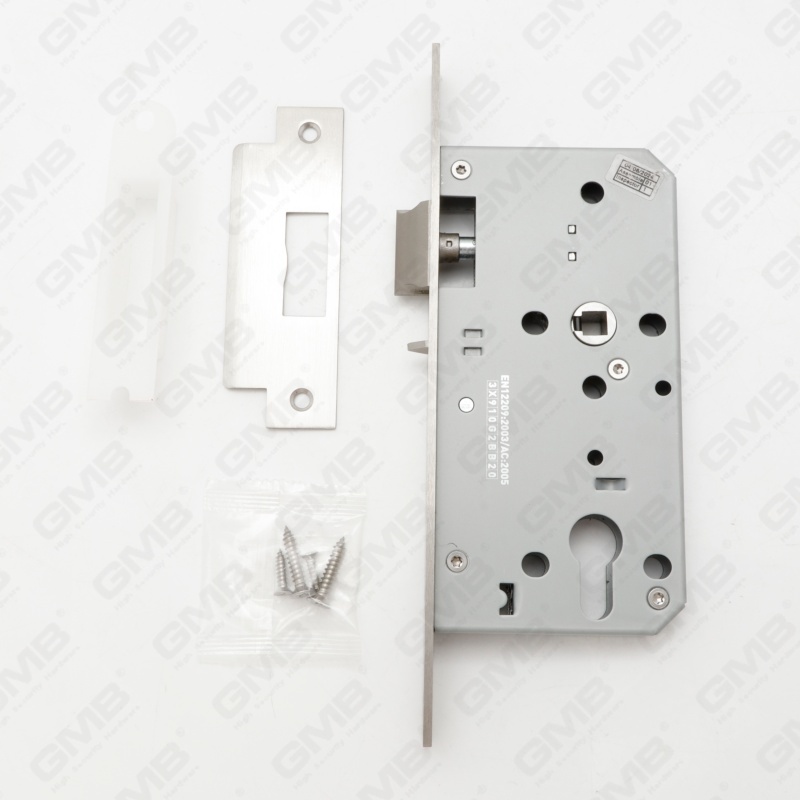

Accessories
Strike plate
Pocket
Lock and strike plate fixing screws
| Art No. 72NF Serise (Night Latch Lock) |
| High Quality Mortise Lock / Stalinless Steel Lock |
| For Wooden or Steel Door |
| Optional for non-rebated doors |
| Suitable for external fire and smoke protection doors |
| Suitable for doors where single action of escape is required |
| The Door will be re-locked automatically when its closed and the security will be ensured |
| Backset: 40mm, 45mm, 50mm, 55mm, 60mm, 65mm |
| Centre Distance: 72mm |
| Forend type: Round Head, Square Head |
| Forend: SUS201, SUS304, SUS316, thickness 3.0mm |
| Striker: SUS201. SUS304, SUS316, thickness: 1.5mm |
| Forend Size: 235 x 20mm, 22mm, 24mm |
| Forend Finish: PSS, SSS, PVD, AB, AC, MB |
| Lock Case Material: Electrolytic zinc steel SECC, thickness 1.5mm |
| Accessories: Strike plate (SS304), Pocket, Lock and strike fixing screws. |
| Compliance with EN12209 / EN1634-1 / DIN18251 |
| CE Classification (EN12209):3X910G2BB20 |
| Fire resistance test (EN1634-1): 260 mins (steel fire door) |
| 111 mins (timber fire door) |
Introducing the High Security Stainless Steel Mortise Door Lock Body, a premium solution for safeguarding your doors with utmost reliability and durability. Crafted with precision and engineered to perfection, this door lock body is designed to provide unparalleled security for your residential or commercial spaces.
Constructed from high-quality stainless steel, this mortise door lock body offers exceptional strength and resistance against tampering, ensuring the safety of your property. Its robust build guarantees long-lasting performance, making it an ideal choice for high-traffic areas that demand maximum security.
With its EN Certification, this door lock body meets the highest industry standards, assuring you of its quality and reliability. This certification signifies that the product has undergone rigorous testing and has met the stringent requirements set by European standards. Rest assured, this lock body is designed to withstand the test of time and provide you with peace of mind.
The mortise door lock body is meticulously engineered to provide a seamless and secure locking mechanism. Its advanced design ensures smooth operation, allowing you to effortlessly lock and unlock your doors. The precision-engineered components guarantee a snug fit, eliminating any potential gaps that could compromise security.
This door lock body is compatible with a wide range of doors, making it a versatile choice for various applications. Whether you need to secure your residential entrance or reinforce the security of your commercial premises, this lock body is the perfect solution.
Invest in the High Security Stainless Steel Mortise Door Lock Body and experience the pinnacle of security and reliability. With its exceptional build quality, EN Certification, and seamless operation, this lock body is a testament to our commitment to providing you with the best security solutions. Trust in our expertise and choose this mortise door lock body to safeguard your property with confidence.
