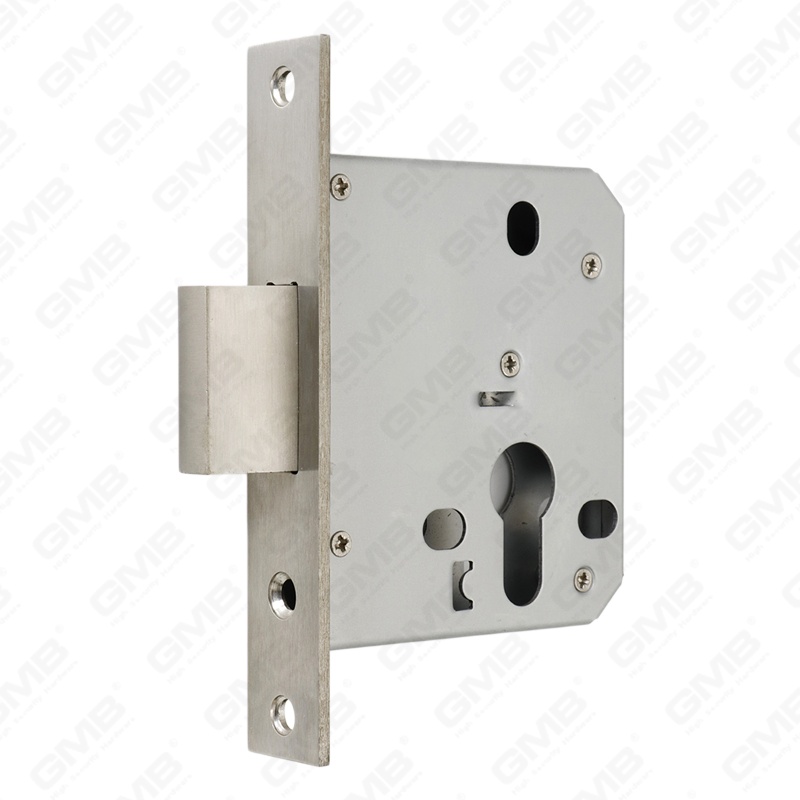

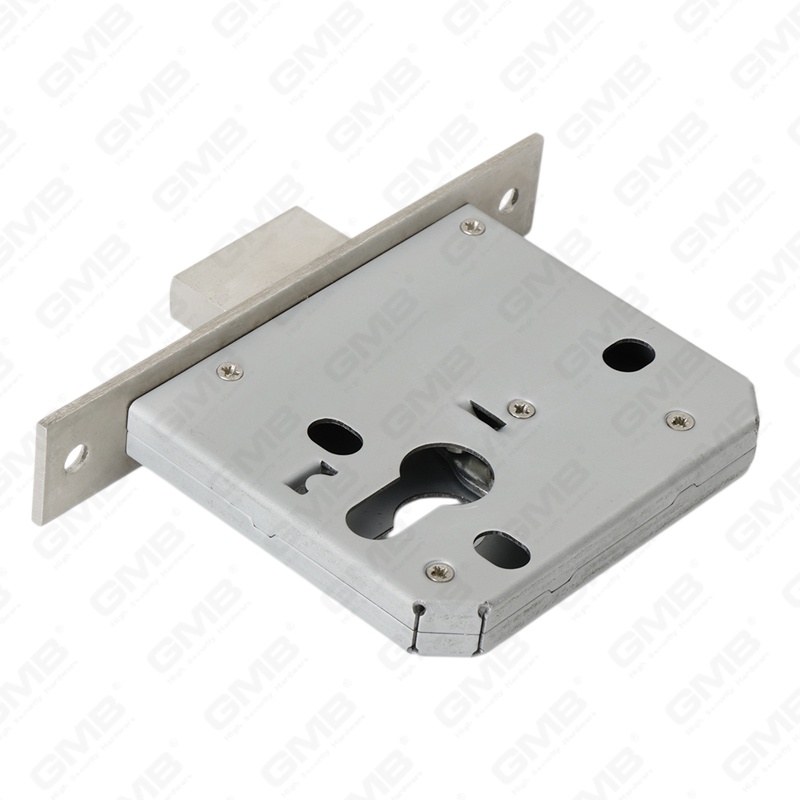

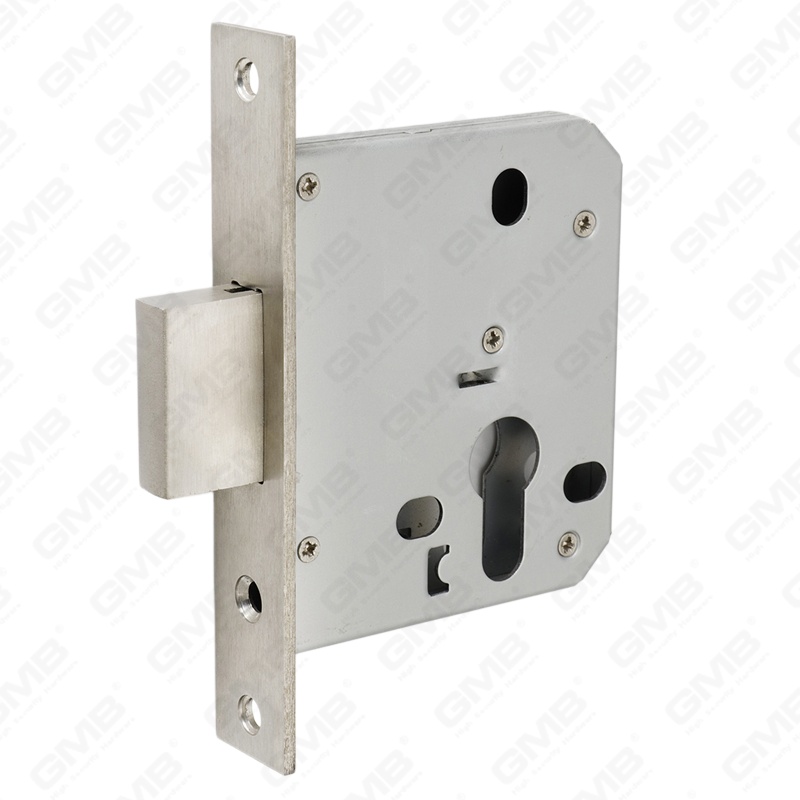

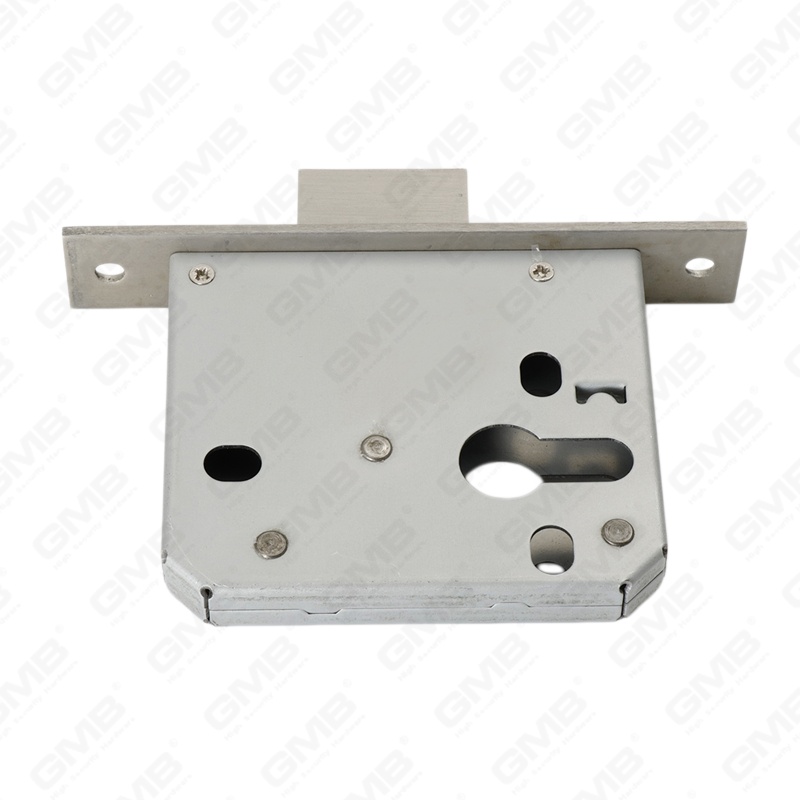

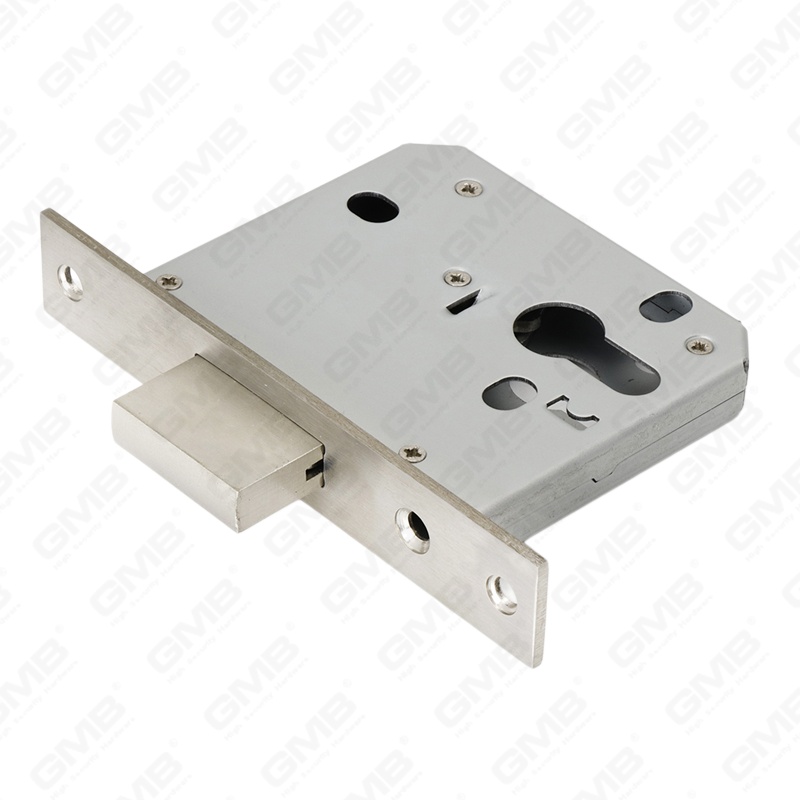

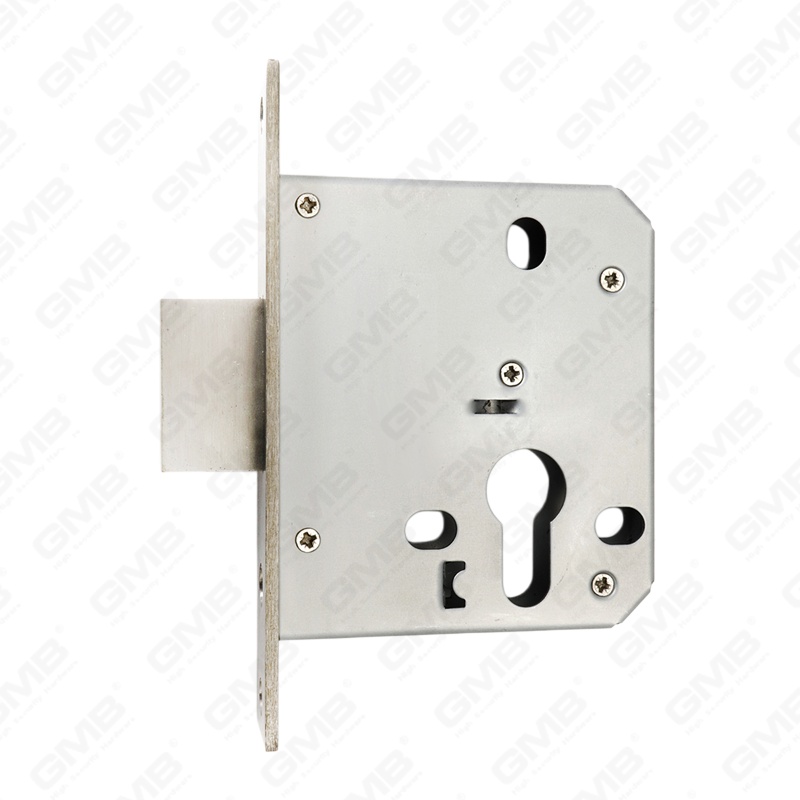

CE UL Standard Security Euro Fire Rated Sash SUS Stainless Steel Commerical High Quality Mortise Door Lock (55ZD 55D)
| Quantity: | |
|---|---|
-
55ZD 55D
Product Description
Art No.55ZD
- High Quality Mortise Lock / Stainless Steel Lock Body
- Quality Standard: EN12209
- Quality Guarantee: 10 Year
Features
According to DIN 18.250 class 3
For wooden or steel doors
Optional for non-rebated doors
Suitable for external fire and smoke protection doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
Technical data
Backset:55mm
Forend
Type:round head, square head
Thickness:3mm
Width:20, 22, 24mm
Forend finish
Stainless steel:SSS PSS PVD
Accessories
Strike plate
Pocket
Lock and strike plate fixing screws
| Art No. 55ZD |
| High Quality Mortise Lock / Stalinless Steel Lock |
| For Wooden or Steel Door |
| Optional for non-rebated doors |
| Suitable for external fire and smoke protection doors |
| Prepared for profile cylinder |
| With Key action |
| Deadbolt 2 turns |
| Backset: 55mm |
| Forend type: Round Head, Square Head |
| Forend material: SUS 201, SUS 304, SUS 316 |
| Forend Thickness: 3.0mm |
| Forend width: 20mm, 22mm, 24mm |
| Forend Finish: PSS, SSS, PVD, AB, AC, MB |
| Latch Material: SUS 304, SUS 316 |
| Dead Bolt Material: SUS 304, SUS 316 |
| Lock Case Material: Electrolytic zinc steel |
| Accessories: Strike plate (SS304), Pocket, Lock and strike fixing screws. |
