ANSI UL Standard Zinc Alloy/Aluminum Interior Door Lockset Tubular Commercial Cylindrical Security Handle Lever Lock (9270)
| Quantity: | |
|---|---|
-
9270
9270 Steel rosette+SS cover,exposed screws or concealed screws
F9270 Zinc alloy square rosette,exposed screws
Y9270 Zinc alloy round rosette,exposed screws

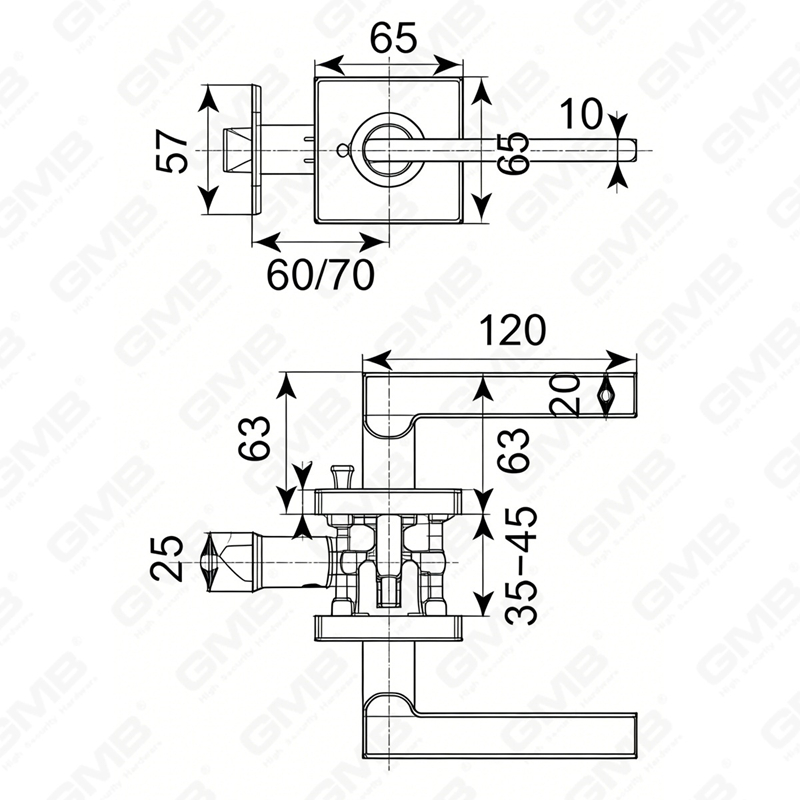

S9270 Zinc alloy square rosette,concealed screws

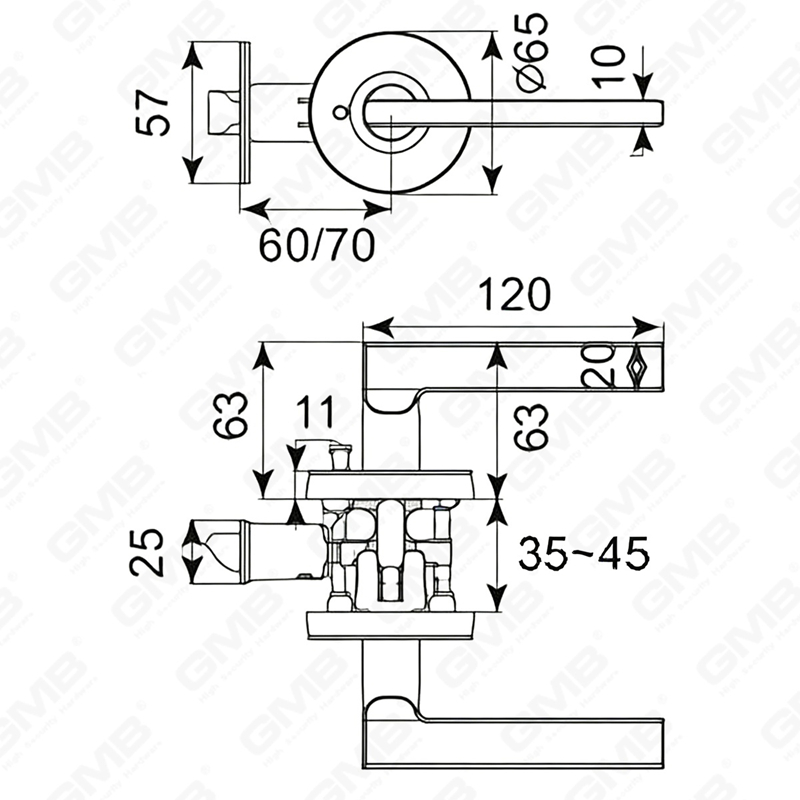

R9270 Zinc alloy round rosette,concealed screws
S9270 Aluminum square rosette,concealed screws
R9270 Aluminum round rosette,concealed screws
Function: Privacy / Passage / Dummy
Material: Aluminum
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors

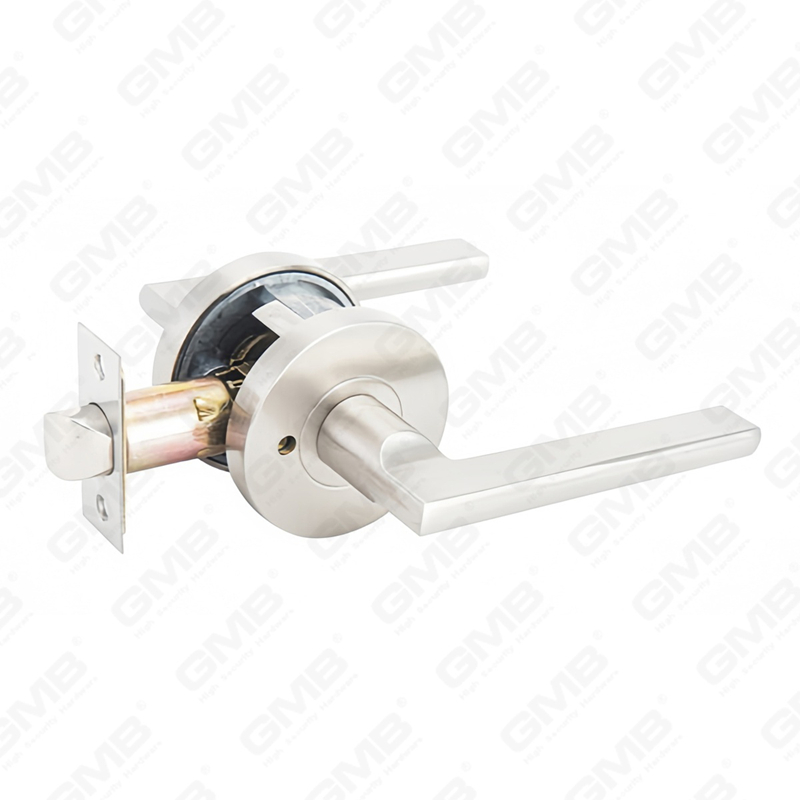

R9270BK
Function: Privacy lock
R9270PS
Function: Passage lock

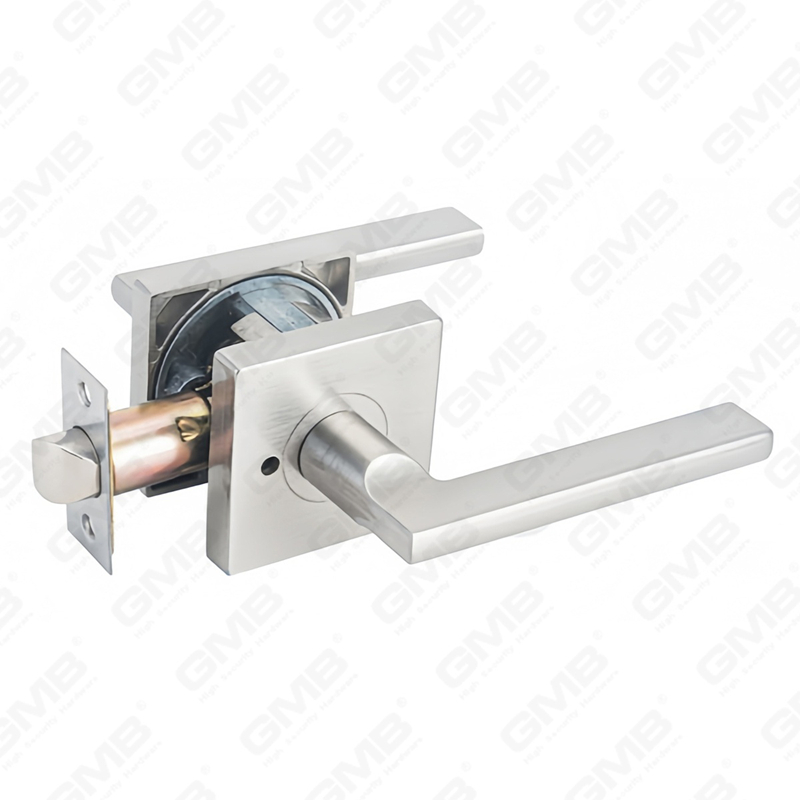

S9270BK
Function: Privacy lock
S9270PS
Function: Passage lock
Definition of door opening direction
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
Finish Code
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
