ANSI UL Standard Zinc Alloy/Aluminum Interior Door Lockset Tubular Commercial Cylindrical Security Handle Lever Lock (9167)
| Quantity: | |
|---|---|
-
9167
9167 Steel rosette+SS cover,exposed screws or concealed screws

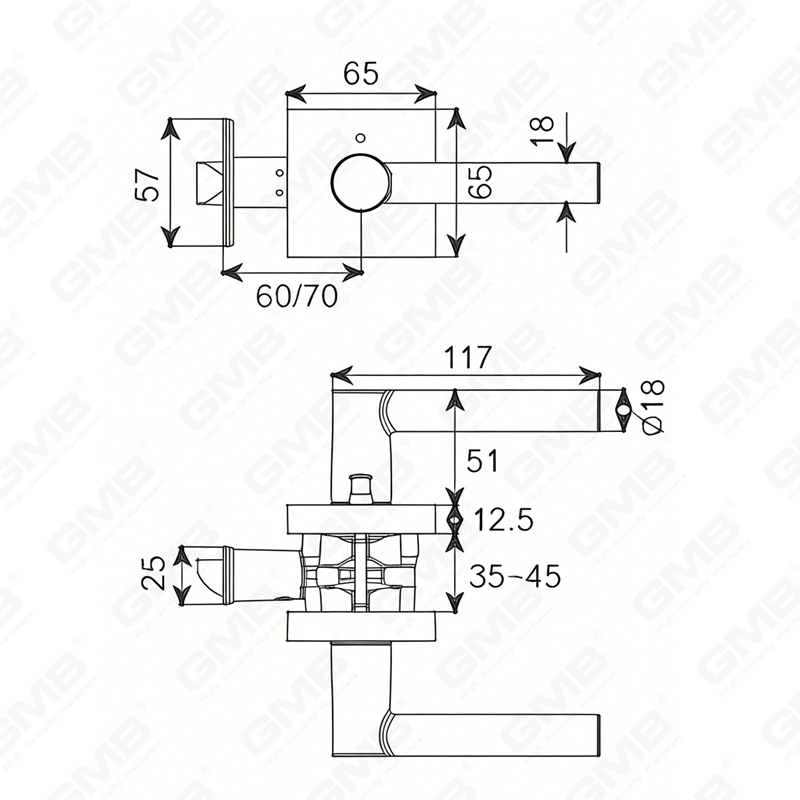

F9167 Zinc alloy square rosette,exposed screws

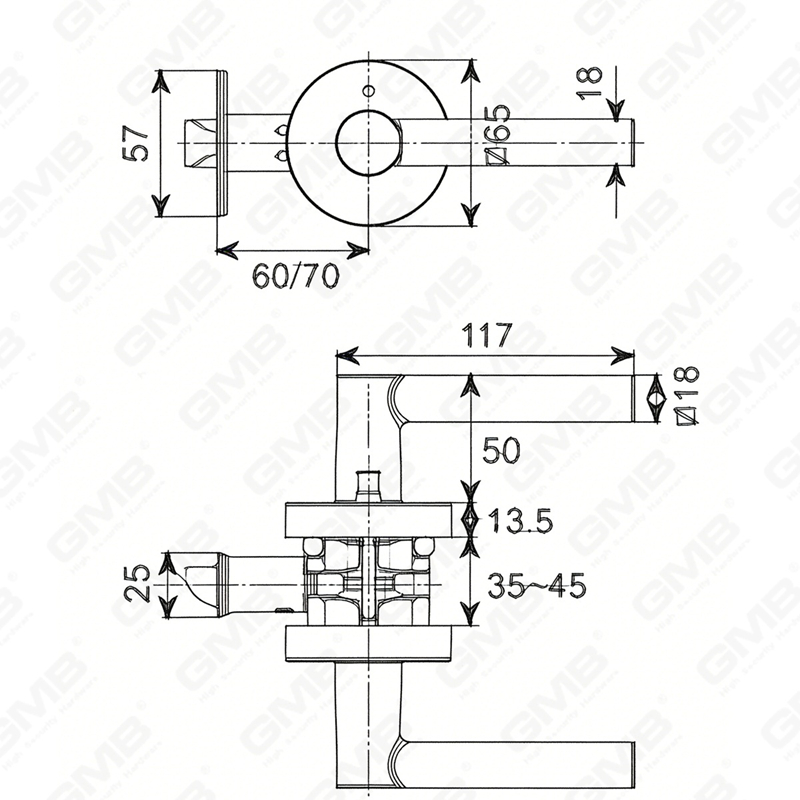

Y9167 Zinc alloy round rosette,exposed screws
S9167 Zinc alloy square rosette,concealed screws
R9167 Zinc alloy round rosette,concealed screws
S9267 Aluminum square rosette,concealed screws
R9267 Aluminum round rosette,concealed screws
Function: Privacy / Passage / Dummy
Material: Zinc alloy
Finish: Polished brass / Antique copper / Antique brass / Satin nickel / Satin chrome / Chrome / ORB / Antique nickel / Satin Graphite / Matte Black
Standard door thickness: 35-45mm
Special door thickness: 45-50mm
Suitable for: Wooden doors and steel doors

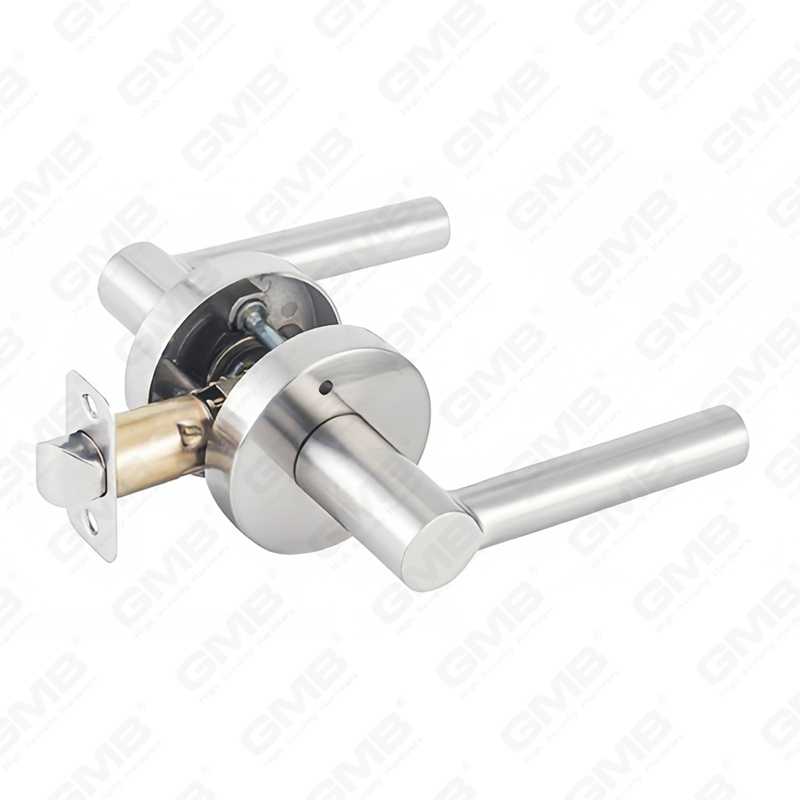

Y9167BK
Function: Privacy lock
Y9167PS
Function: Passage lock

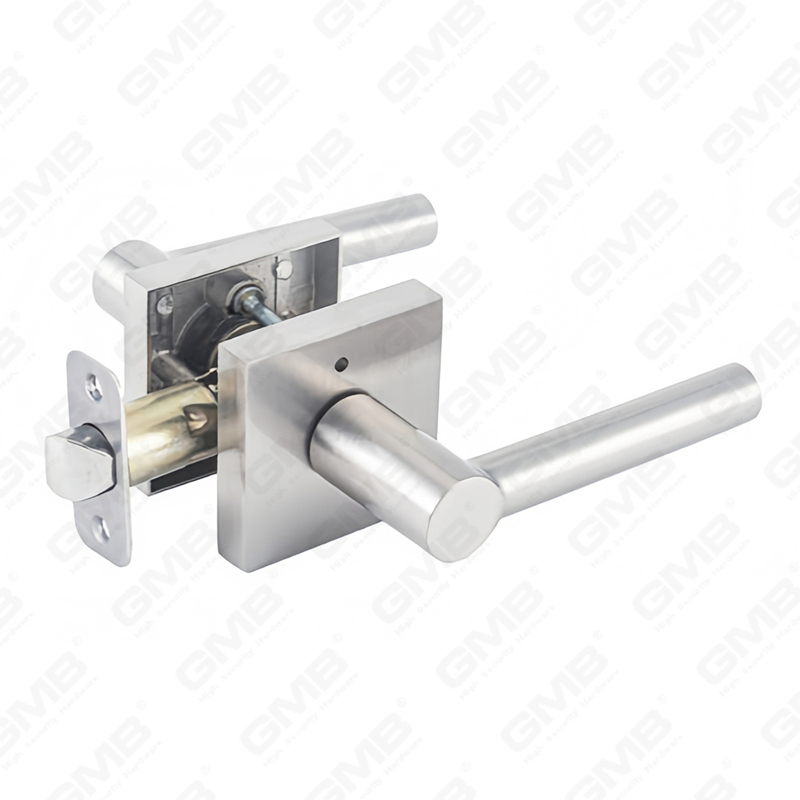

F9167BK
Function: Privacy lock

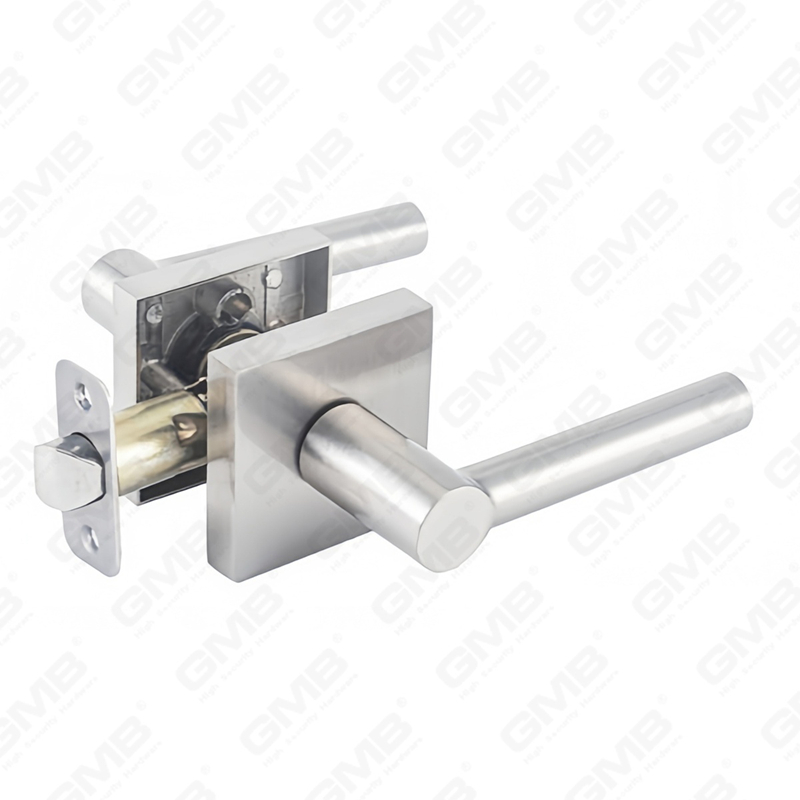

F9167PS
Function: Passage lock
Definition of door opening direction
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
Finish Code
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
