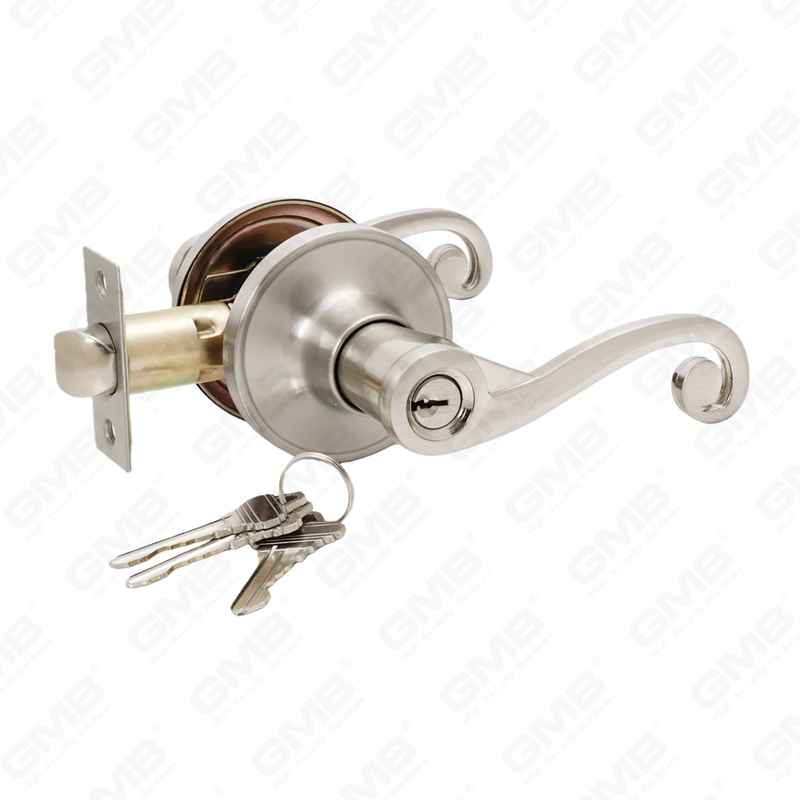

ANSI UL Standard Zinc Alloy Aluminum Interior Door Lockset Duty Tubular Commercial Security Handle Lever Lock (8001)
| Quantity: | |
|---|---|
-
8001
Product Description
| Normal Duty Tubular Lever Set Series |
| Meets with ANSI A156.2 Grade 3 |
| Exceeds 200,000 cycles |
| Material: Zinc Alloy / Aluminum |

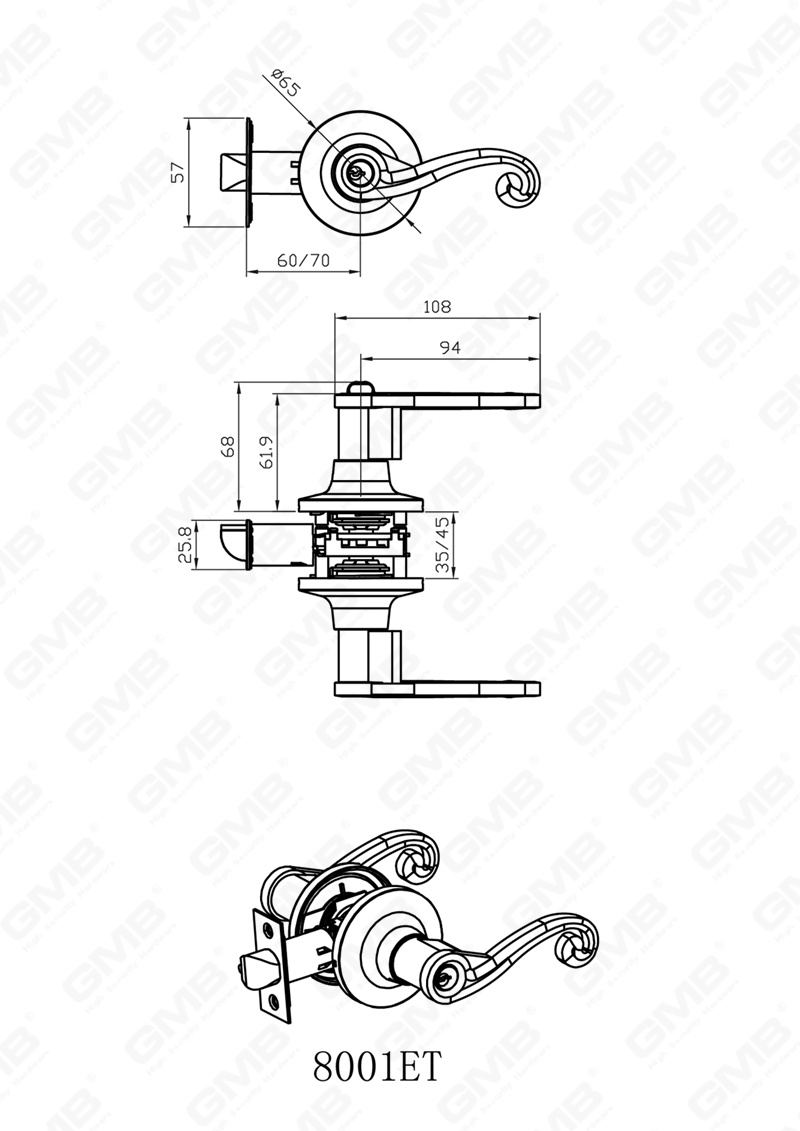

| Door Prep: Cross Bore 2-1/8"(54mm), Edge Bore 1"(25mm), Latch face 1"x2-1/4" (25x57mm) |
| Door Thickness: Fit doors 35mm - 50mm |
| Backset: Adjustable 2-3/8" (60mm) or 2-3/4"(70mm) |
| Latch: 1/2"throw dead latch and spring latch |
| 6 ways latch (fits 2-3/8" and 2-3/4" backset latch bolt + square corner & 1/4" radius latch plate with re-changeable type + square & radius strike plate, both required |
| Handing: Completely reversible |
| Faceplate: Changeable Square corner 1"x2-1/4"(25x57mm) standard, radius corner also available. |
| Strike: Full lip D-shape 1-3/4" x 2-1/4"(44x57mm) square standard, radius corner also available |
| Finish: Polished Brass, Antique Copper, Antique Brass, Satin Nickel, Satin Chrome, Chrome Plated, ORB, Antique Nickel, Satin Graphite, Matte Black |
| Function: Entrance / Storeroom / Privacy / Passage / Dummy |

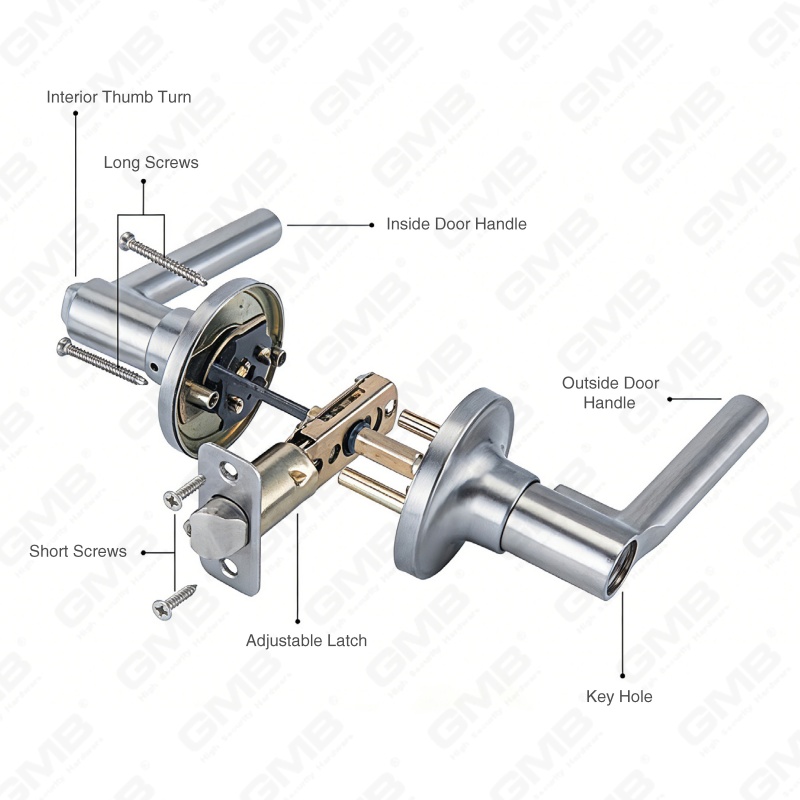

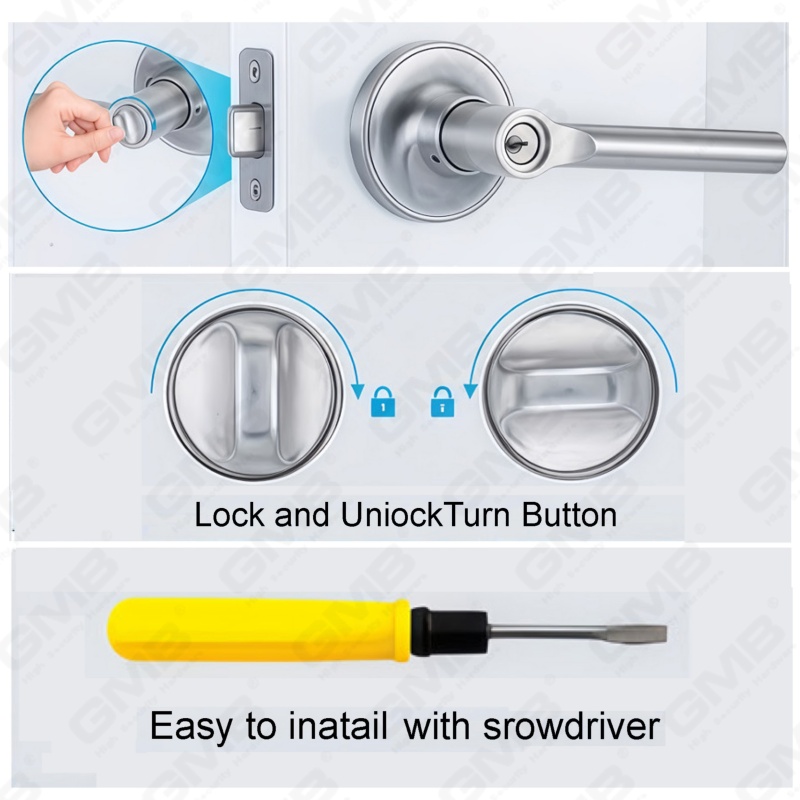

Lock and Unlock Turn Button
Easy to install with screwdriver
Left Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Left Positioned Rotation Shaft.
Right Open
Standing Outside The Door By Facing The Door. Opening Direction Of The Door With Right Positioned Rotation Shaft.
Double-Door
With Two doors In On Door Frame.
| Door lock Function Available | |
| Code | Description |
| ET | Entrance function |
| BK | Privacy(privacy)function |
| PS | Passage function |
| DL | Dummy function |
| ST | Storeroom(hotel)function |
| BL | Privacy(pricacy)with indicator function |
| CK | Construction key function |
| CR | Classroom function |
| DC | Double cylinders function |
| KA | Keyed-alike function |
| MK | Master key function |
