ANSI Standard Duty One Side Deadbolt (7303PB)

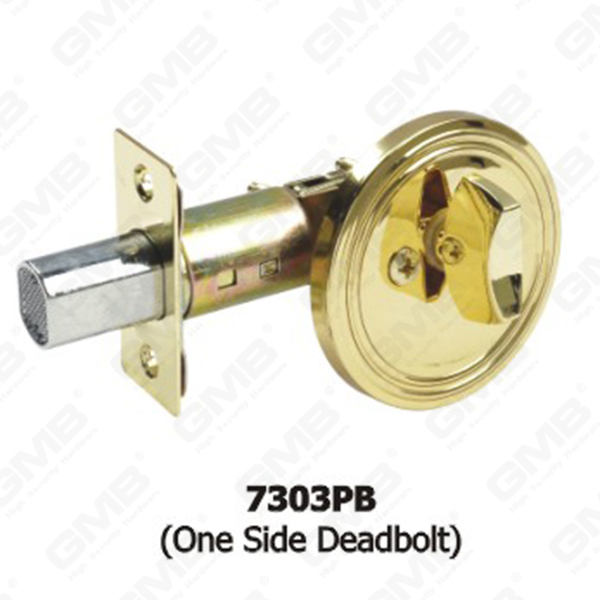

7303PB One Side Deadbolt

Standard Duty Deadbolt- ANSI Grade 3

Special Design for Standard Duty. Meets With ANSI A156.2 Grade 3.

•      Door Prep: Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1"x2-1/4"(25x57mm).

•      Door Thick: Fit doors 1-3/8" (35mm) to 1-3/4" (45mm) thick.

•      Backset: Adjustable 2-3/8"(60mm) or 2-3/4"(70mm).

•      latch: Full 1"(25mm) throw deadbolt with hardened bolt.

•      Cylinder: 5-pin or 6-pln removable core, Schlage C Keyway or Kwikset or YALE or C4 keyway and other optional.

•      Faceplate: Changeable Square corner 1''x2-1/4" (25x57mm) as standard, radius corner optional.

•      Strike: Square 1''x2-1/4" (25x57mm) as standard, radius corner as optional.

Square 1" x 2-3/4" (25x70mm) also available. Radius corner extended strike 1-3/4''x3"(44x76mm).

2-1/2" (64mm) diam wrought stainless steel or brass trim, assembly with steel chassis holds lock firmly provides great strength and durability with zinc chromate plated to resist corrosion.

High precision 5-pln tumbler brass cylinder available with removable core. Qin be construction keyed and master keyed as required.

Adjustable latch with backset 2-3/8" (60mm) or 2-3/4" (70mm).Sturdy steel latch case.

Full 1" (25mm) throw with hardened zinc alloy core against kick-in and saw attack.
