ANSI Grade 2 Heavy Duty Commercial Prviacy Lever Lock Series (4472SC-BK)

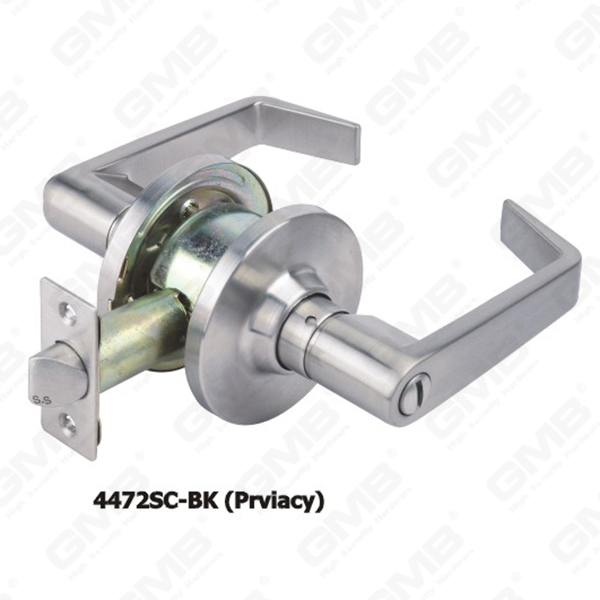

4472SC-BK

Heavy Duty Commercial Lever Series- Grade 2

Special Design for Standard Duty.

Meets with ANSI A156.2 Grade 2.Exceeds 400,000 Cycles.

•      Door Prep: Cross bore 2-1/8" (54mm), Edge bore 1" (25mm), Latch face 1nx2-1/4" (25x57mm).

•      Door Thick: 1-3/8" (35mm) to 1-3/4" (45mm) thickness doors as Standard.

1-   3/8" (35mm) to 2" (50mm) thickness doors by changeable Rosette.

•      Backset: 2-3/4"(70mm) standard. 2-3/8"(60mm) optional.

•      Latch: 1/2" throw dead latch and spring latch.

•      Cylinder: 6-pin removable core, Schlage C Keyway or Kwikset or YALE or C4 keyway and other optional.

•      Faceplate: Square comer 1"x2-1/4" (25x57mm) standard.

•      Strike: T-Shape 1-3/4"x2-3/4" (44x70mm) Square comer standard.

•      Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), HT(Hotel), DM(Dummy).

Wrought stainless steel or brass trim, with steel chassis holds lock firmly with zinc chromate plated to resist corrosion.

Cylindrical body provides great strength and durability.

Full length lever handle with 3/8" return

High precision 6-pin full brass cylinder. Brass key nickel plated can be construction keyed and master keyed as required

3" (75mm) Diameter rose with concealed mounting screw hold lock firmly in place

UL 3 Hour rated rated 1/2" throw dead latch completely reversible. Stainless Steel latch bolt and faceplate.

2-1/4" (57mm) Square standard.

Push In button function
