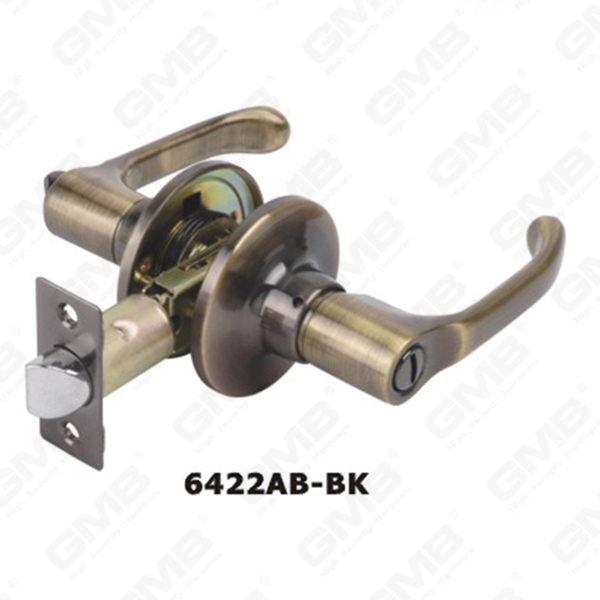

ANSI A156.2 Grade 3. Tubular Lever Lock Square Drive Spindle Tubular Lever Lock (6422AB-BK)

6422AB-BK

Tubular Lever 6 Series -Square Drive Spindle

Special Design for Standard Duty.

Meets with ANSI A156.2 Grade 3. Exceeds 200,000 cycles.

•      Door Prep: Cross bore 2-1/8" (54mm), Edge bore l" (25mm), Latch face l"x2-1/4"(25x57mm).

•      Door Thick: Fit doors 1-3/8"(35mm) to 2"(50mm) thick.

•      Backset: Adjustable 2-3/8"(60mm) or 2-3/4"(70mm).

•      Latch: 1/2" throw dead latch and spring latch, 6 way latch also available.

•      Cylinder: 5-pin or 6-pin removable core, Schlage C Keyway or Kwikset or YALE or C4 keyway and other optional.

•      Faceplate: Changeable Square corner l"x2-1/4"(25x57mm) standard, radius comer also available.

•      strike: Full lip D shape 1-3/4"x2-1/4" (44x57mm) Square standard, radius comer also available.

Square-drive spindle structure Individual spring on each side to prevents lever sag maintain reliability

Extra long Zinc Alloy lever for easy operation
